With Tensioner

Water Pump Belt - 3.0L (4V) with Tensioner

Removal and Installation

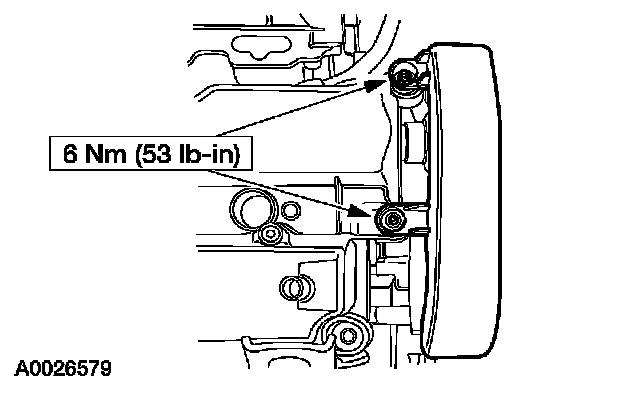

1. Remove the coolant pump belt cover.
^ Remove the retaining nuts.
^ Remove the coolant pump belt cover.

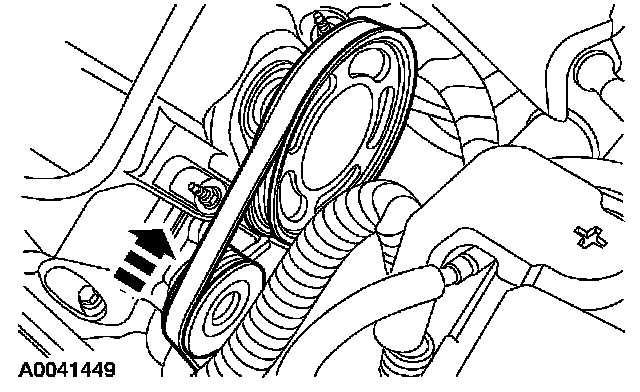

2. Rotate the drive belt tensioner clockwise and remove the coolant pump belt.
3. To install, reverse the removal procedure.
