Test R: The Traction Control Indicator Is Never/Always On
Test R: The Traction Control Indicator Is Never/Always On
PINPOINT TEST R: THE TRACTION CONTROL INDICATOR IS NEVER/ALWAYS ON
R1-R3:

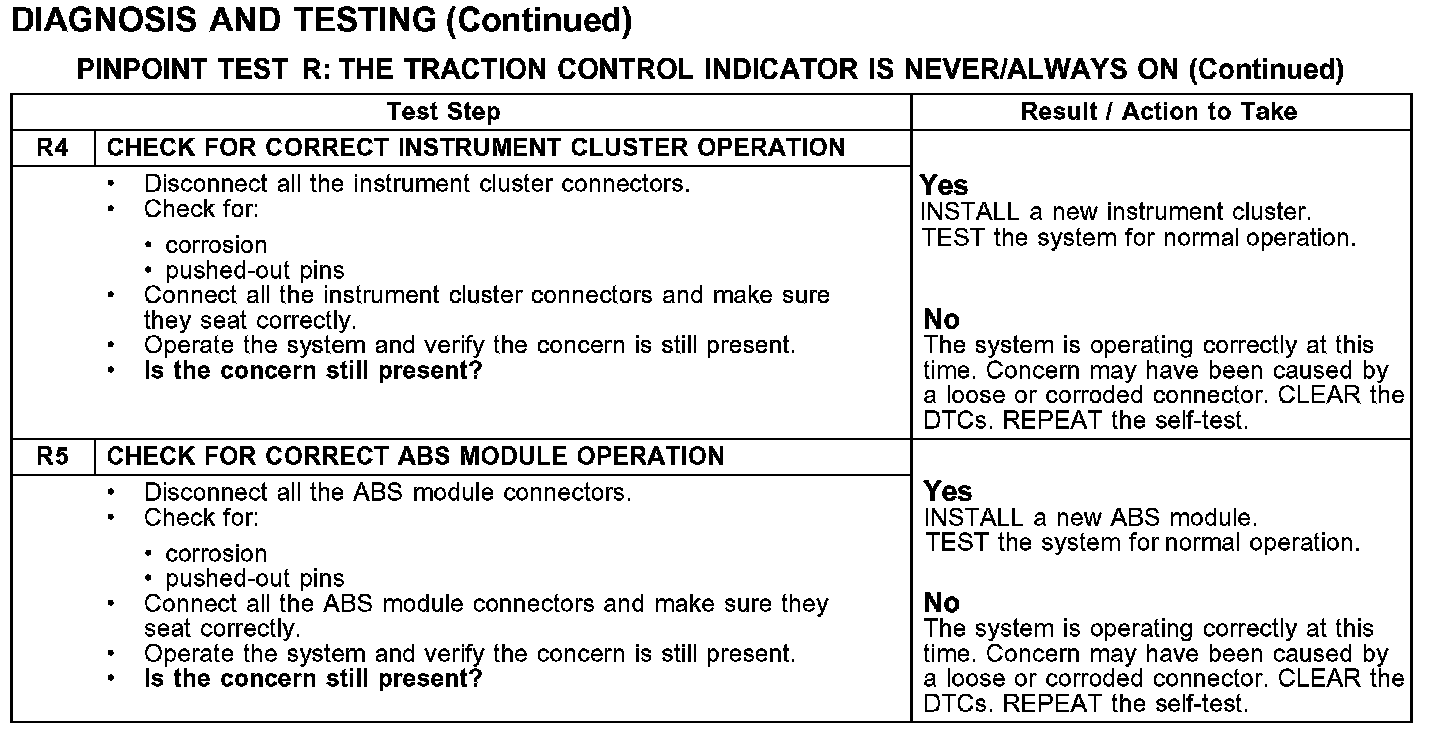

R4-R5:
