Test J: The Brake Warning Indicator Is Never On

PINPOINT TEST J: THE BRAKE WARNING INDICATOR IS NEVER ON

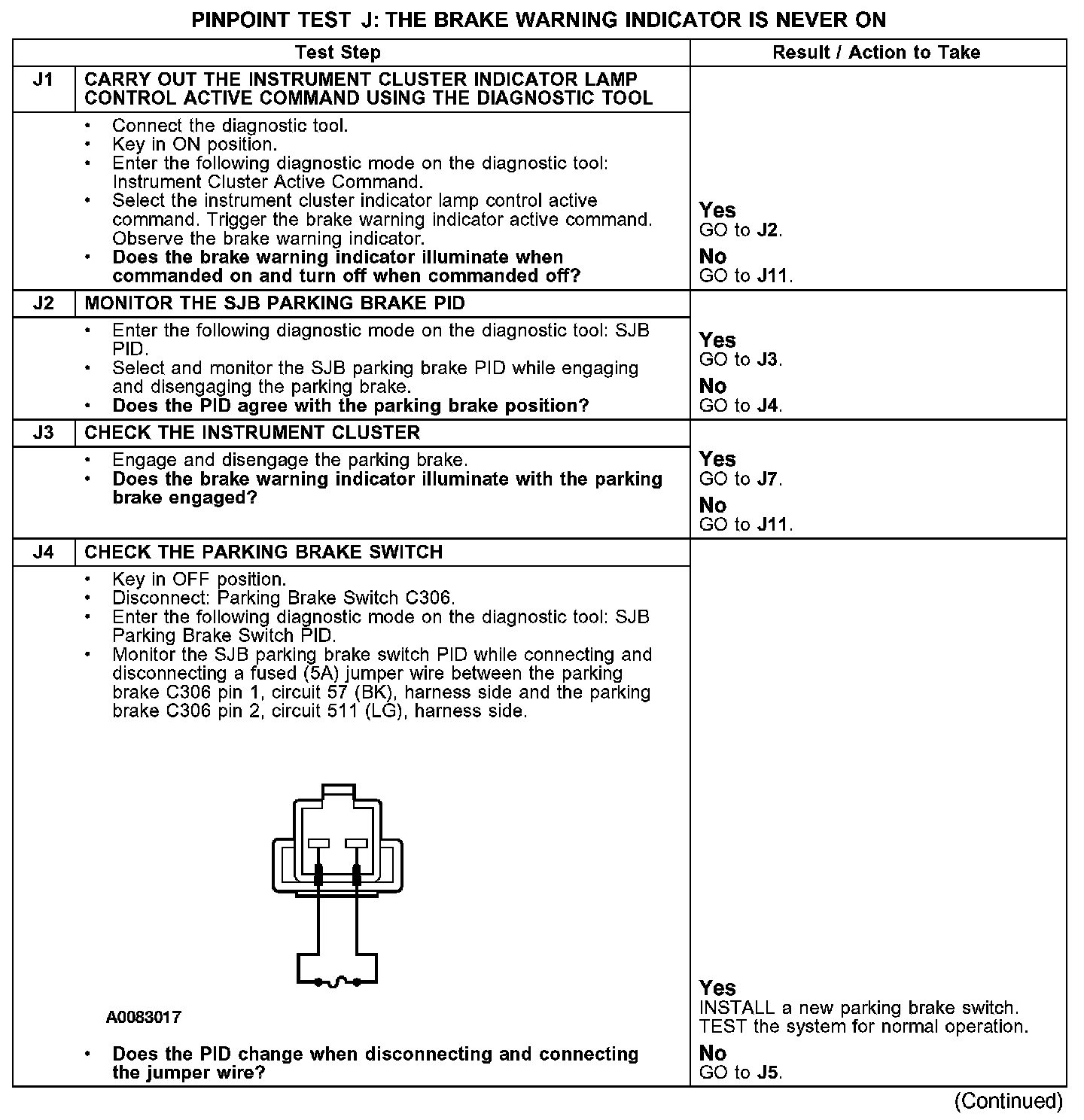

J1-J4:

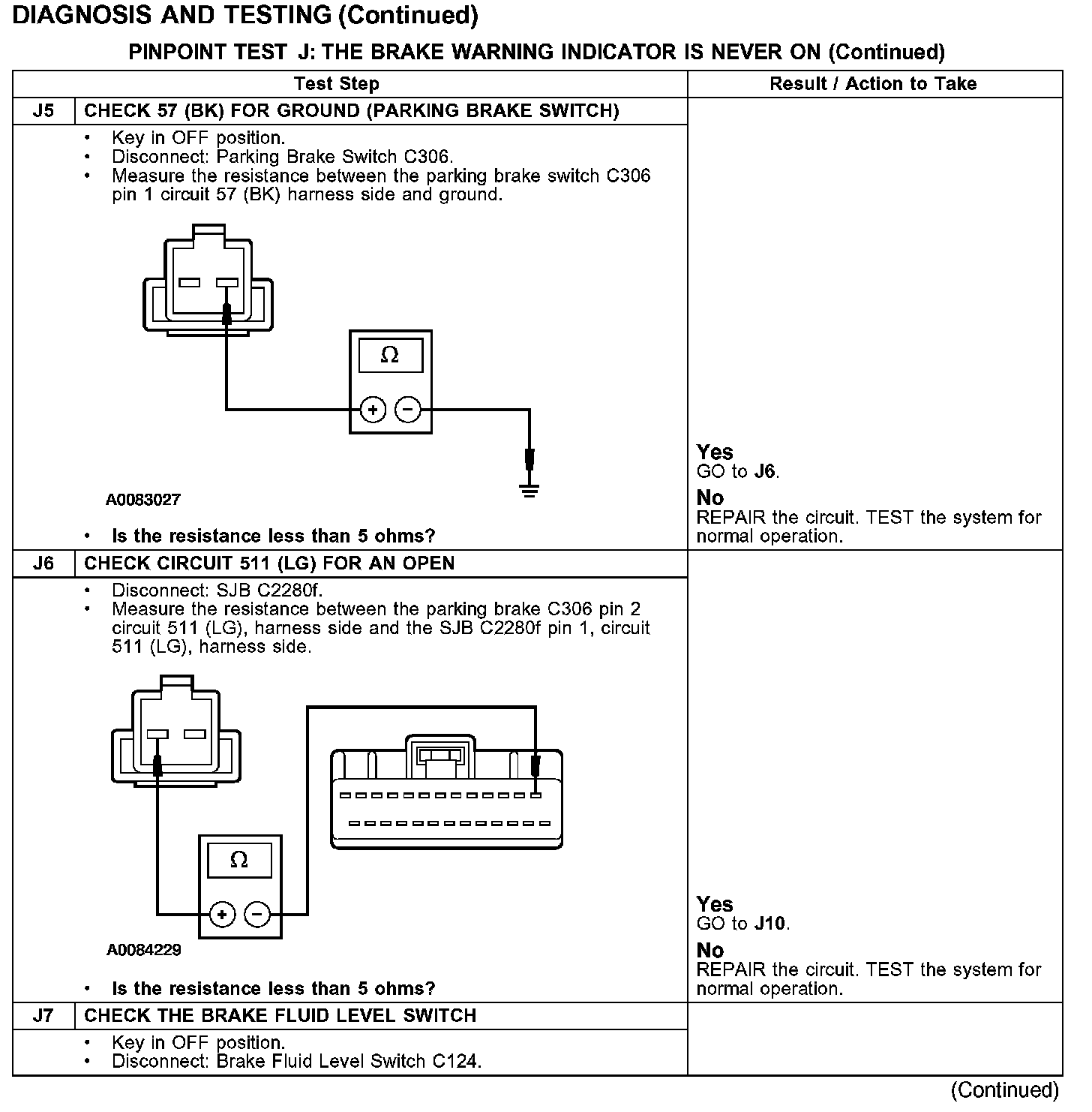

J5-J7:

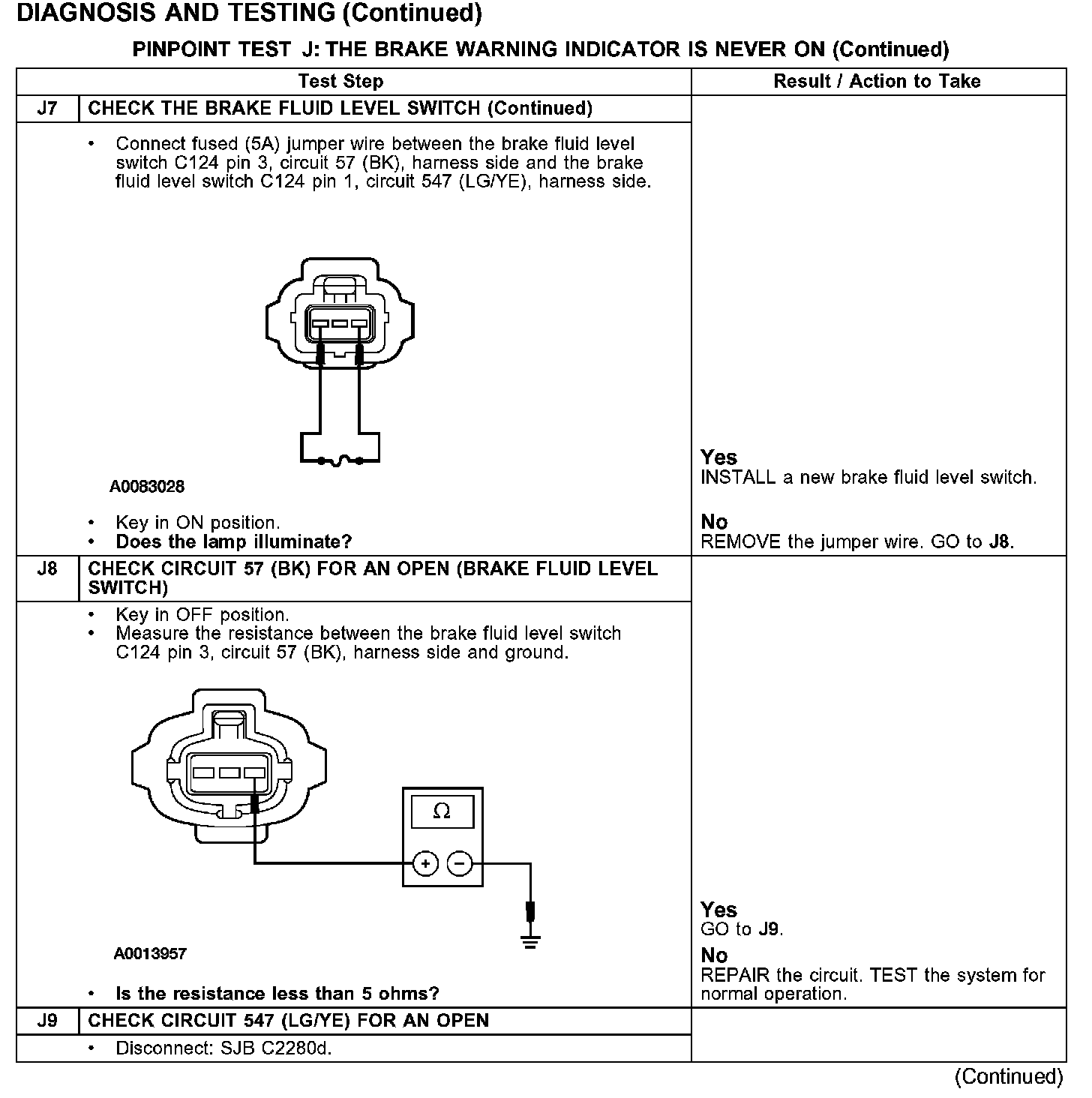

J7-J9:

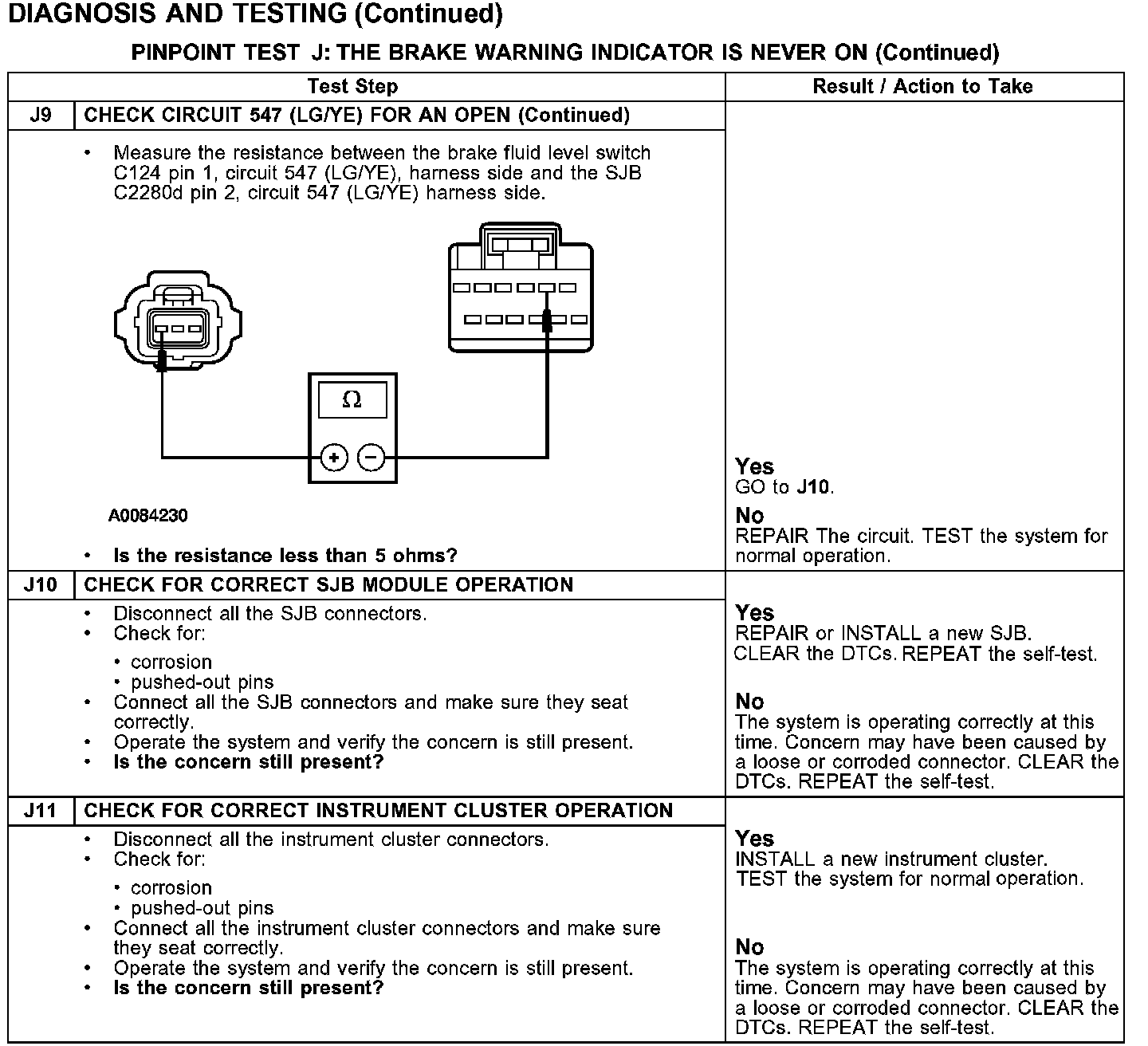

J9-J11:
