Cylinder Head

Cylinder Head Disassembly And Assembly

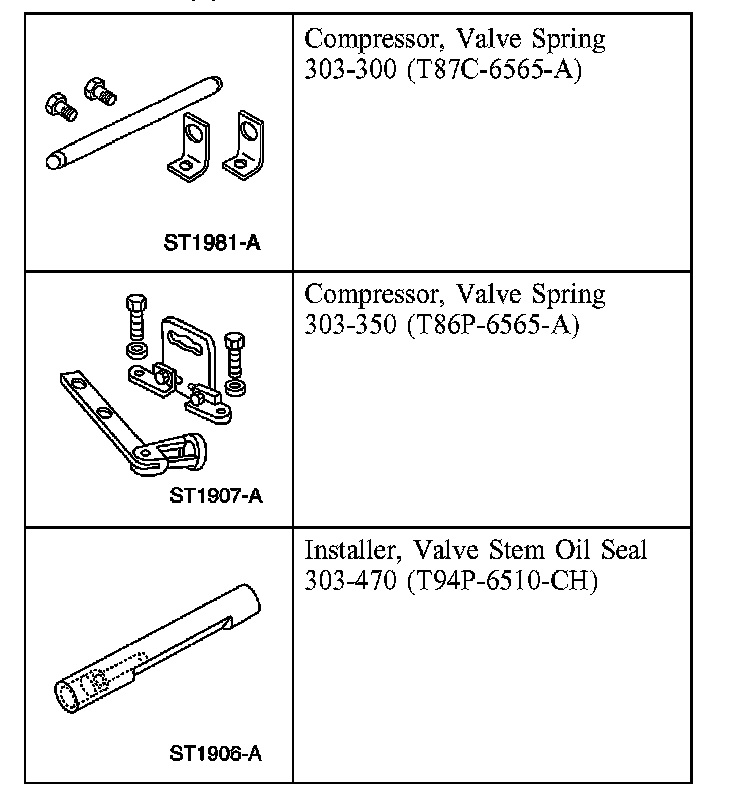

Special Tool(s)

Disassembly

CAUTION: If the components are to be reinstalled, they must be installed in the same position. Mark the components removed for location.





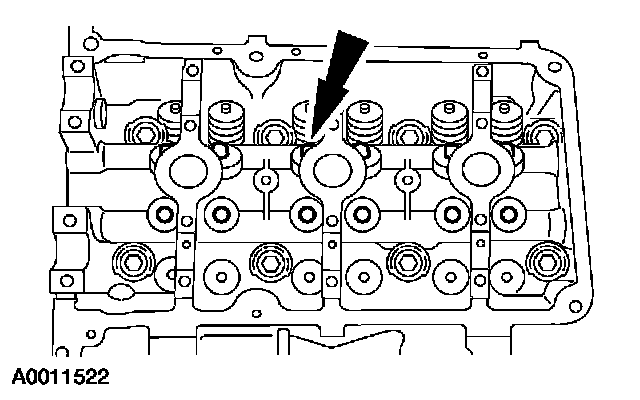

1. Remove the hydraulic lash adjusters.

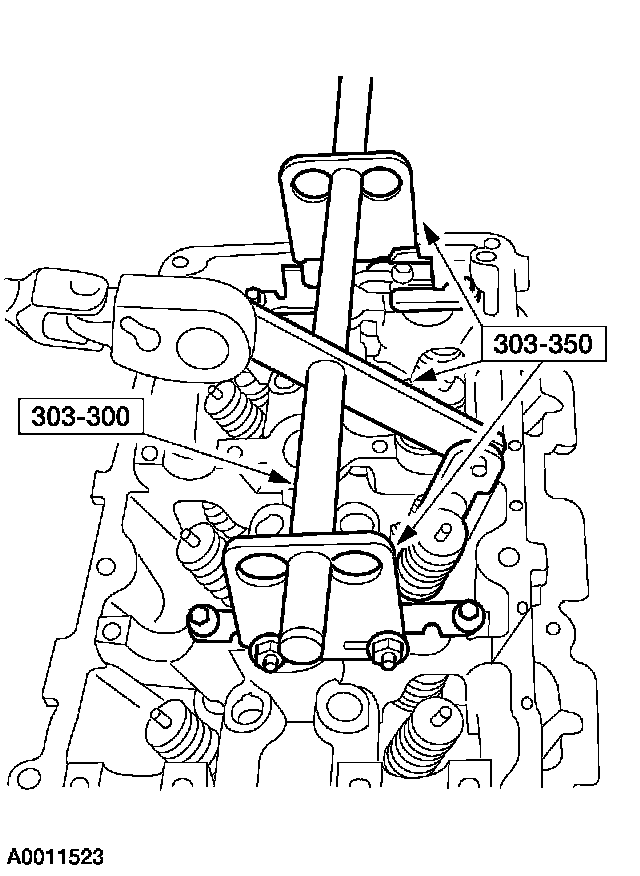

2. Using the special tools, remove the keys, retainer, and spring.
3. Remove the valve from the cylinder head.





4. Remove the valve stem seal.

Assembly

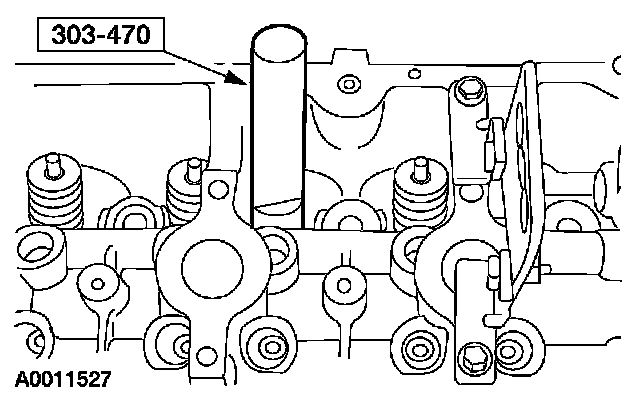

1. Using the special tool, install the valve stem seal.
2. Install the valve.

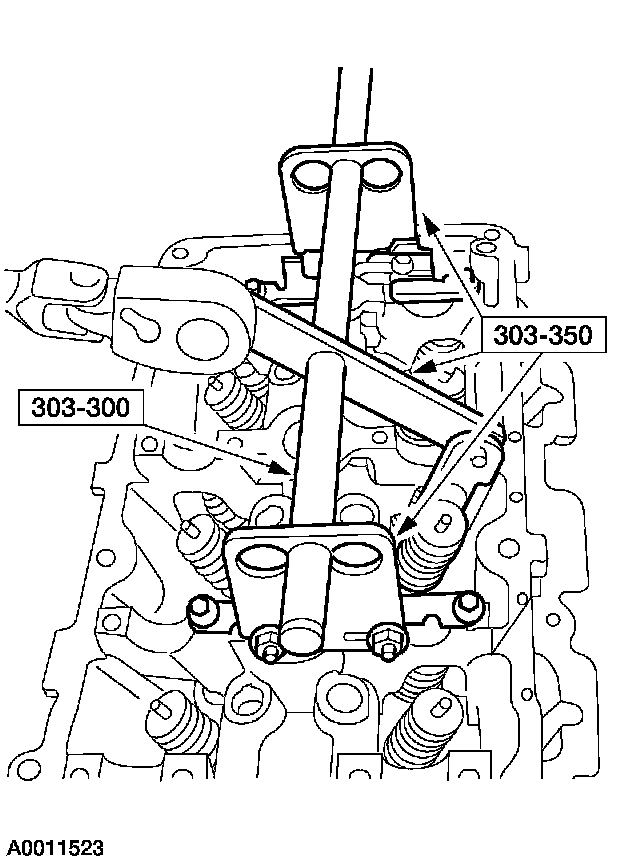

3. Using the special tools, install the valve spring, retainer and key.





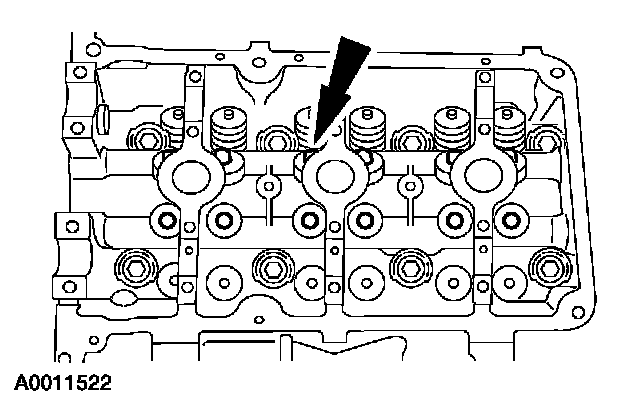

4. Install the hydraulic lash adjuster.
