Oil Pressure Sender: Service and Repair

Oil Pressure Sender

Removal and Installation

1. Raise and support the vehicle. Refer to Maintenance/Service and Repair.
2. Position a drain pan and remove the oil filter.

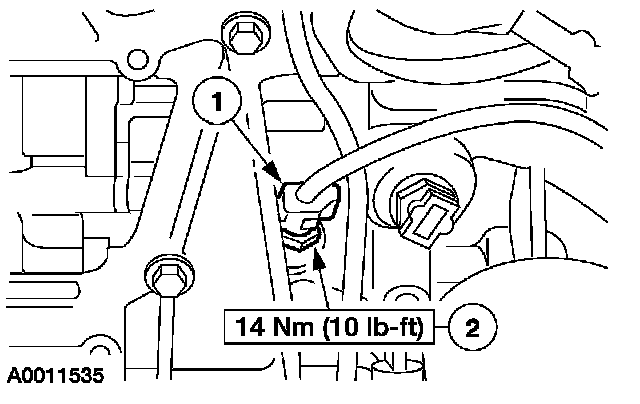

3. NOTE: The A/C compressor has been removed for clarity.





Remove the oil pressure sender.
1 Disconnect the electrical connector.
2 Remove the sender.
4. To install, reverse the removal procedure.
