Engine Support Insulators-Front, RH

Engine Support Insulators-Front, RH

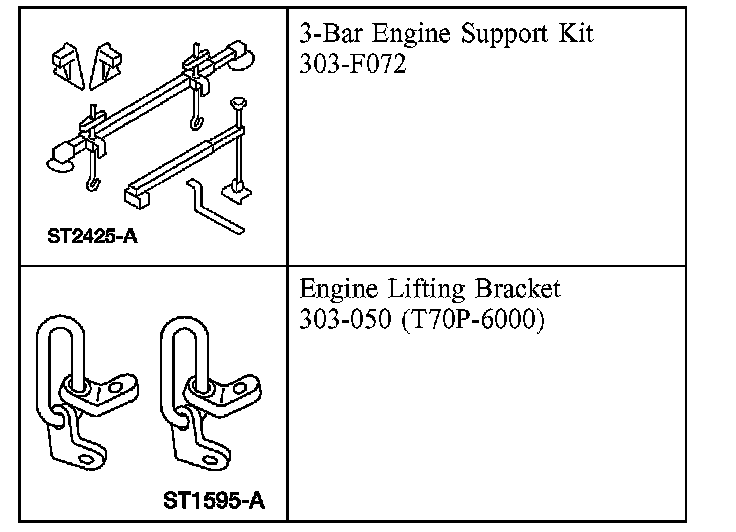

Special Tool(s)

Removal and Installation

1. Raise and support the vehicle. Refer to Maintenance/Service and Repair.
2. Remove the right front wheel.

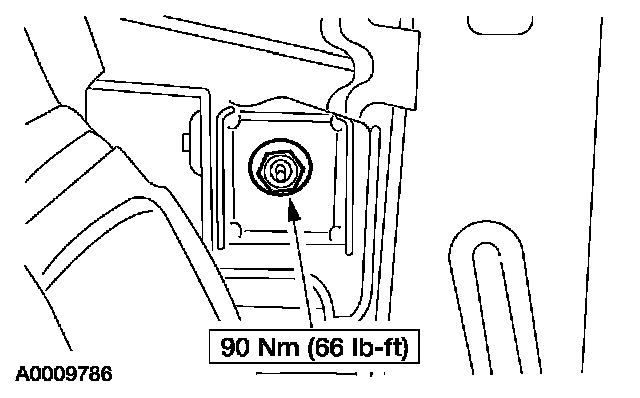

3. Remove the engine support insulator nut.
4. Lower the vehicle.
5. Remove the cowl panel grille.

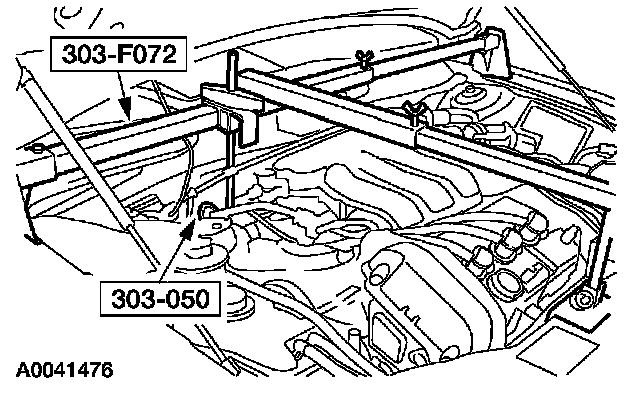

6. Using the special tools, raise the engine to gain clearance to remove the engine support insulator.
7. Raise and support the vehicle. Refer to Maintenance/Service and Repair.

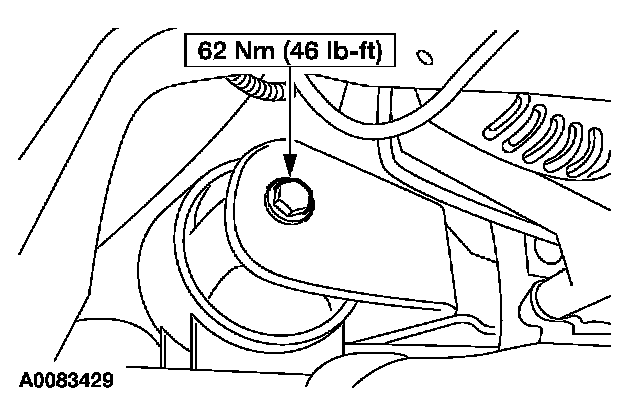

8. Remove the nut and through bolt and the engine support insulator.
9. To install, reverse the removal procedure.
