Accessory Drive Belt Tensioner-Water Pump

Accessory Drive Belt Tensioner Water Pump, 3.0L (4V)

Removal and Installation

1. NOTE: If equipped with belt tensioner.

Remove the water pump belt.

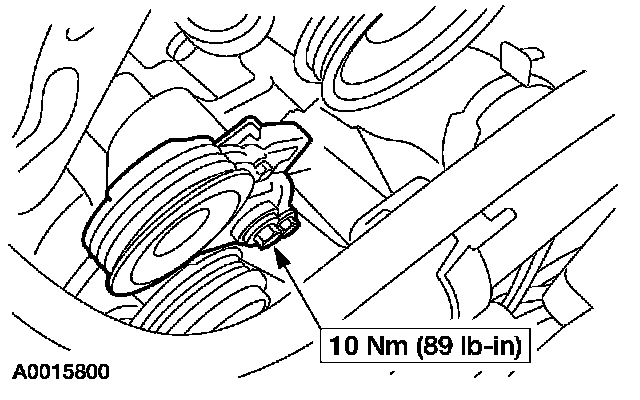

2. Remove the bolt and the belt tensioner.
3. To install, reverse the removal procedure.
