Hydraulic Lash Adjuster

Hydraulic Lash Adjuster

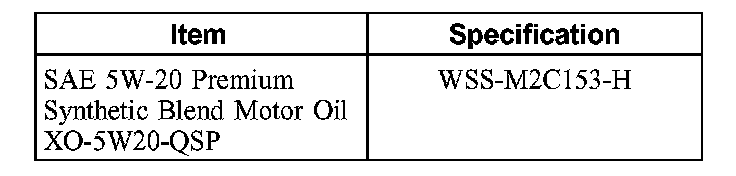

Material

Removal and Installation

1. Remove the camshaft followers.

2. NOTE: Mark the position of the hydraulic lash adjuster to make sure they are assembled in their original positions.

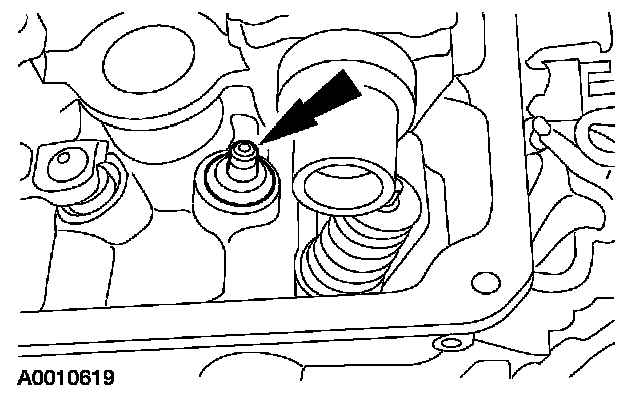

Remove the hydraulic lash adjusters.

3. NOTE: Inspect the hydraulic lash adjusters and install new lash adjusters as necessary.

To install, reverse the removal procedure.
^ Lubricate the hydraulic lash adjusters with clean engine oil.
