Rear Seat Backrest - Full Backrest, Four Door

REAR SEAT BACKREST - FULL BACKREST, FOUR DOOR

Disassembly and Assembly
1. Remove the seat backrest.

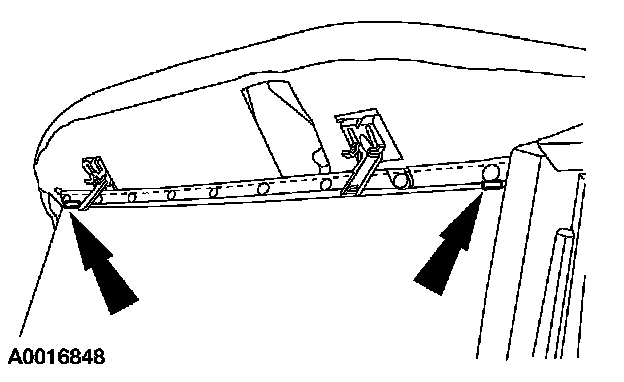

2. Remove the staples, then unclip the snap clip.

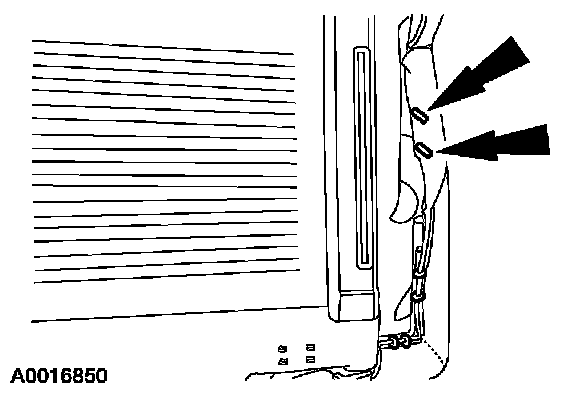

3. Remove the pushpins, then remove the staples (one on each end).

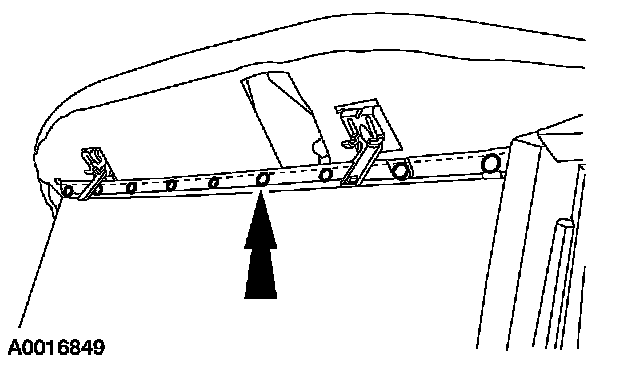

4. Remove the hog rings and staples.

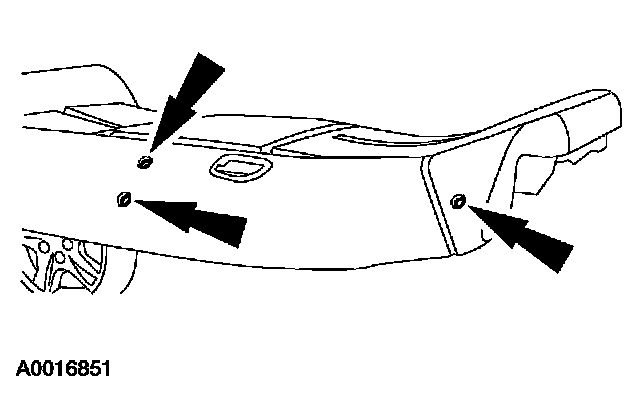

5. Remove the pushpins.
6. Remove the seat backrest pad from the seat backrest.
7. To assemble, reverse the disassembly procedure.
