Front Seat Cushion

FRONT SEAT CUSHION

Disassembly

WARNING:
- Always wear safety glasses when repairing an air bag supplemental restraint system (SRS) vehicle and when handling an air bag module. This will reduce the risk of injury in the event of an accidental deployment.
- Never probe the connectors on the air bag module. Doing so can result in air bag deployment, which can result in personal injury.
- The safety belt pretensioner is a pyrotechnic device. Always wear safety glasses when repairing an air bag equipped vehicle and when handling a safety belt buckle pretensioner or safety belt retractor pretensioner. Never probe a pretensioner electrical connector. Doing so could result in pretensioner or air bag deployment and could result in personal injury.
- To reduce the risk of personal injury, do not use any memory saver devices.

CAUTION:
- It is necessary to rezero the OCS system when a front passenger seat cushion is disassembled, a new trim cover installed, or an OCS service kit is installed. A scan tool is used to trigger the active command to carry out rezeroing of the OCS system.

NOTE:
- Occupant classification sensor (OCS) system components (seat cushion foam pad, bladder with pressure sensor and electronic control unit) are calibrated to each other and are serviced as an assembly. The OCS system components are not to be installed separately. If a new OCS system, OCS system component or seat cushion foam pad are needed, a new OCS system service kit (seat cushion foam pad, bladder with pressure sensor and electronic control unit) must be installed as an assembly.
- To identify between a production OCS system and a service OCS system (OCS service kit) inspect the electronic control unit (ECU) electrical connector. A production OCS system allows the disconnect of the ECU electrical connector. A service OCS system (OCS service kit) has the ECU electrical connector glued to the ECU, it cannot and should not be disconnected or altered.
- If a seat equipped with a seat mounted side air bag and/or a safety belt pretensioner (if equipped) system is being serviced, the supplemental restraint system (SRS) must be depowered.
- The air bag warning lamp illuminates when the RCM fuse is removed and the ignition switch is ON. This is normal operation and does not indicate a supplemental restraint system (SRS) fault.
- The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
- Repair is made by installing a new part only. If the new part does not correct the condition, install the original part and carry out the diagnostic procedure again.
- When installing a new occupant classification sensor (OCS) service kit, refer to the occupant classification sensor procedure in Air Bag Systems.

All seats
1. Remove the affected seat and depower the SRS.

Passenger seat only
2. For disassembly and assembly of the passenger seat cushion, refer to the occupant classification sensor procedure in Air Bag Systems.

Driver seat only
3. Remove the seat backrest.
4. Remove the seat track.







5. Unclip the J-clips and remove the wire harness (if equipped).

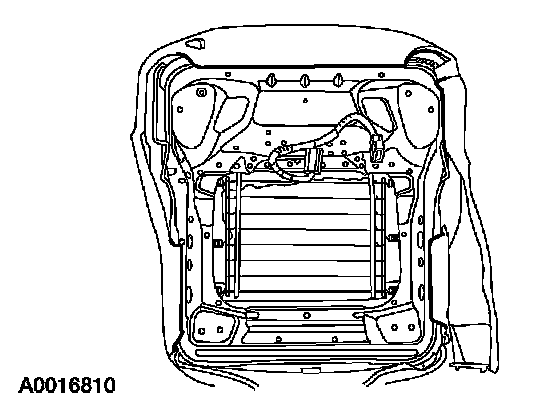

6. Remove the seat cushion frame.

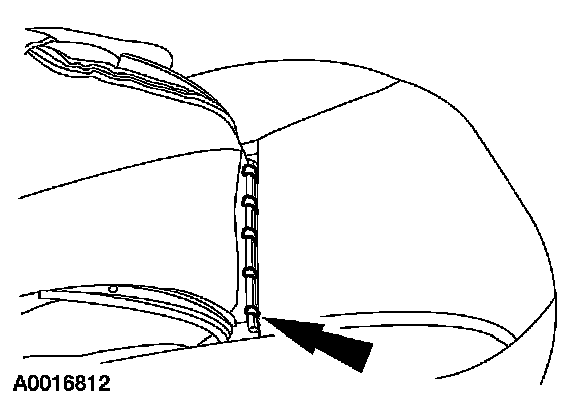

7. Position the upholstery then remove the hog rings (seven per side).

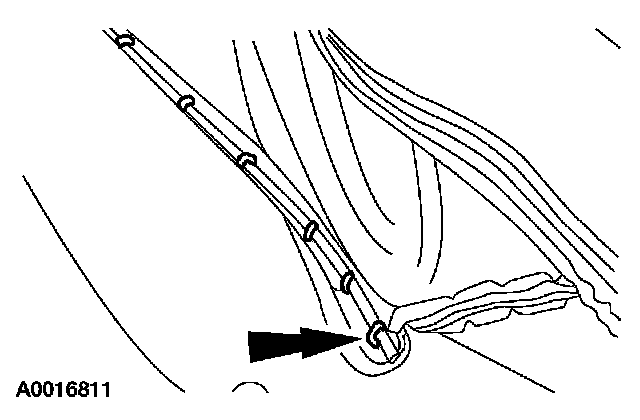

8. Remove the center hog rings.
9. Remove the upholstery from the pad.

Assembly

Passenger seat only
1. For disassembly and assembly of the passenger seat cushion, refer to the occupant classification sensor procedure in Air Bag Systems.

Driver seat only

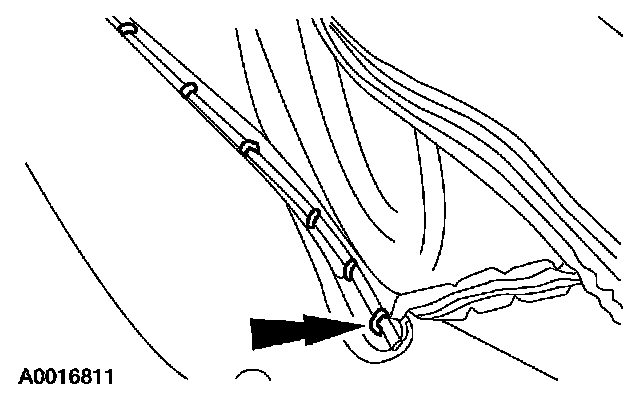

2. Position the upholstery to the pad. Install the center hog rings.

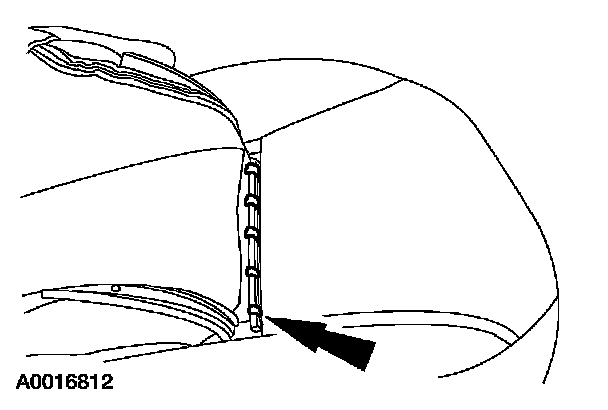

3. Position the upholstery, then install the hog rings (seven per side).

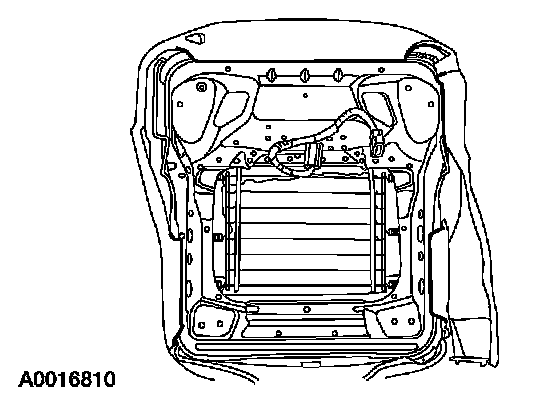

4. Install the seat cushion frame.







5. Fasten the J-clips and install the wire harness (if equipped).
6. Install the seat track.
7. Install the seat backrest.

All seats
8. Install the affected seat and repower the SRS.
9. Check the active restraint system for correct operation.
