Liftgate Window Glass: Service and Repair

LIFTGATE WINDOW GLASS

Removal and Installation
1. Remove the rear wiper motor.

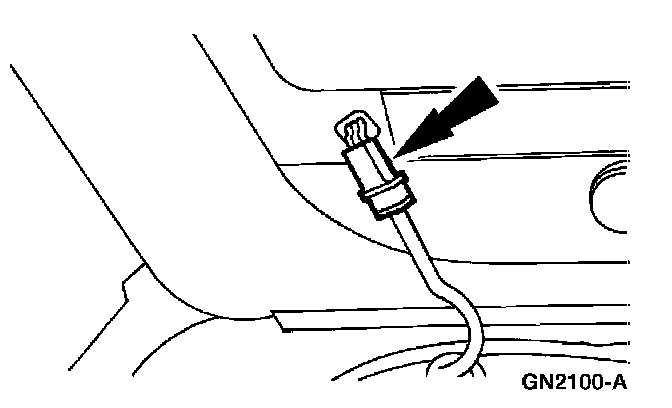

2. Disconnect the 2 rear window defogger electrical connectors.

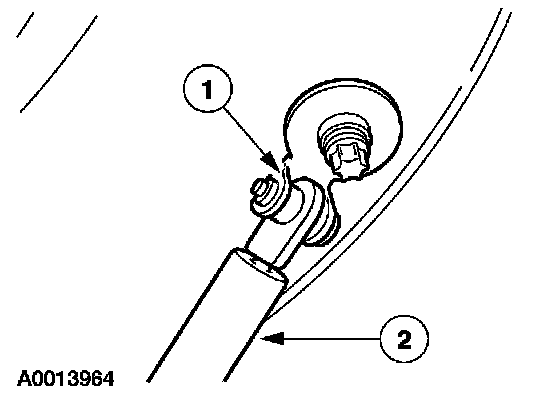

3. Remove the 2 liftgate support cylinders.
1 Remove the 2 E-clips.
2 Remove the 2 liftgate support cylinders.

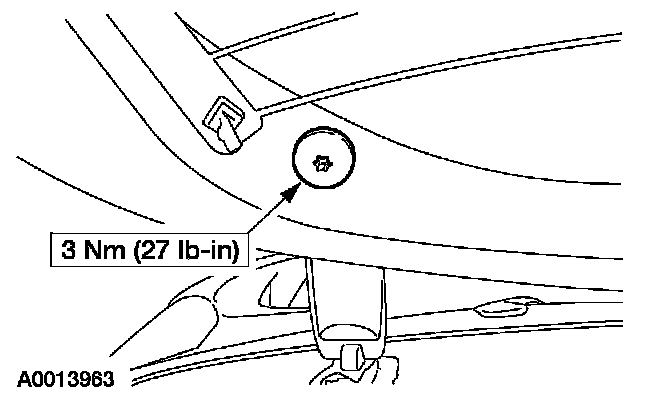

4. Remove the LH and RH nut and liftgate window glass.

5. NOTE: Transfer components as necessary.

To install, reverse the removal procedure.
