Wiper Motor Linkage: Service and Repair

WIPER MOUNTING ARM AND PIVOT SHAFT

Removal and Installation
1. Remove the wiper pivot arms and cowl panel grille.







2. Remove the wiper mounting arm and wiper pivot shaft assembly.

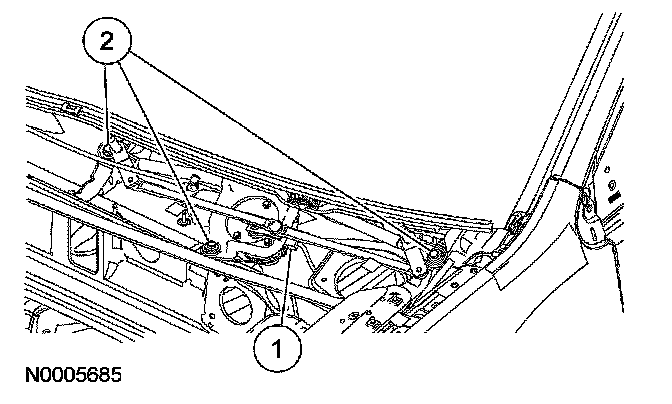

1 Disconnect the electrical connector.
2 Remove the 3 bolts.
- To install, tighten to 8 Nm (71 lb-in).

3. To install, reverse the removal procedure.
- Adjust the wiper pivot arms.
