Fixed Window Glass

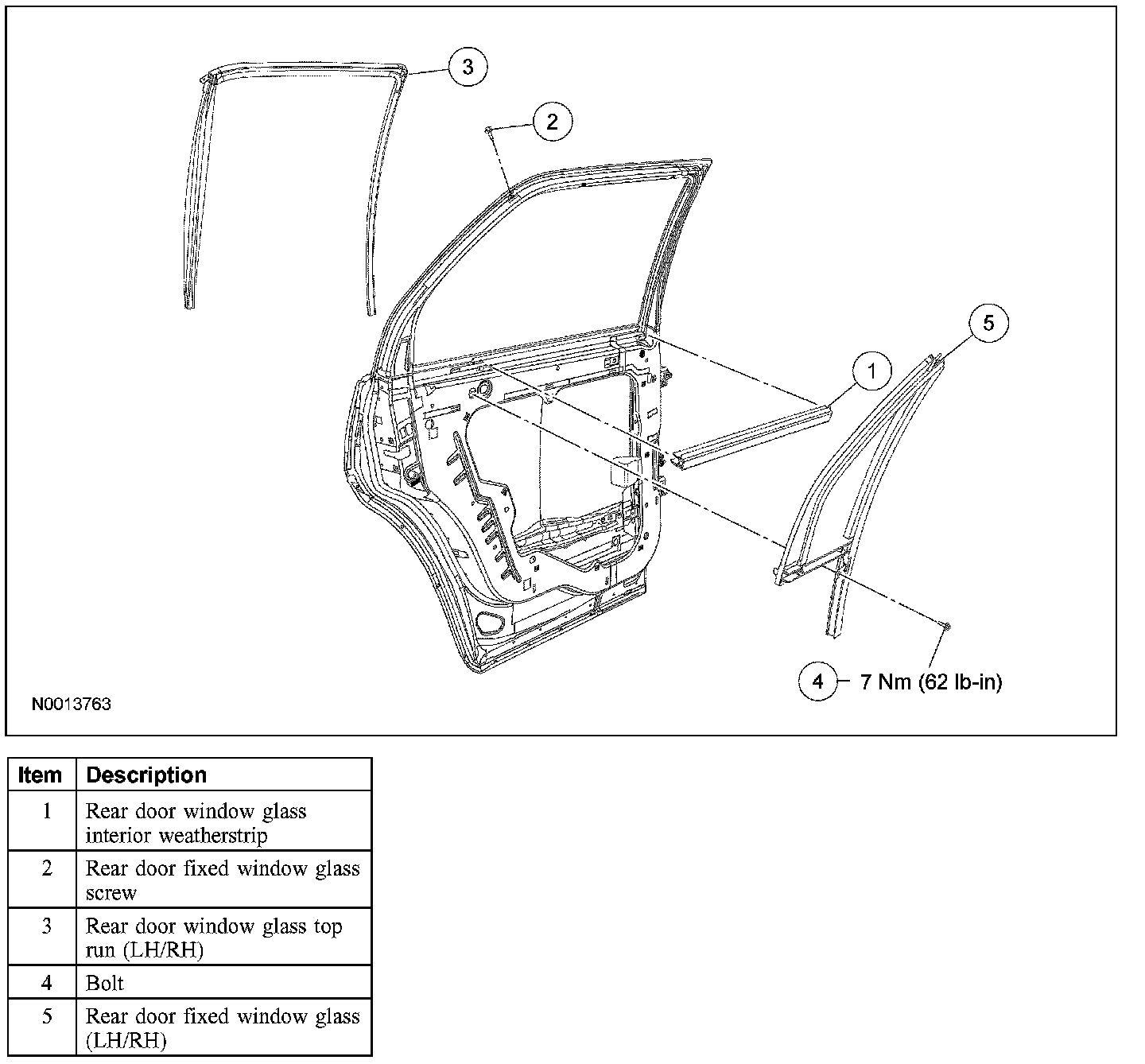

REAR DOOR FIXED WINDOW GLASS







Removal and Installation
1. Remove the rear door trim panel.
2. Remove the rear door window glass.
3. Remove the rear door module.
4. Remove the rear door glass interior weatherstrip.
5. Remove the rear door window glass top run screw.
6. Remove the rear door window glass top run.
7. Remove the rear door fixed window glass bolt.
- To install, tighten to 7 Nm (62 lb-in).

8. Remove the rear door fixed window glass.
9. To install, reverse the removal procedure.
