Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Rear Window Control Switch C701

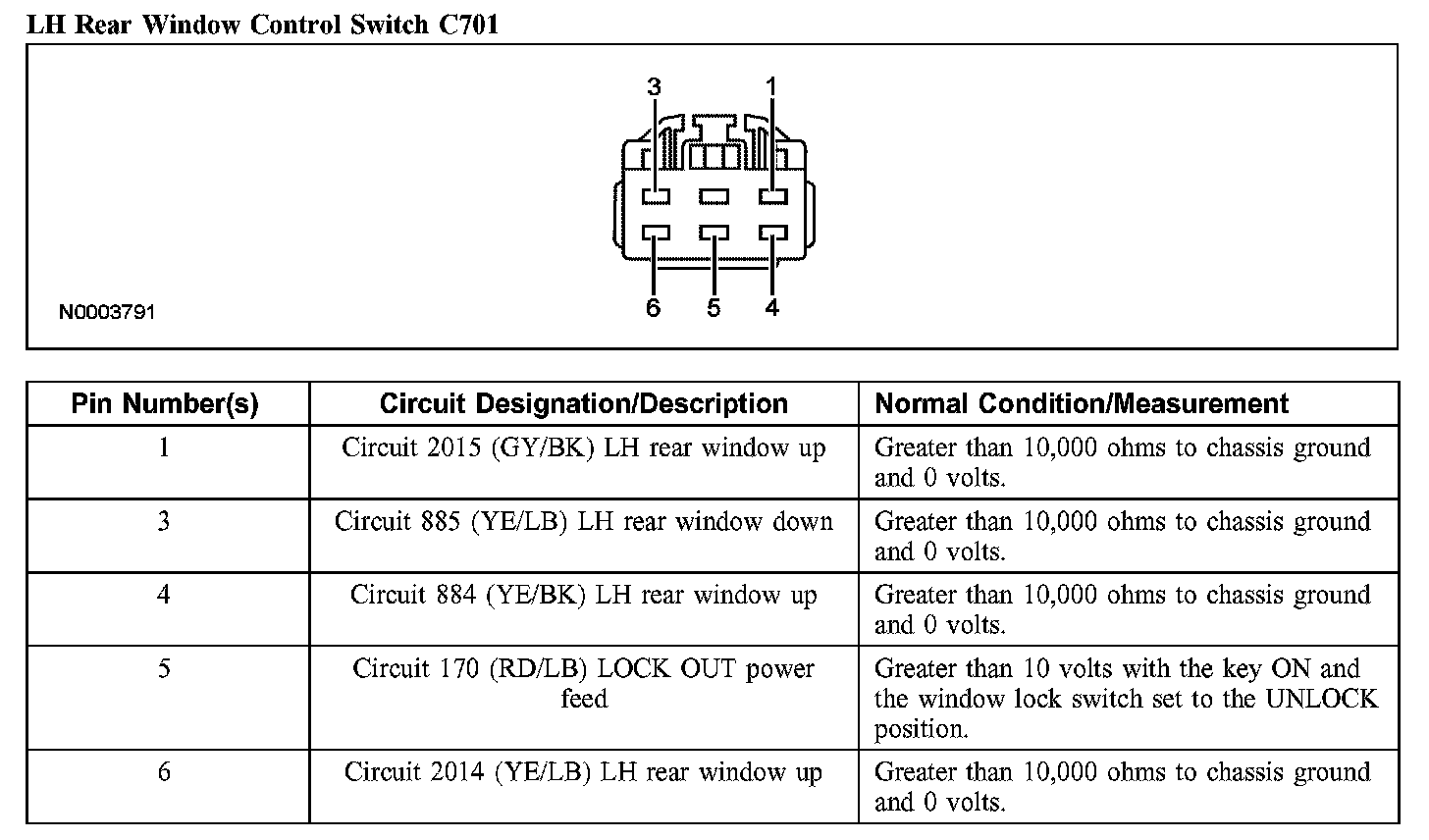

LH Rear Window Control Switch C701

LH Rear Window Control Switch C701:
