Halfshaft Seal-RH

Halfshaft Seal-RH

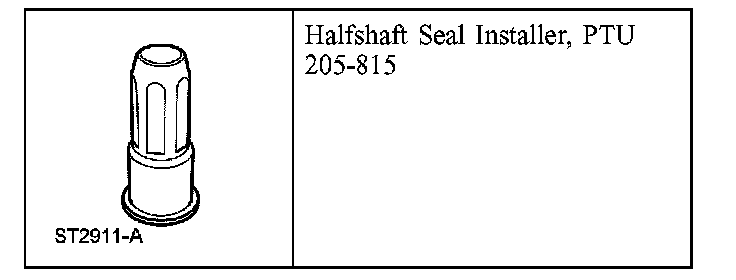

Special Tool(s)

Removal
1. Remove the RH halfshaft.

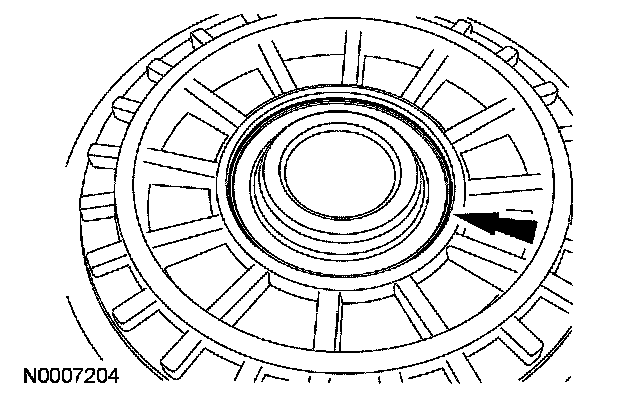

2. Remove and discard the halfshaft seal.

Installation





1. CAUTION: Make sure the halfshaft seal, the halfshaft seal bore and the halfshaft are clean and dry. Do not oil the halfshaft seal or leakage will occur.

NOTE: Always install a new halfshaft seal.

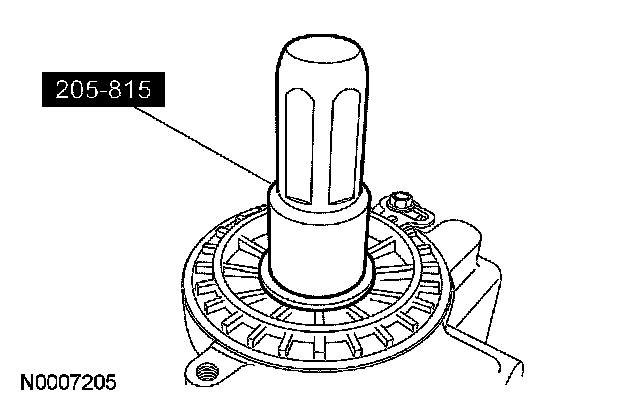

Using the special tool, install a new halfshaft seal.
2. Install the RH halfshaft.
