Active On-Demand Coupling Oil Pump

Active On-Demand Coupling Oil Pump

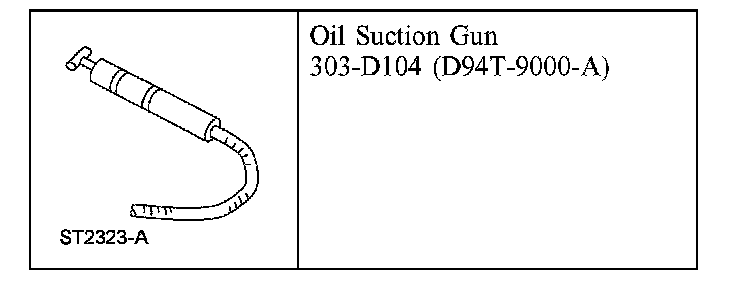

Special Tool(s)

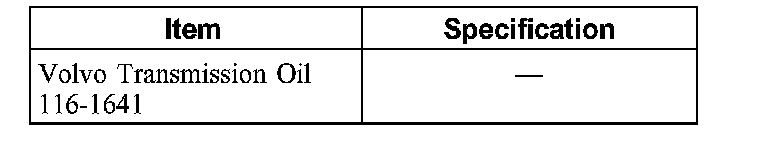

Material

Removal and Installation
1. Remove the drive pinion flange.

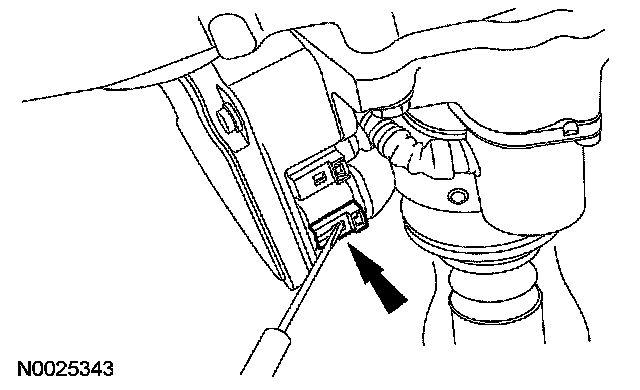

2. Disconnect the active on-demand coupling oil pump electrical connector.
3. Position a drain pan under the active on-demand coupling.

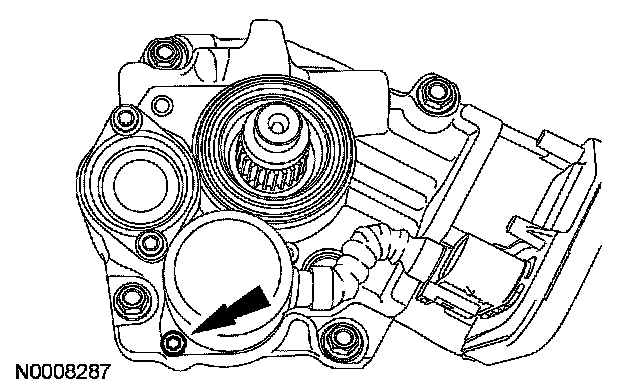

4. Remove the active on-demand coupling oil pump bolts and the complete active on-demand coupling oil pump body (black pump body and silver flange).
^ To install, tighten to 6 Nm (53 inch lbs.)





5. To install, reverse the removal procedure.
^ Always install a new active on-demand coupling oil pump seal.

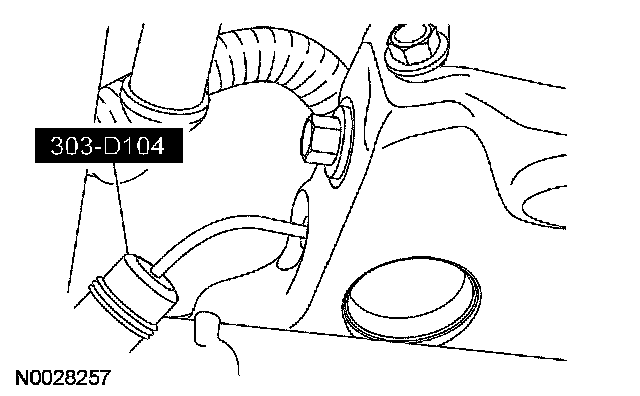

^ Using the special tool, fill the active on-demand coupling. Use the specified fluid and fill to the bottom of the fill hole.
^ Tighten to 35 Nm (26 ft. lbs.).
