Drive Pinion Seal-Inner

Drive Pinion Seal-Inner

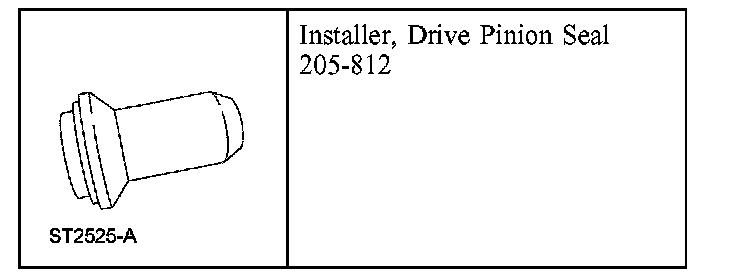

Special Tool(s)

Removal

1. NOTE: The drive pinion inner seal is a double seal assembly.

Remove the active on-demand coupling.

2. CAUTION: The drive pinion seal is a 2-piece design. Remove both pieces.

Remove and discard the drive pinion seal.

Installation





1. CAUTION: If the drive pinion seal becomes misaligned in its bore during installation, install a new drive pinion seal.

Using the special tool, install the drive pinion seal.
2. Install the active on-demand coupling.
