Scan Tool Testing and Procedures

Diagnostic Parameters Identification (PID) Chart

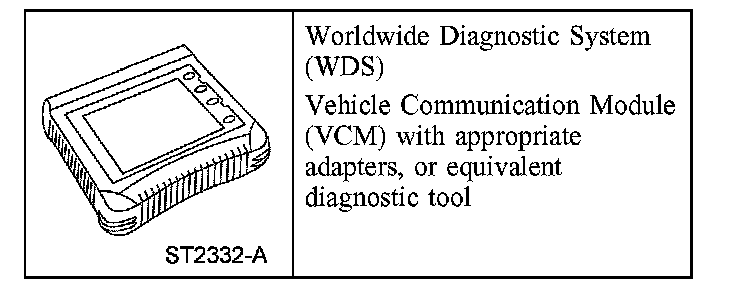

Special Tool(s)

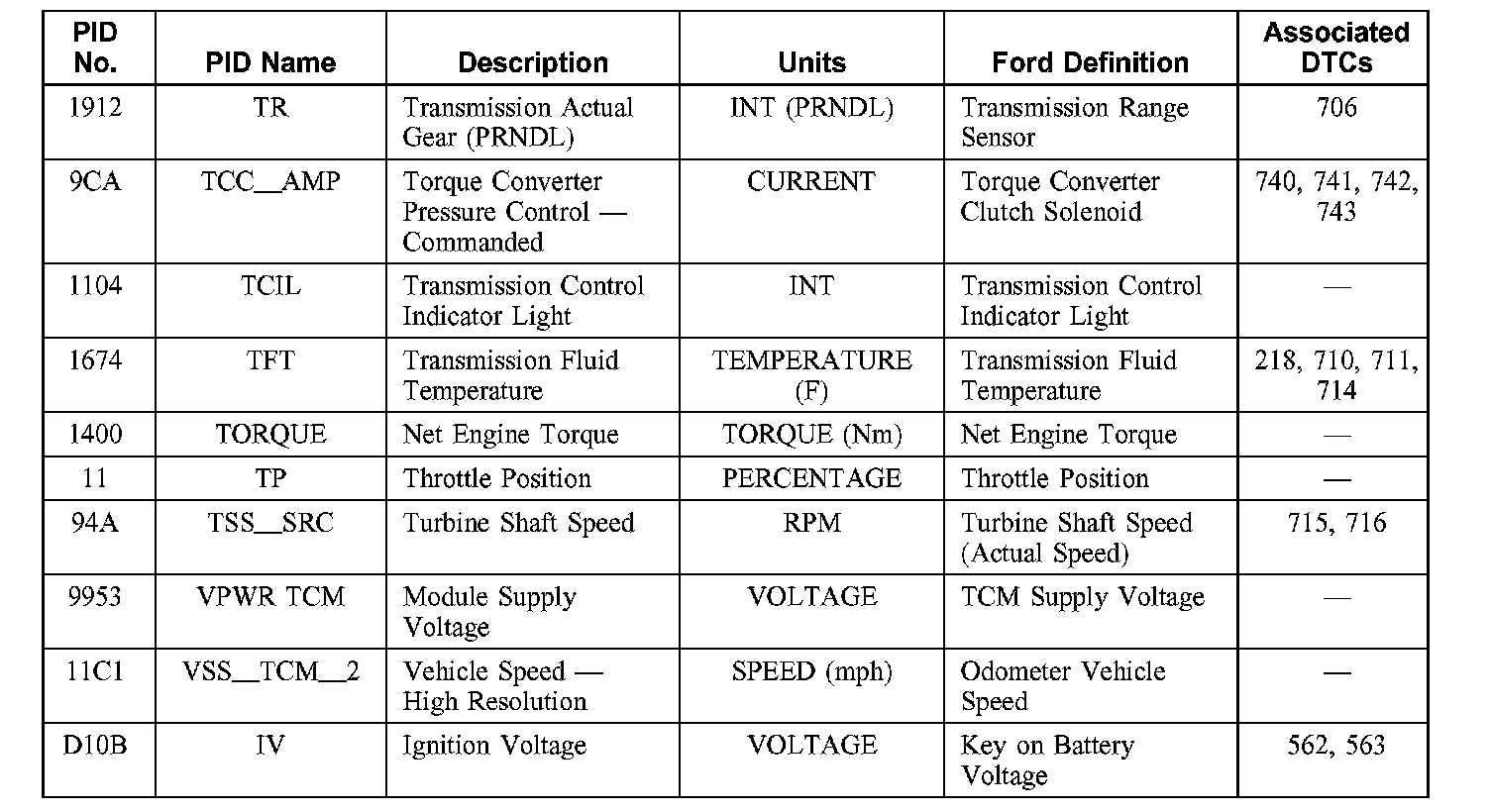

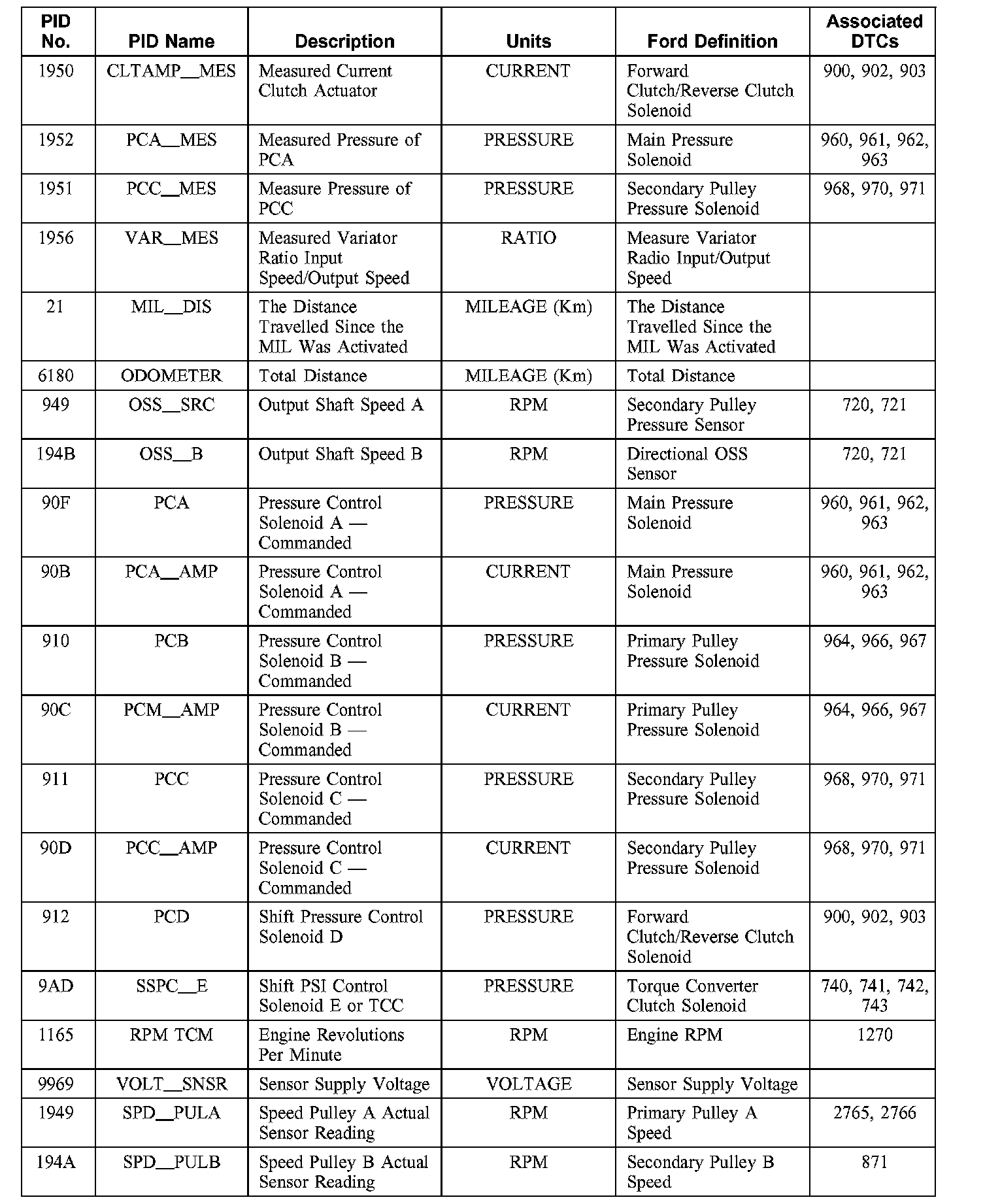

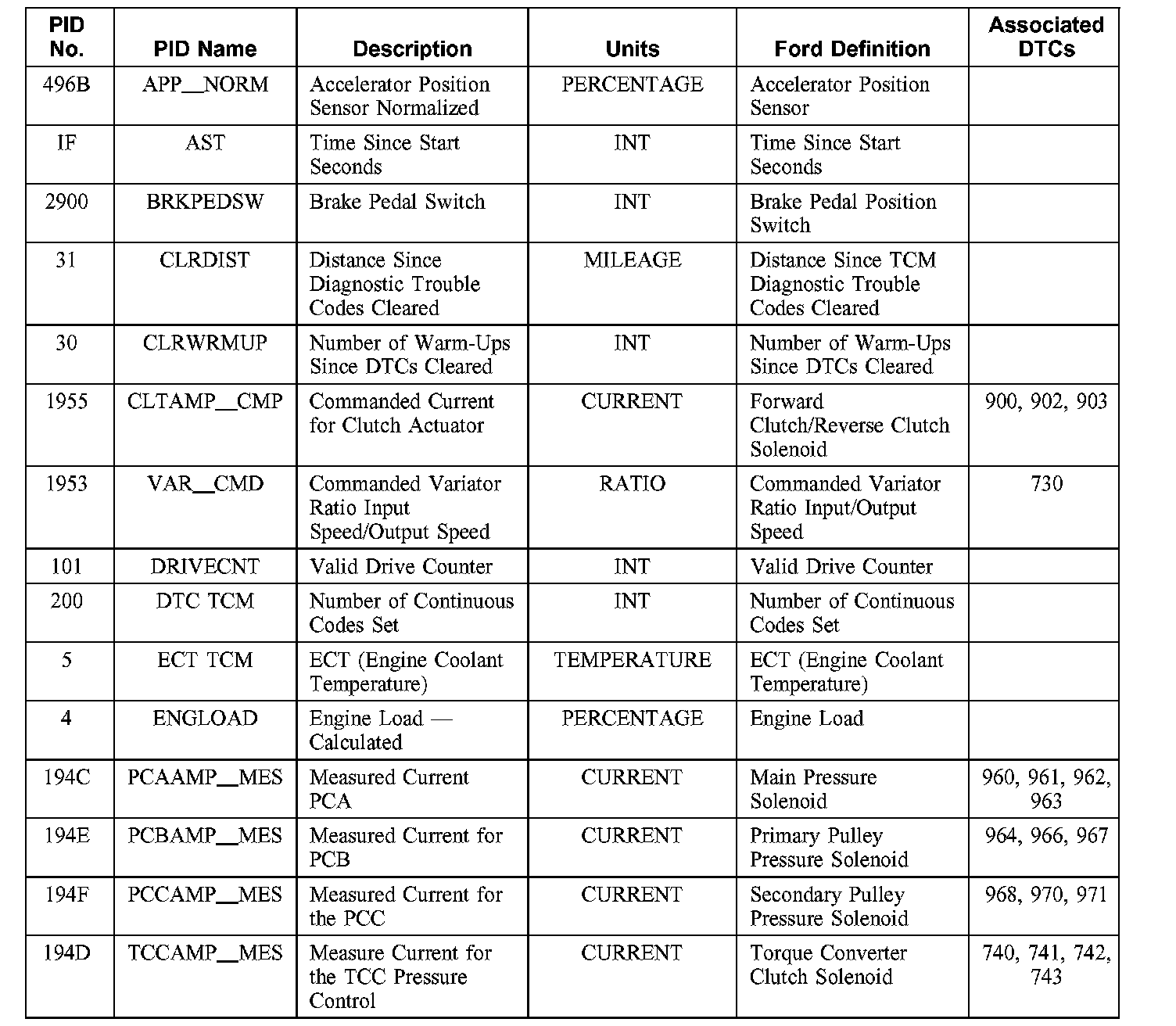

Diagnostic PID Chart
