Test H: Transmission Control Module Signal

PINPOINT TEST H: TRANSMISSION CONTROL MODULE SIGNAL

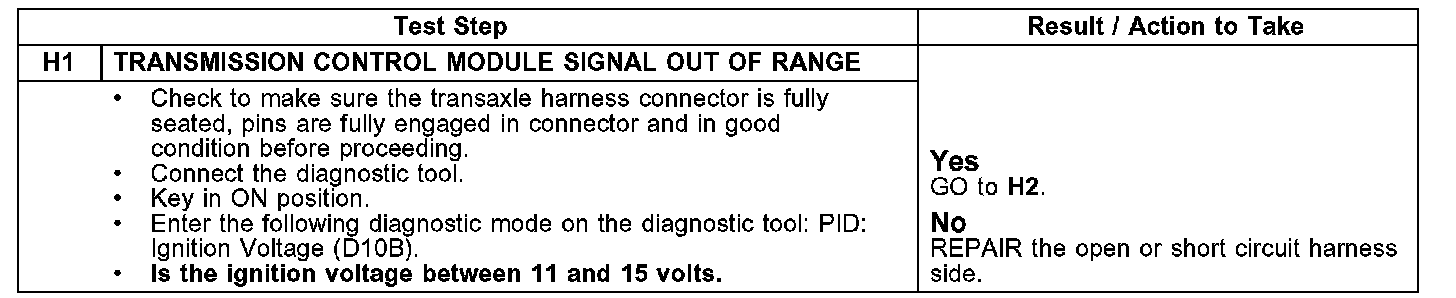

Test H1:

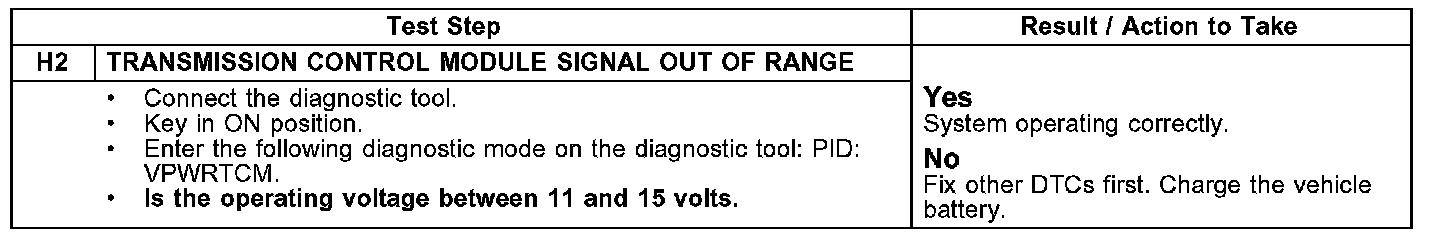

Test H2:

NOTE: The transmission control module (TCM) is integrated into the mechatronic assembly. If installing a new transaxle or a mechatronic assembly, the TCM will need to be checked and recalibrated (reflashed) to the latest level calibration available.
