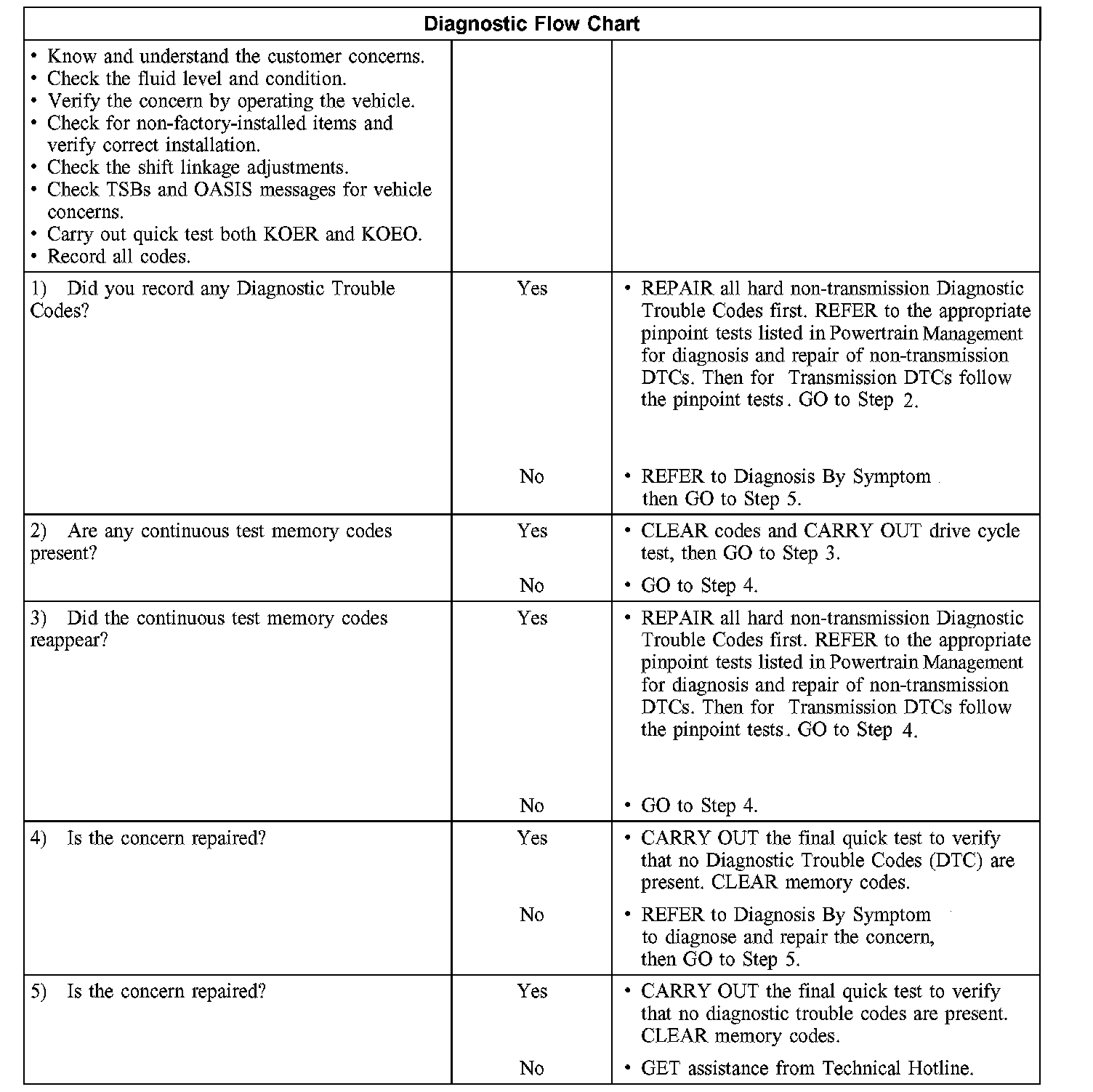

Diagnostic Flow Chart
Diagnostic Flow Chart
Diagnostic Flow Chart
Prior to carrying out the flow, test the following items should be checked:
