Primary and Secondary Variator Covers

Primary and Secondary Variator Covers

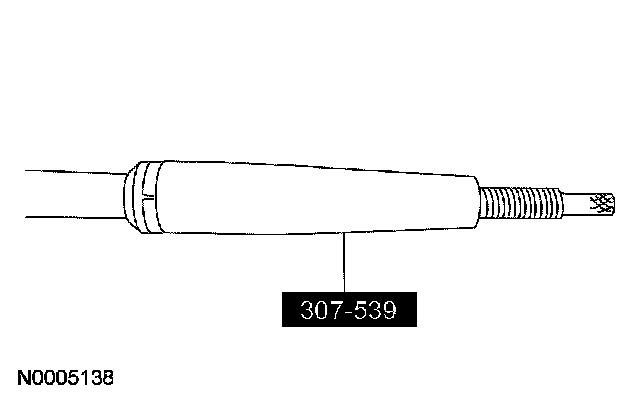

Special Tool(s)

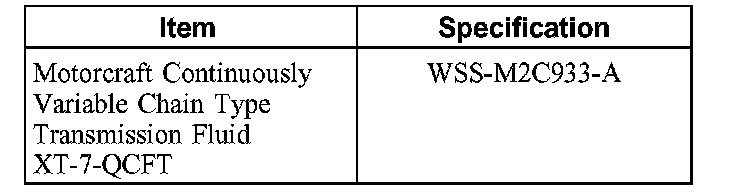

Material

Disassembly
Primary Variator Cover

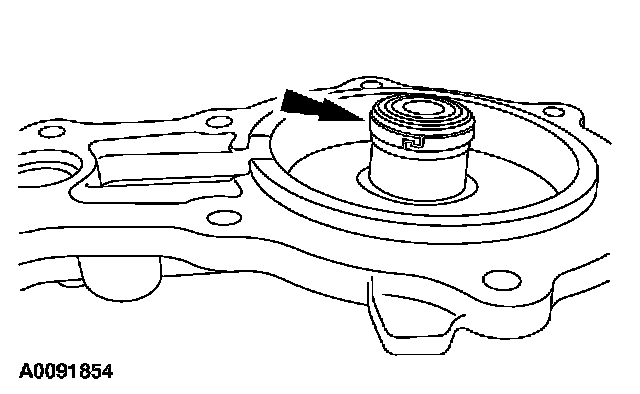

1. Remove the retaining clip and remove the primary cover feed tube.

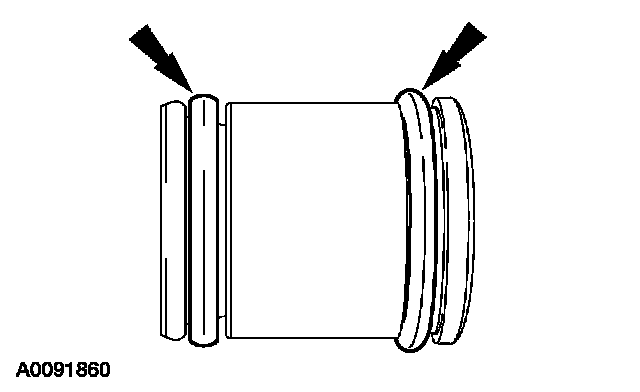

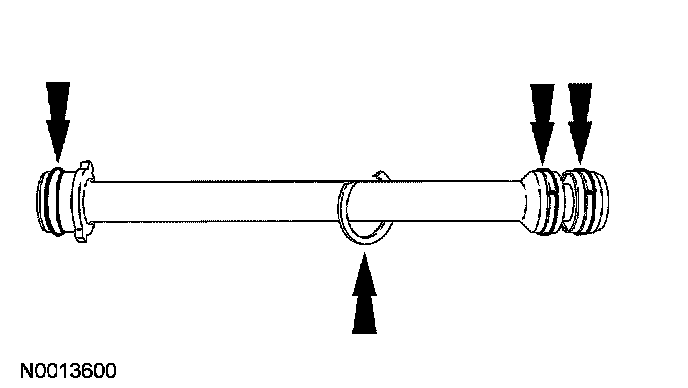

2. Remove and discard the 2 square cut seals, the O-ring seal and the retaining clip from the primary cover feed tube.





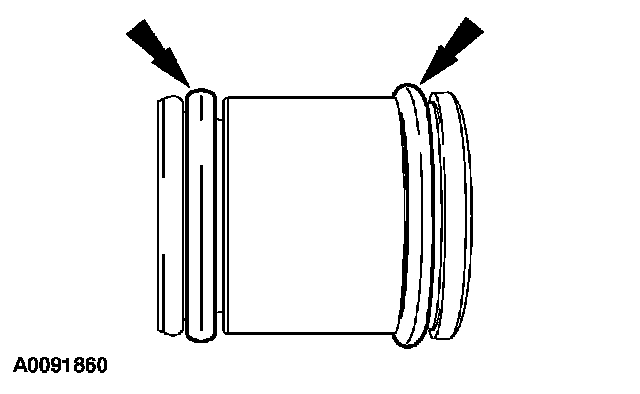

3. Remove and discard the O-ring seals from both of the primary cover feed tubes.
4. Clean and inspect the cover and the feed tubes.

Secondary Variator Cover

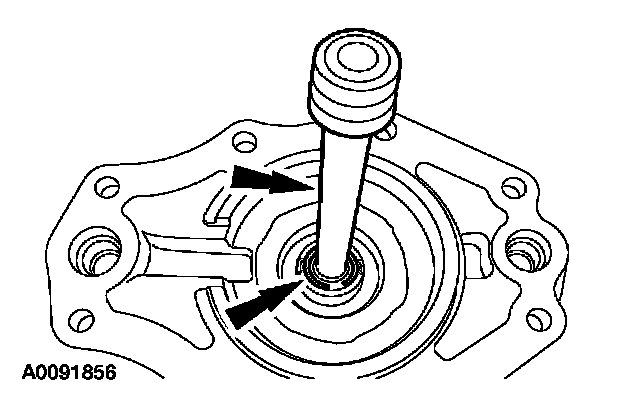

5. Remove and discard the square cut seal from the secondary cover.
6. Clean and inspect the cover.

Assembly
Primary Variator Cover





1. NOTE: The new retaining clip must be installed on the feed tube prior to installing the square cut seals.

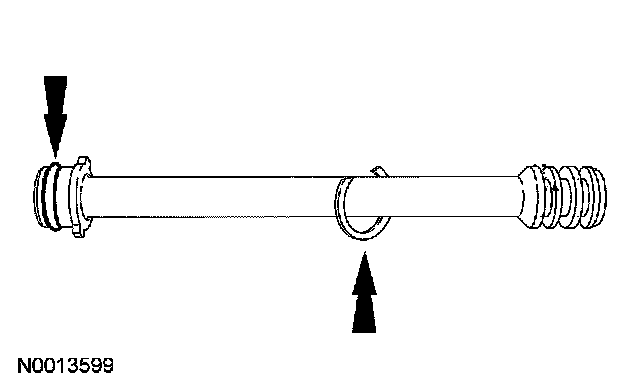

Install a new O-ring seal and a new retaining clip on the feed tube.

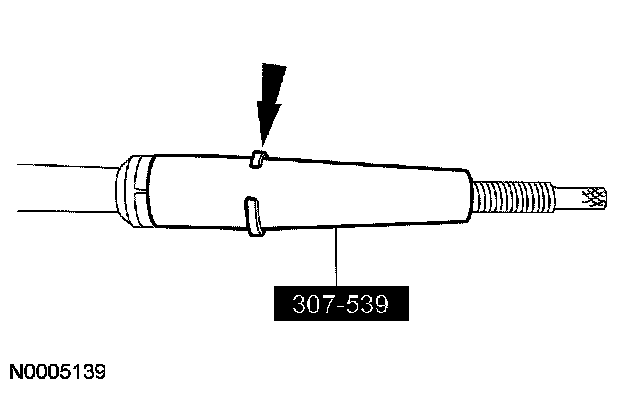

2. Install the special tool onto the feed tube.





3. NOTE: Be careful not to overextend the seals when installing, damage to the seals will occur.

Using the special tool, install 2 new square cut seals.





4. CAUTION: MERCON, MERCON V and MERCON SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.

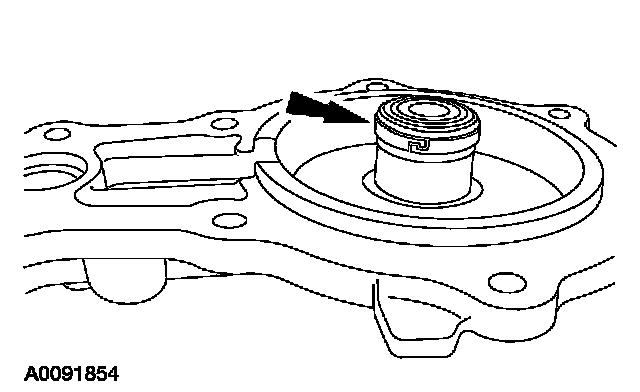

Lubricate the O-ring seals in clean CVT automatic transmission fluid, install the feed tube into the primary cover and install the retaining clip.





5. Install new O-ring seals on both of the primary cover feed tubes

Secondary Variator Cover





6. Install a new square cut seal on the secondary cover.
