Selector Shaft Seal

Selector Shaft Seal

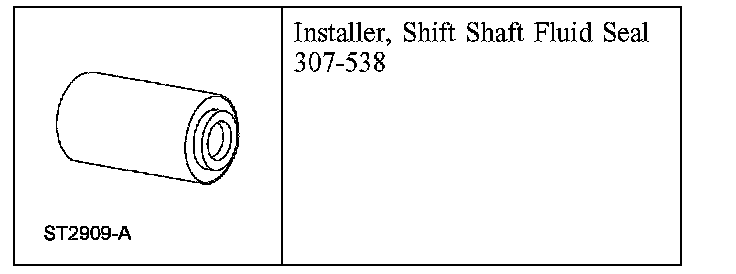

Special Tool(s)

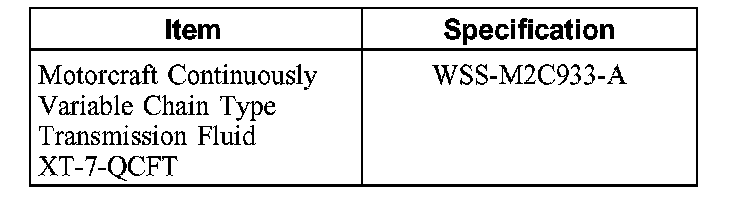

Material

Removal

CAUTION: MERCON, MERCON V, MERCON SP, Motorcraft Premium Automatic Transmission Fluid and Motorcraft Continuously Variable Chain Type Transmission Fluid are not interchangeable transmission fluids. The use of any fluid other than what is recommended for this transmission will cause transmission damage.

1. Remove the battery and battery tray.

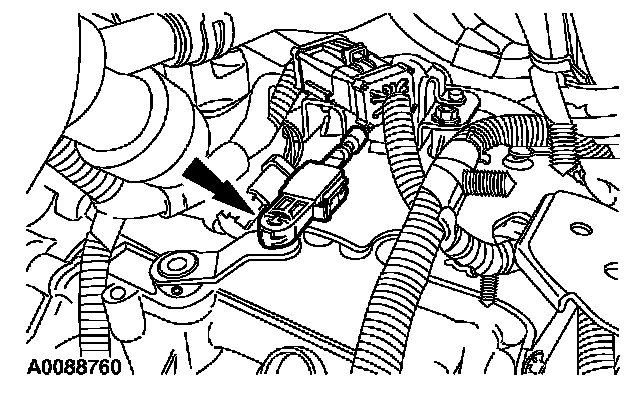

2. Disconnect the shift cable end.

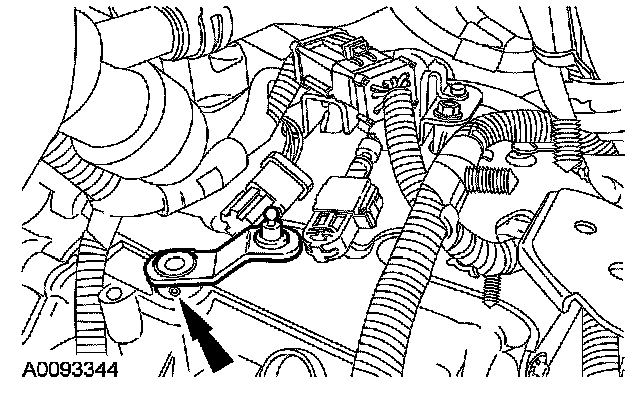

3. Remove the roll pin and the manual lever.

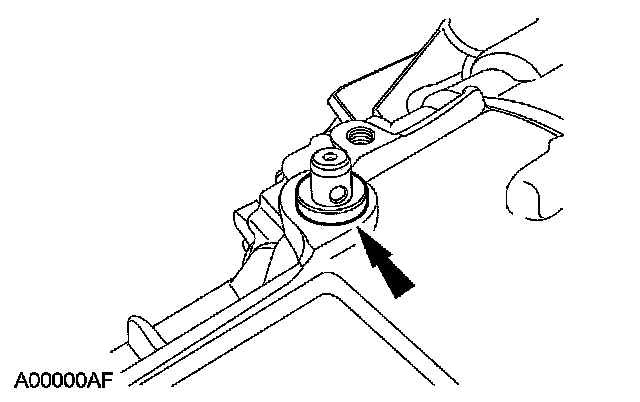

4. Using a suitable pick, remove the selector shaft seal.

Installation

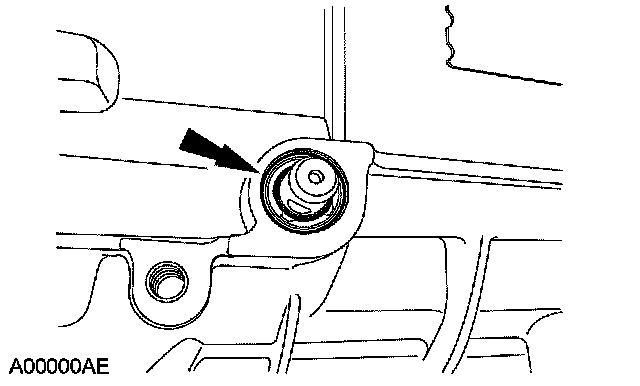

1. Position the new seal in place.

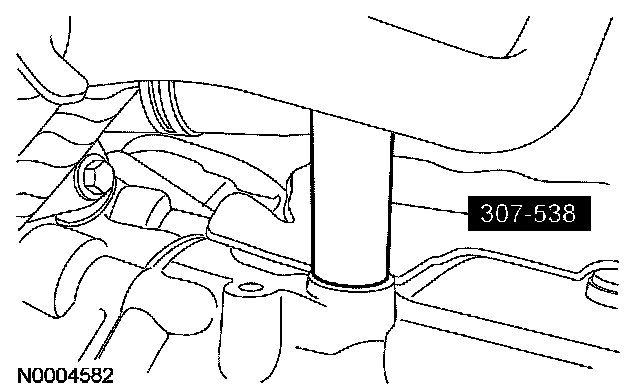

2. Using the special tool, install a new selector shaft seal.

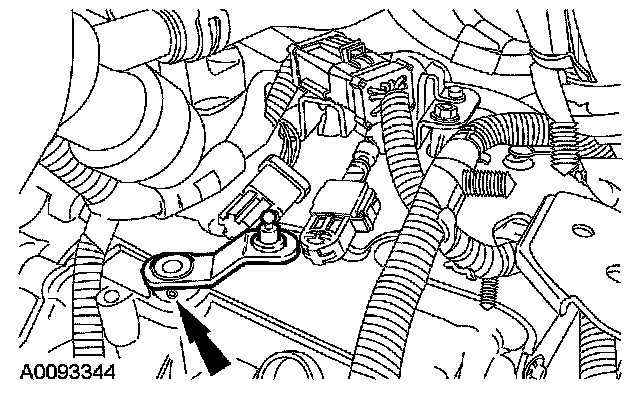

3. Position the manual lever in place and install the roll Din.





4. Connect the shift cable end.
5. Install the battery tray and battery.
6. Fill the transaxle with clean CVT automatic transmission fluid. Use the transmission fluid level setting procedure to fill the transaxle.
