Pump Cover Seal

Pump Cover Seal

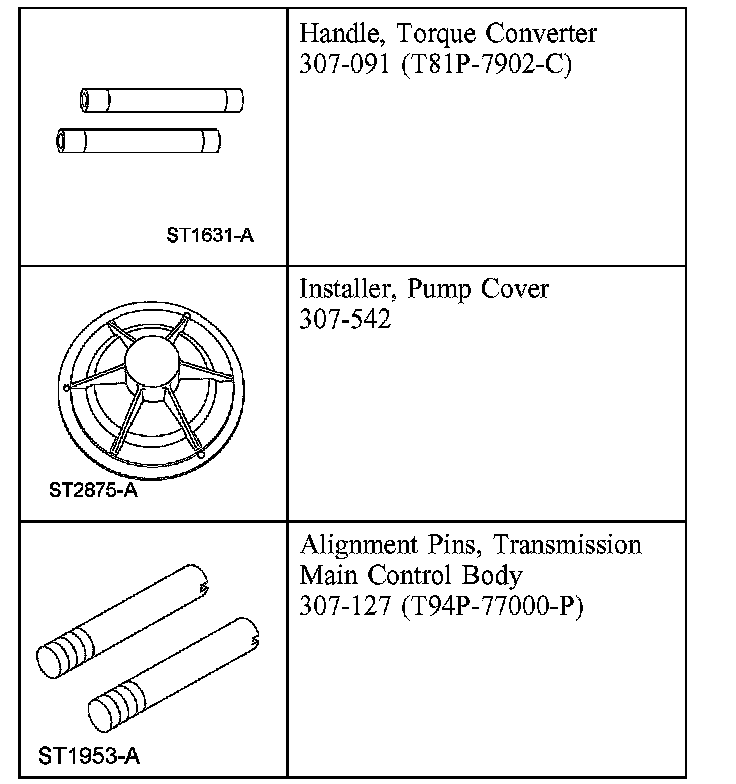

Special Tool(s)

1. Remove the transaxle.

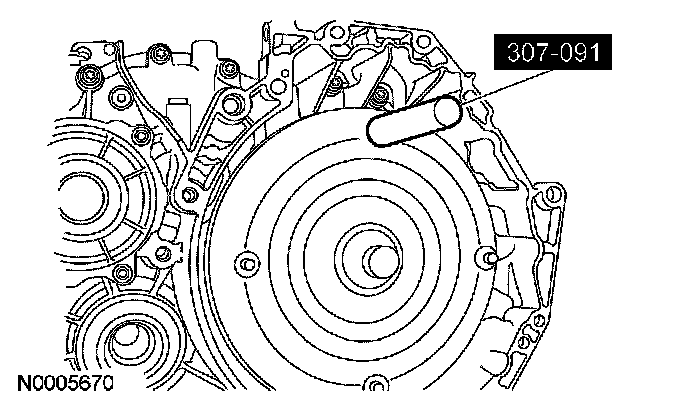

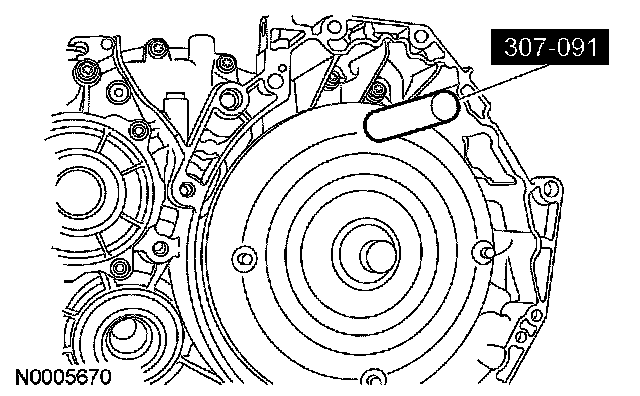

2. Using the special tool, remove the torque converter.





3. Make an identifying mark on the torque converter, where the pump pilot is located, for correct installation.

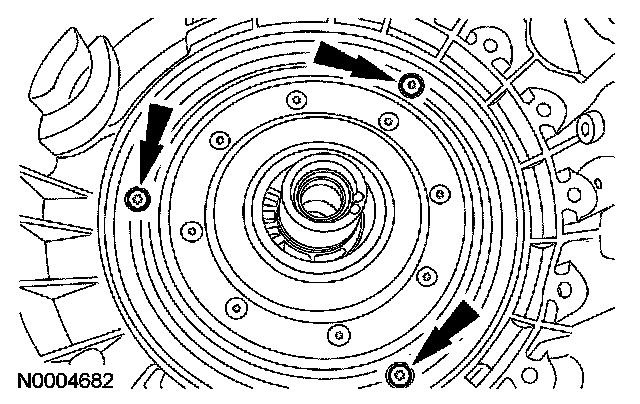

4. Remove the 3 bolts.

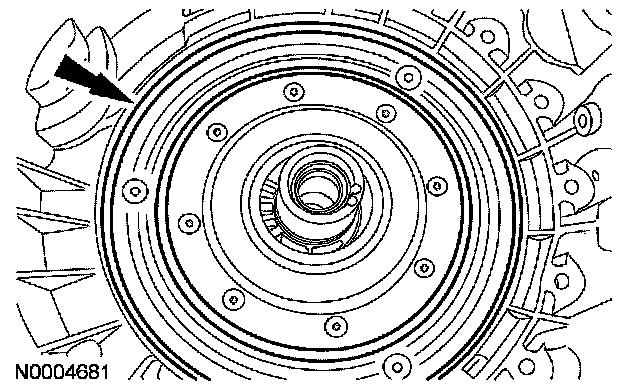

5. Using a suitable tool, remove the pump cover seal.

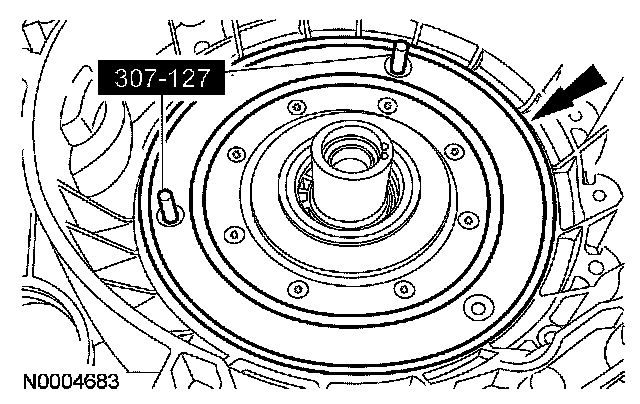

6. Position the new pump cover seal in place and install the special tools.

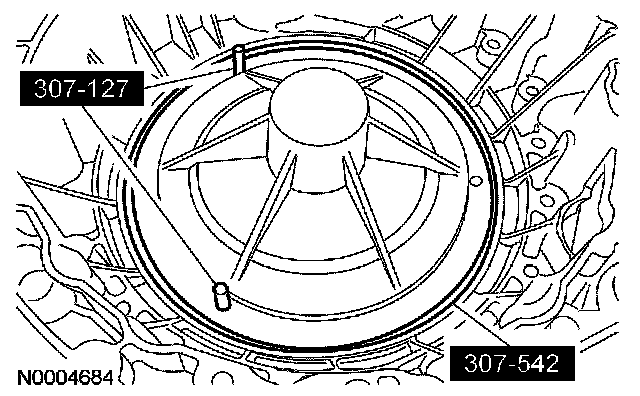

7. Using the special tools, seat the pump cover in place.

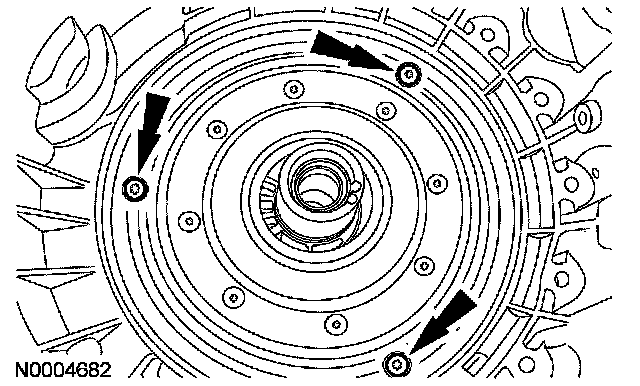

8. Install the 3 bolts.
^ Tighten to 10 Nm (89 inch lbs.).





9. CAUTION: Do not set the torque converter in the pump housing and rotate the torque converter to get it to fall into place or damage to the torque converter seal will occur.

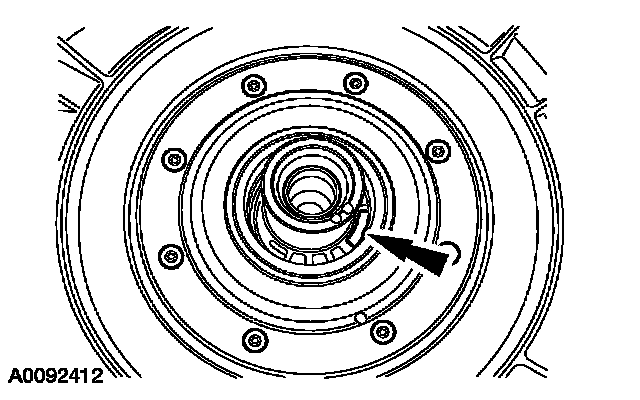

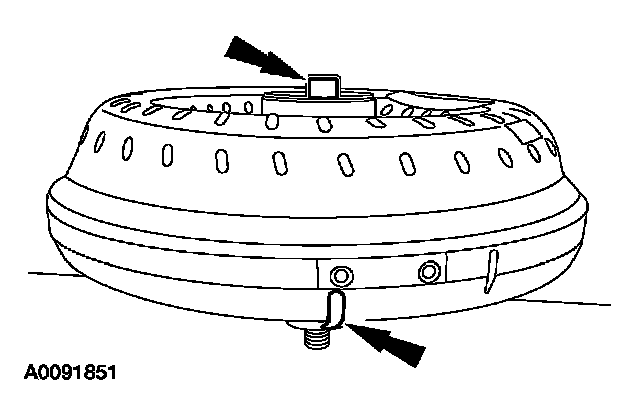

Note the location of the index slot in the pump for the correct installation of the torque converter. The tab on the torque converter must correctly line up with the slot on the pump.





10. Making sure that you have the tab on the torque converter lined up with the slot on the pump, use the special tool to install the torque converter.
11. Install the transaxle.
