Transmission Mount: Service and Repair

Transaxle Support Insulator

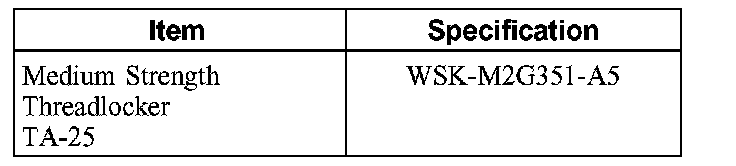

Material

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

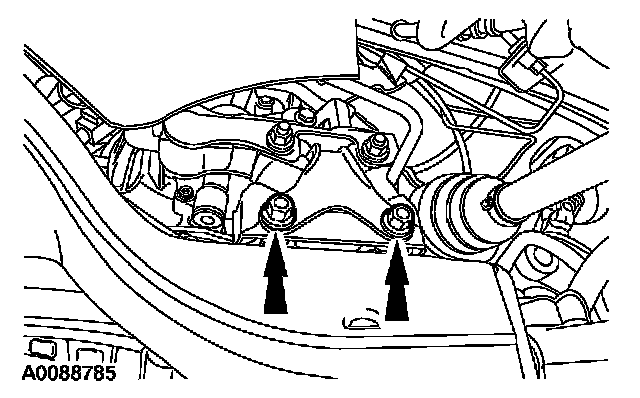

2. Remove the 2 bolts for the rear transaxle mount.
3. Install a suitable transmission jack to support the transaxle.

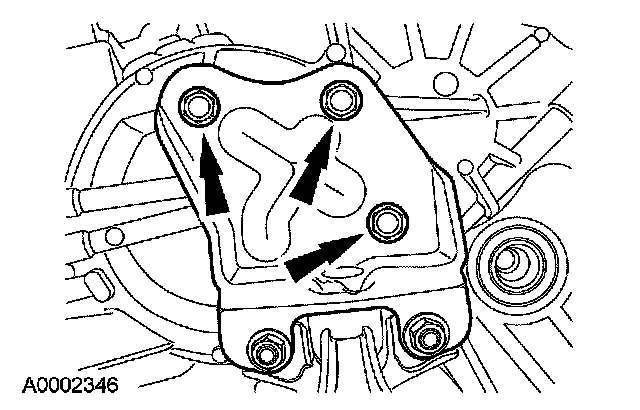

4. Remove the upper transaxle mount bolts and remove the mount.

Installation
1. Clean the rear transaxle mount bolts using a wire brush and apply new threadlocker to the threads.





2. Position the transaxle mount in place and install the bolts.
^ Tighten to 55 Nm (41 ft. lbs.).





3. Install the rear transaxle mount.
^ Tighten to 90 Nm (66 ft. lbs.).
