Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Scan Tool Testing and Procedures

Scan Tool Testing and Procedures

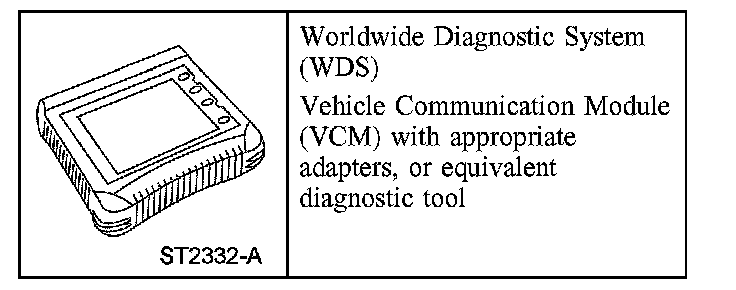

Special Tool(s)

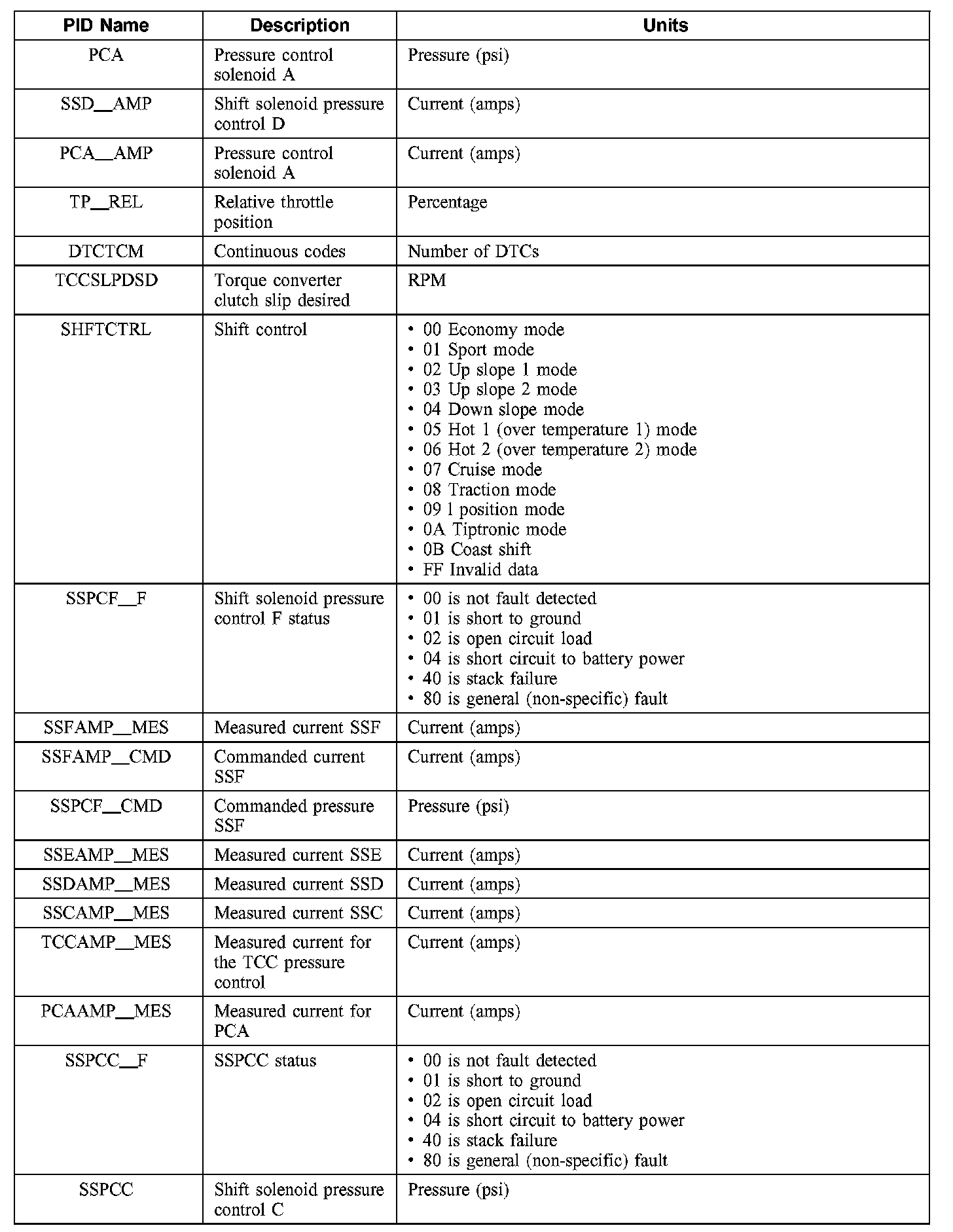

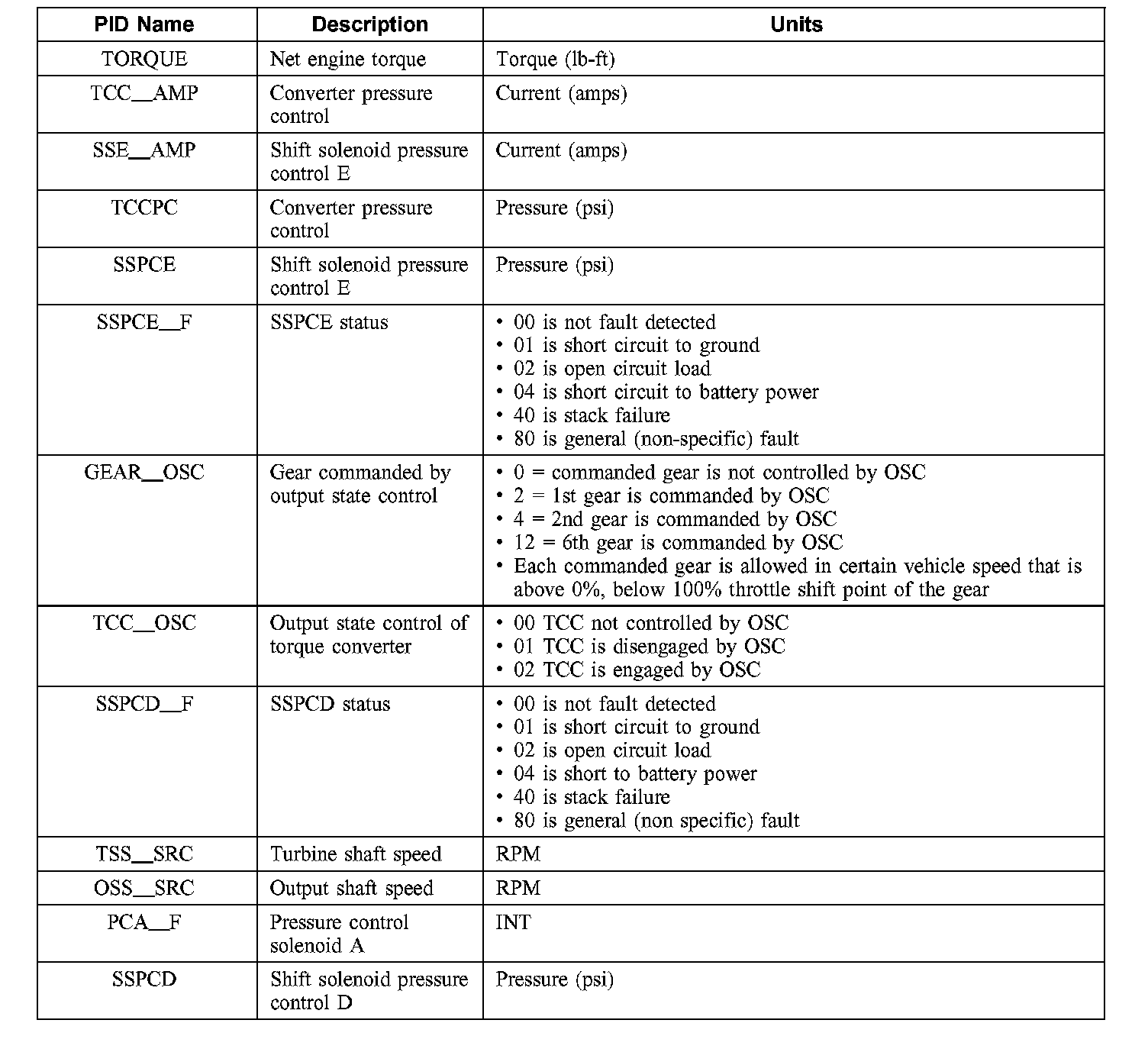

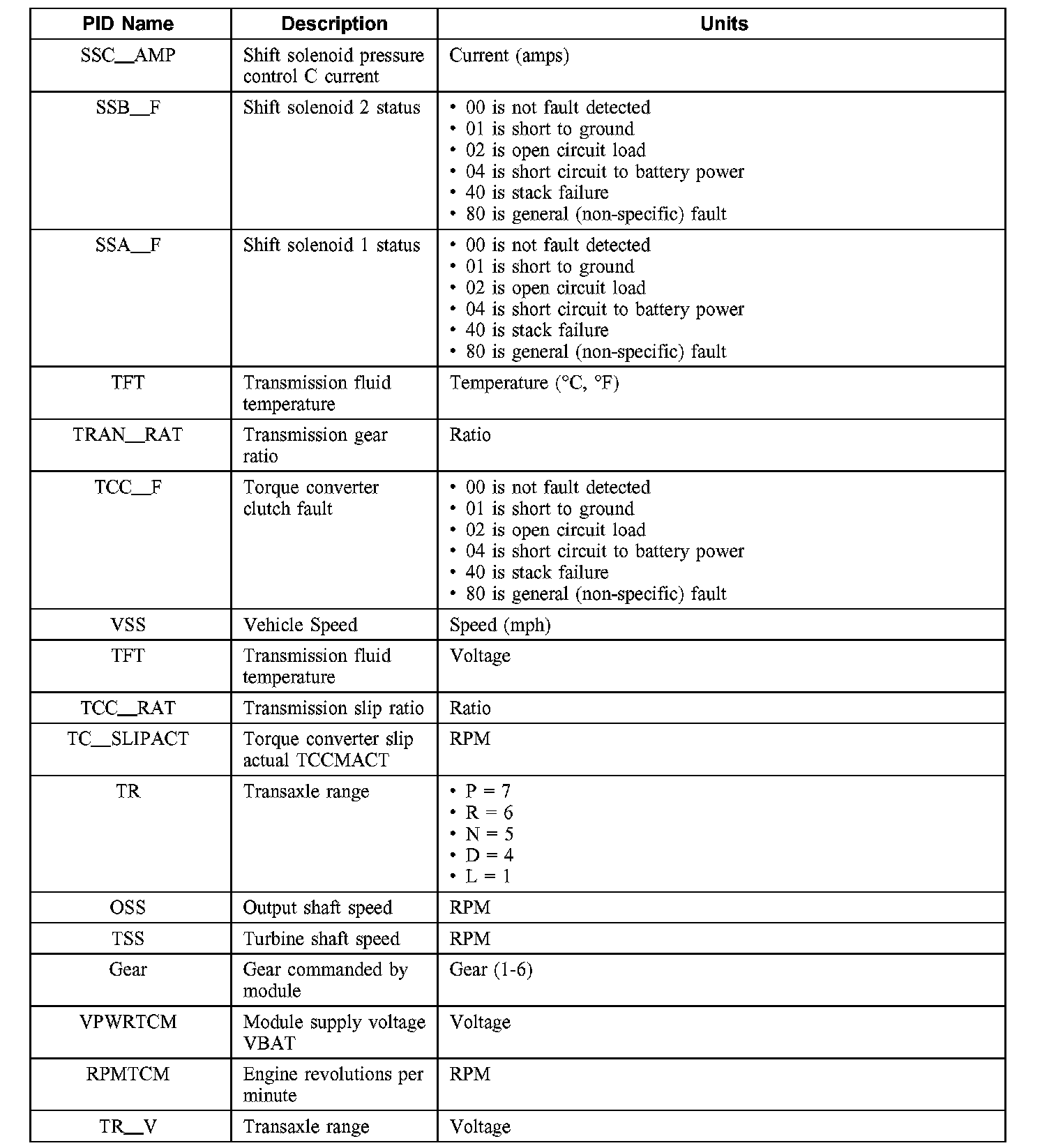

Diagnostic Parameters Identification (PID) Chart
