Electrical Connectors

Electrical Connectors





Floor Shifter Harness Connector C3245

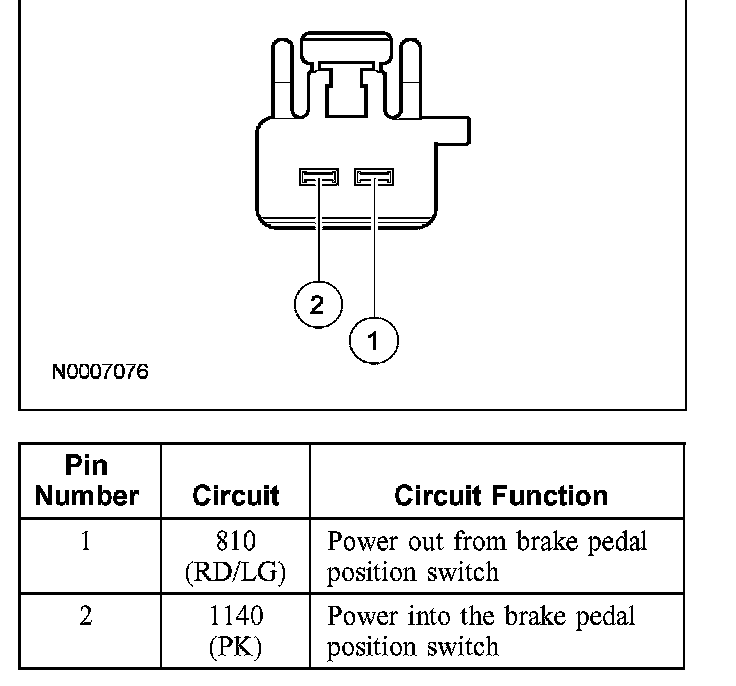

Brake Pedal Position Switch C278

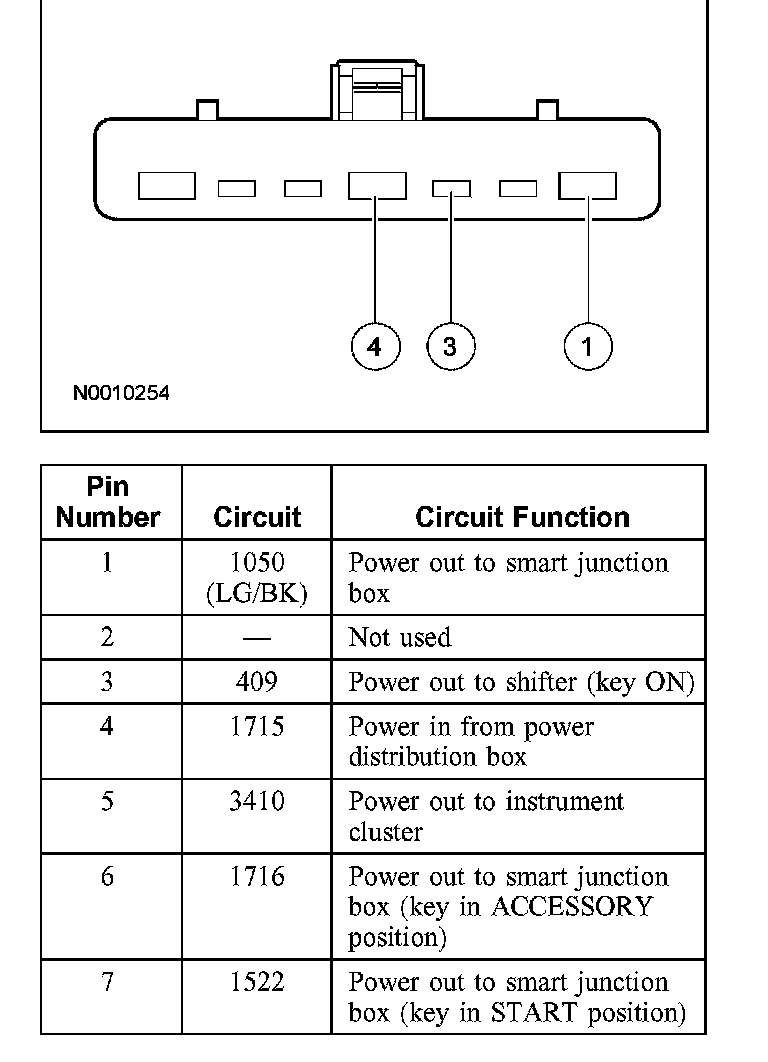

Ignition Switch C250

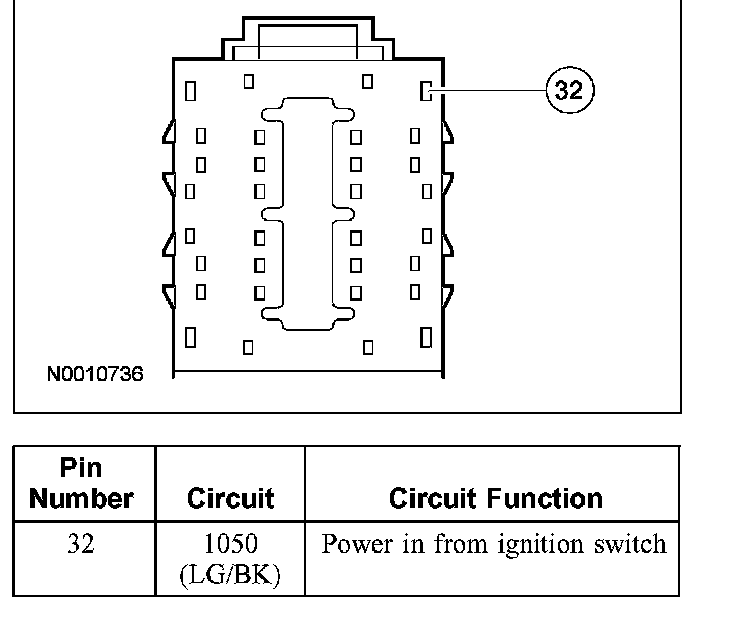

Smart Junction Box C2280a

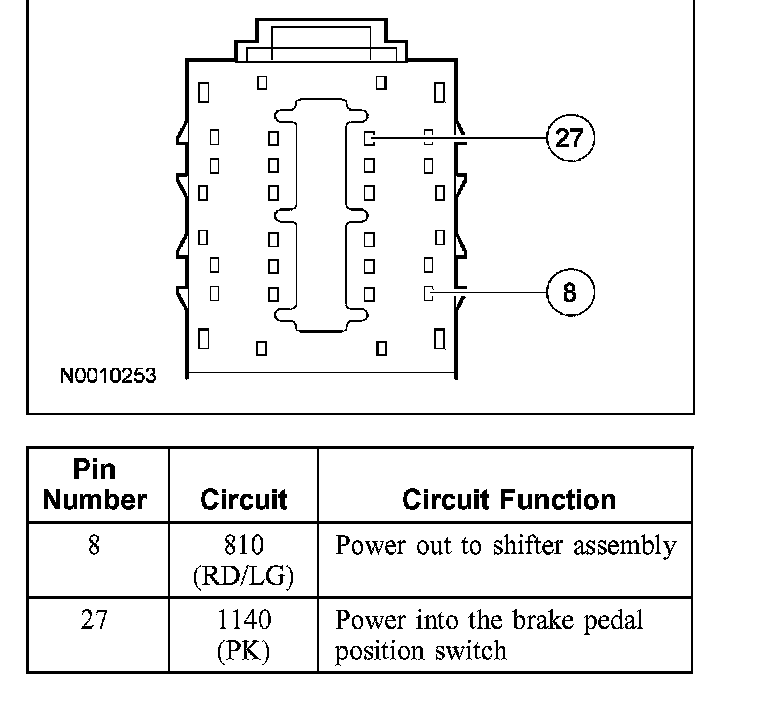

Smart Junction Box C2280b
