Test B: Transmission Fluid Temperature (TFT) Sensor

PINPOINT TEST B: TRANSMISSION FLUID TEMPERATURE (TFT) SENSOR

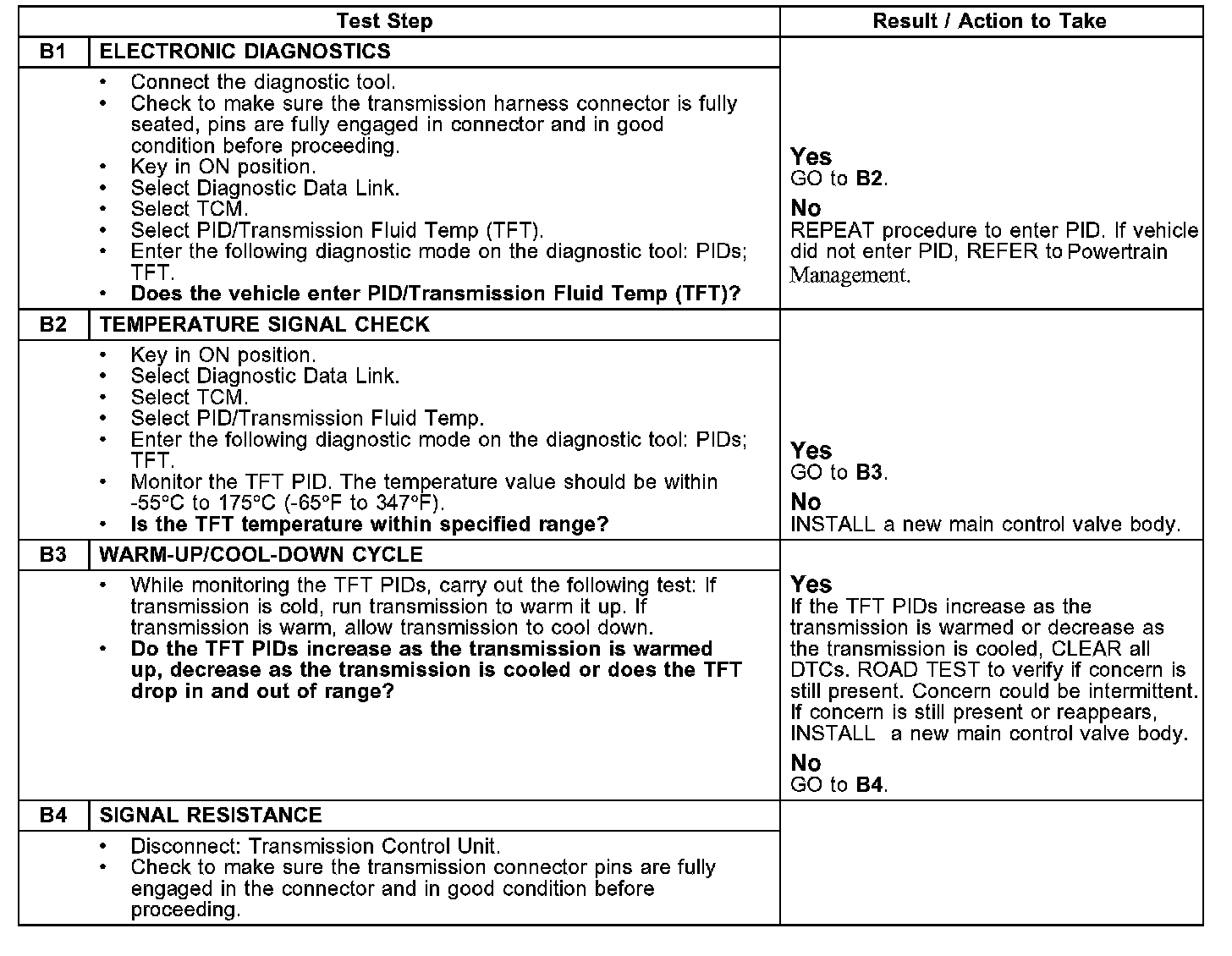

Test B1-B4:

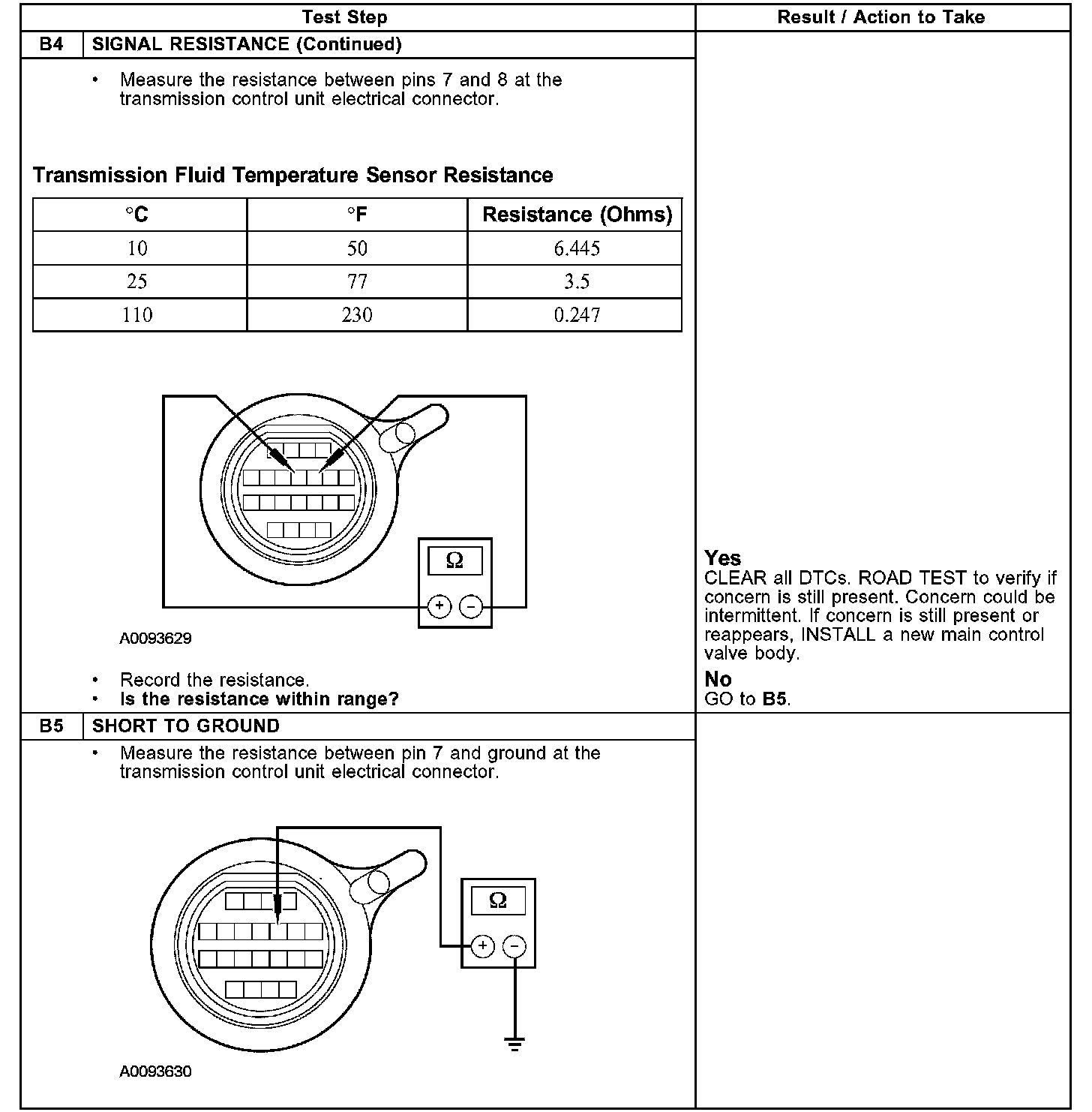

Test B4-B5:

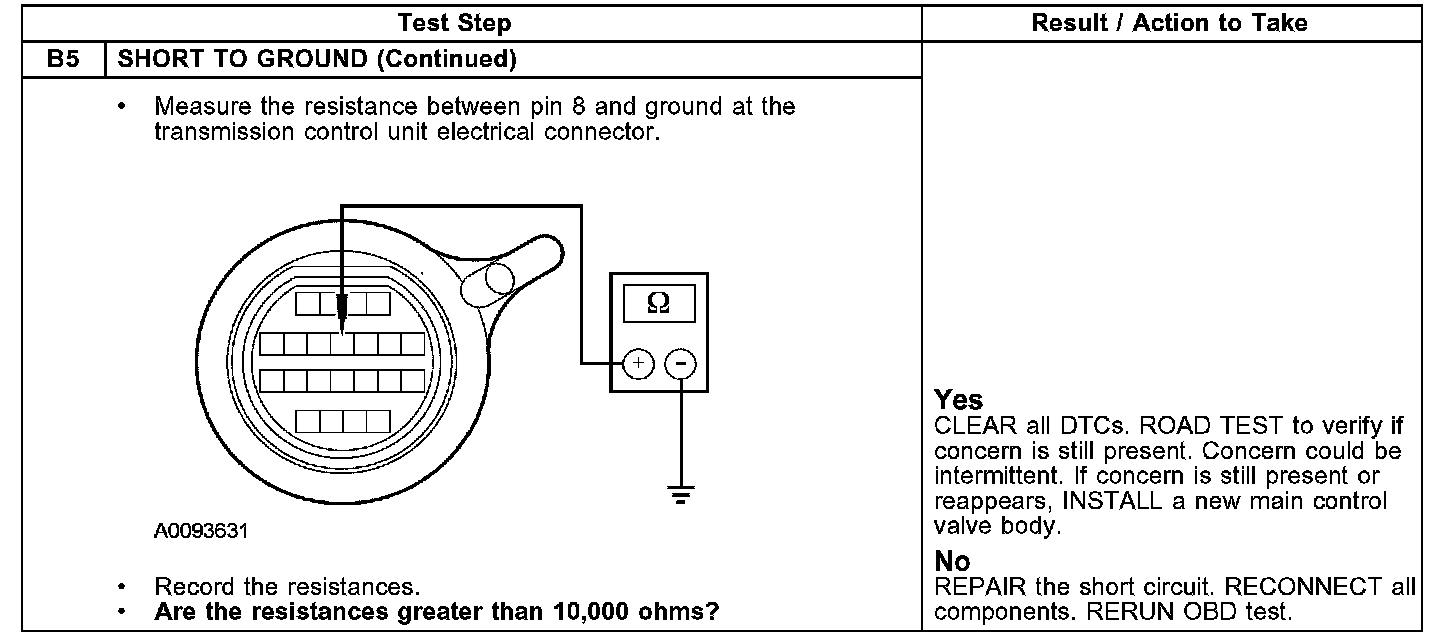

Test B5:

NOTE: Refer to the Transaxle Vehicle Harness Connector illustration preceding these pinpoint tests.
