Selector Lever Bezel

Selector Lever Bezel

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.

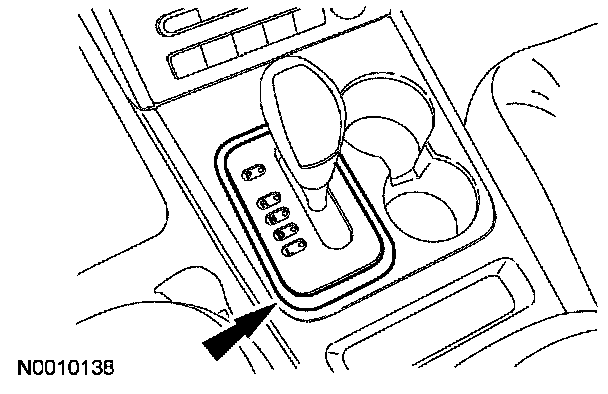

2. Remove the PRNDL trim ring.

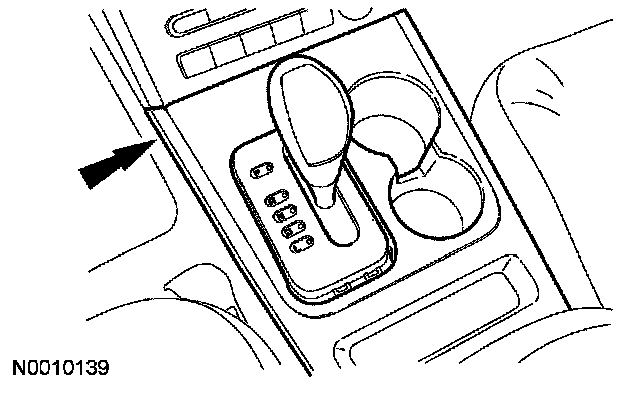

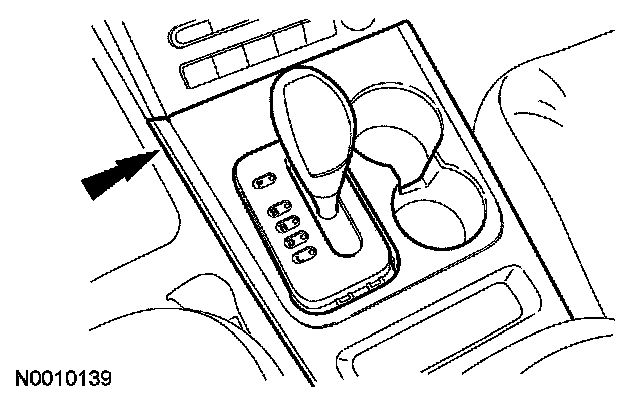

3. Remove the upper console panel.

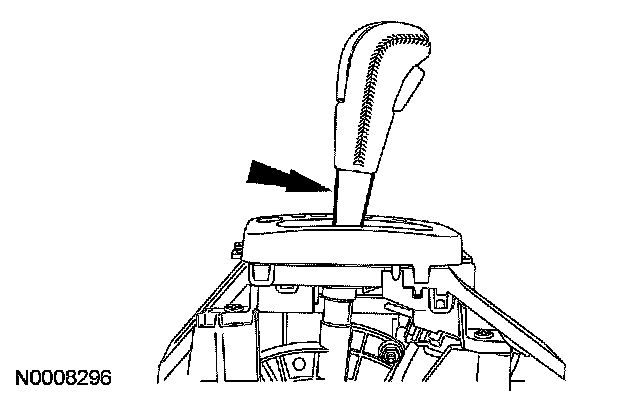

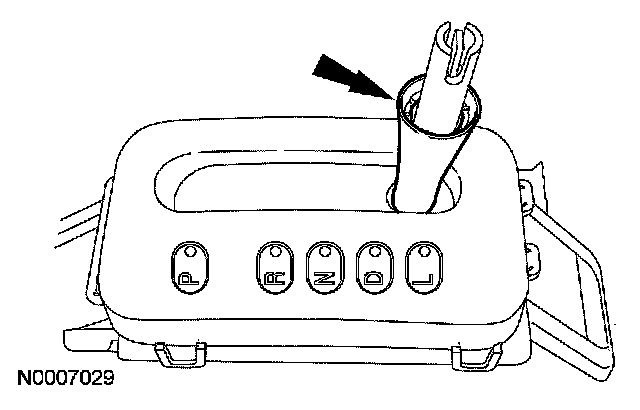

4. Slide the lower shift knob bezel downward.

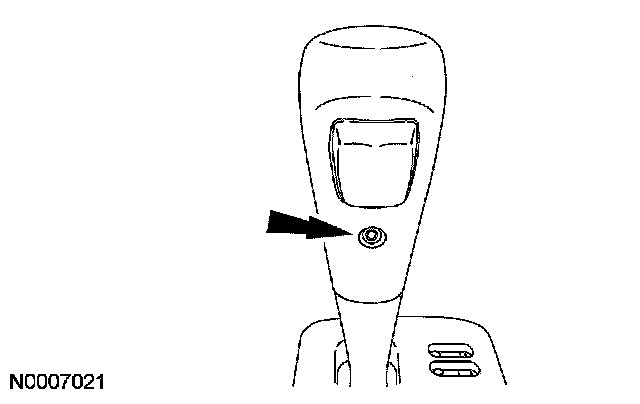

5. Remove the bolt and lift up on the shift knob to remove.





6. Remove the lower shift knob bezel.

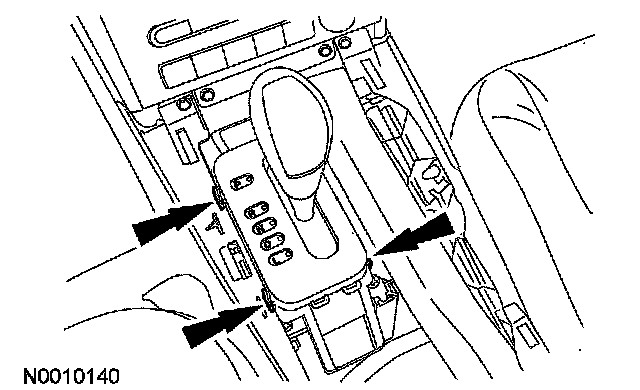

7. Release the 4 locking tabs and remove the PRNDL bezel.

Installation

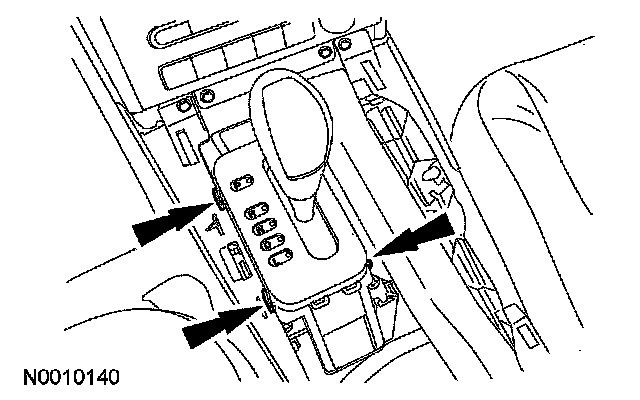

1. Install the PRNDL bezel.
^ Make sure that the 4 locking tabs are snapped in place.





2. Install the lower shift knob bezel.





3. Install the shift knob and bolt.
^ Tighten to 10 Nm (89 inch lbs.).

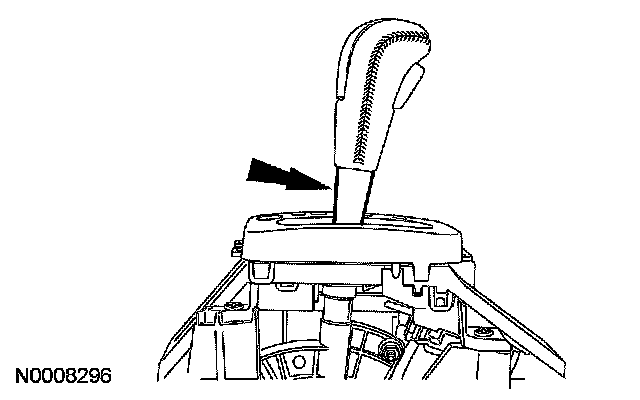

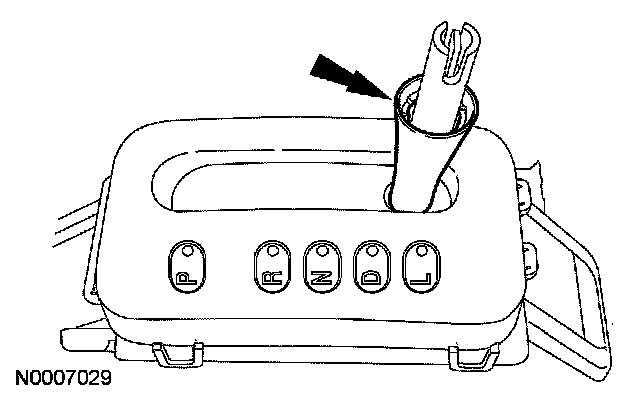

4. Slide the lower shift knob bezel up and snap it into place.





5. Install the upper console panel.

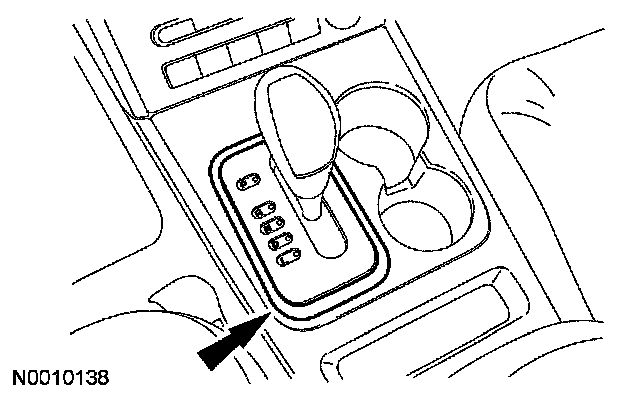

6. Install the PRNDL trim ring.
