Manual Control Lever Shaft and Seal

Manual Control Lever Shaft and Seal

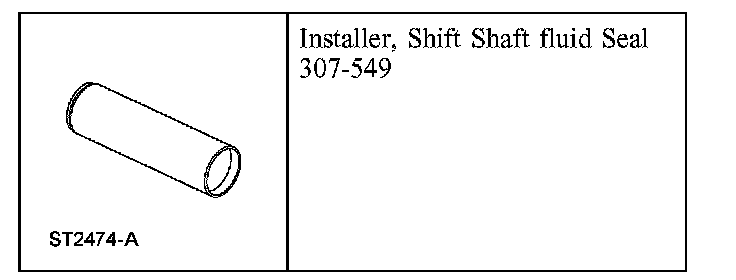

Special Tool(s)

Removal
1. With the vehicle in NEUTRAL, position it on a hoist.
2. Disconnect the battery ground cable.
3. Remove the air cleaner assembly.

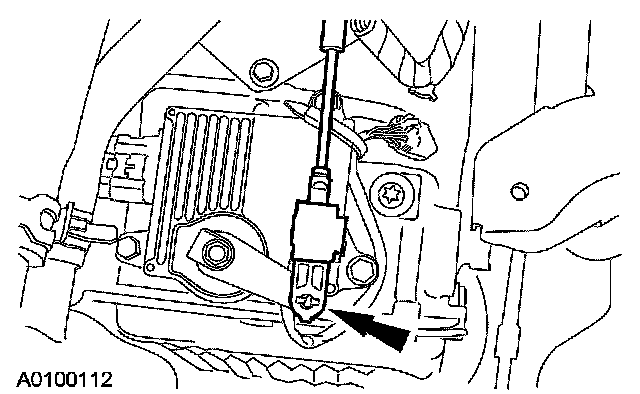

4. Disconnect the shift cable end.

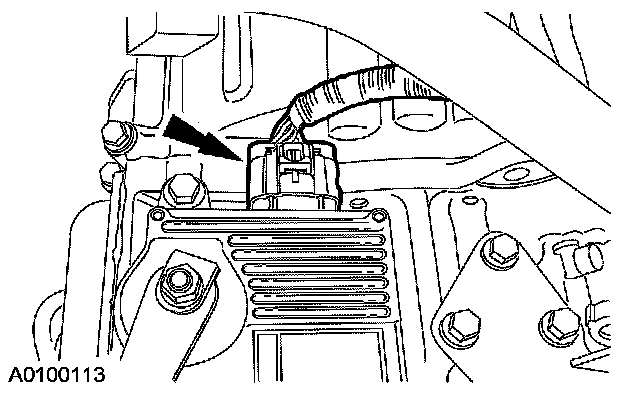

5. Disconnect the Transmission Control Module (TCM) electrical connector.

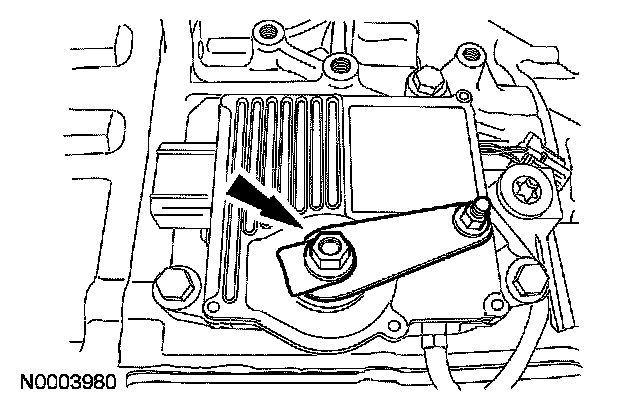

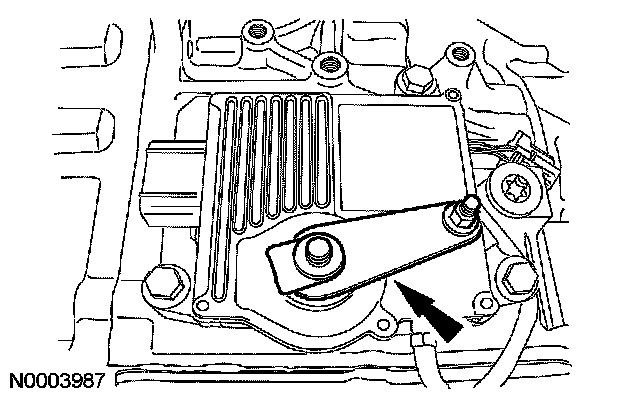

6. Remove the manual control lever nut.





7. Remove the manual control lever.

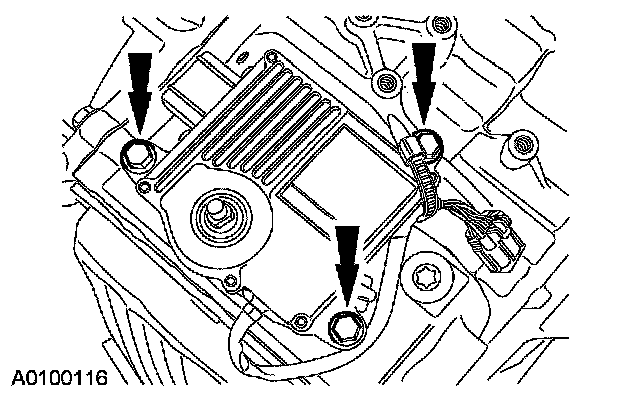

8. Remove the bolts and remove the TCM.

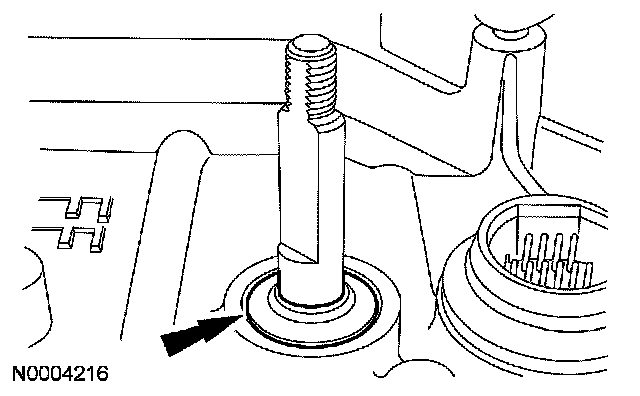

9. Using a suitable pick, remove the manual control lever seal.

Installation

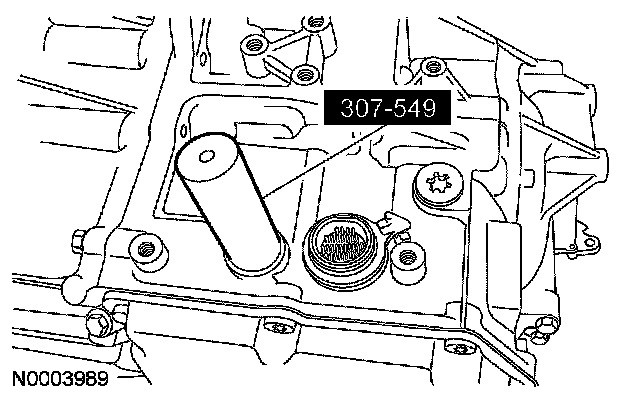

1. Using the special tool, install the manual control lever seal.

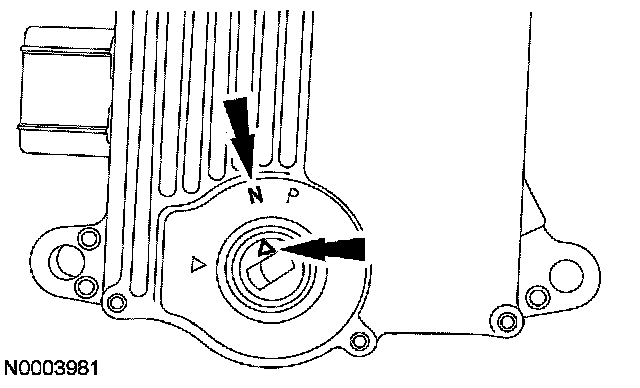

2. Verify that the manual lever position markings are aligned. Markings should indicate that the manual lever is in the NEUTRAL position.





3. Install the TCM.
^ Tighten to 24 Nm (18 ft. lbs.).





4. Install the manual control lever.

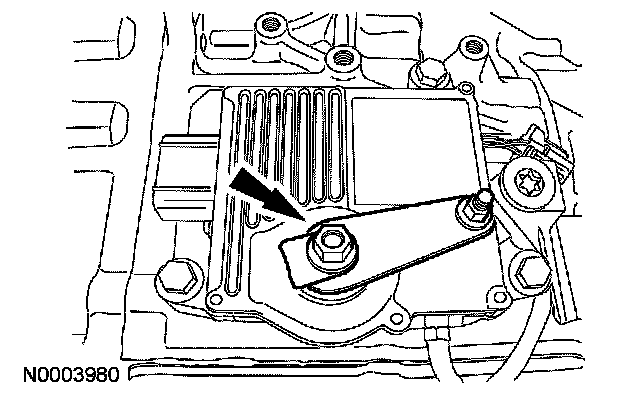

5. Install the manual control lever nut.
^ Tighten to 12 Nm (9 ft. lbs.).





6. Connect the TCM electrical connector.





7. CAUTION: Be careful not to bend the manual control lever when installing the shift cable.

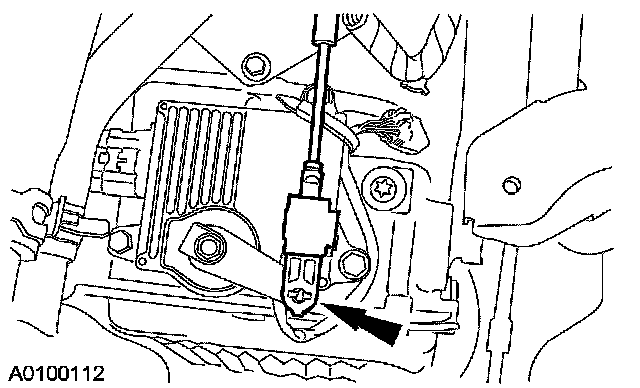

Connect the shift cable end.
8. Install the air cleaner assembly.
9. Connect the battery ground cable.
10. Check for correct vehicle operation.
