Transaxle Description

Transaxle Description





Automatic Transmission

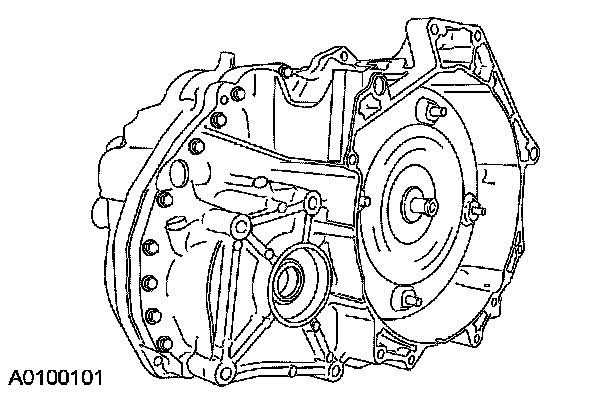

This transaxle is a compact, lightweight, next generation electronically controlled, 6-speed automatic transaxle that employs a Ravigeneaux-type planetary gear.

This transaxle contains a high precision clutch hydraulic control system for a smooth, highly responsive gear shift feel.

All hydraulic functions are directed by electronic solenoids to control:
^ engagement feel.
^ shift feel.
^ shift scheduling.
^ modulated Torque Converter Clutch (TCC) applications.
^ engine braking utilizing the coast clutch.
