Test B: No Power In ACC

Pinpoint Test B: No Power in ACC

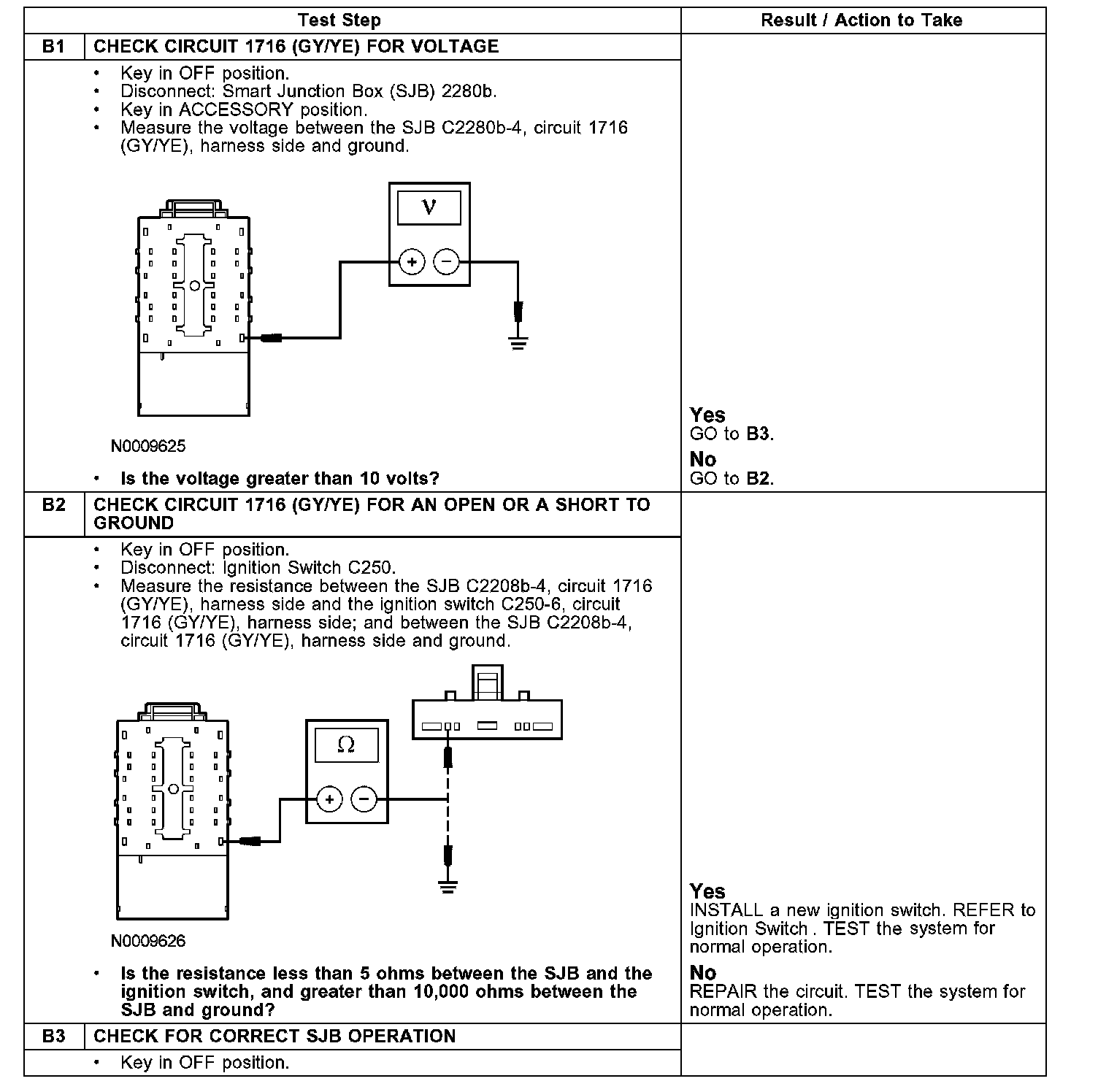

Test B1-B3:

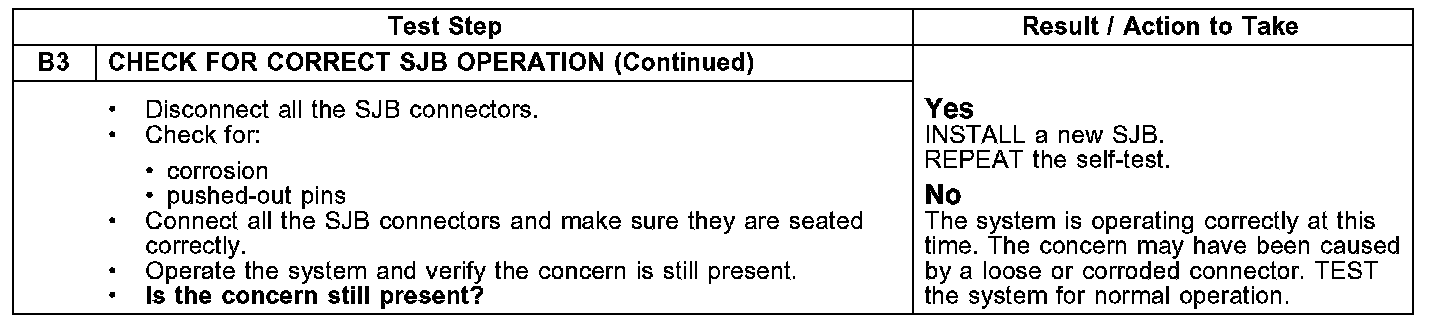

Test B3 Continued:

Normal Operation
The ignition switch ACC circuit provides greater than 10 volts through circuit 1716 (GY/YE) to the Smart Junction Box (SJB) when the key is in the ACC Position

Possible Causes
^ circuit 1716 (GY/YE) open or short to ground
^ ignition switch
^ SJB
