Power Steering Pump Pulley

Power Steering Pump Pulley

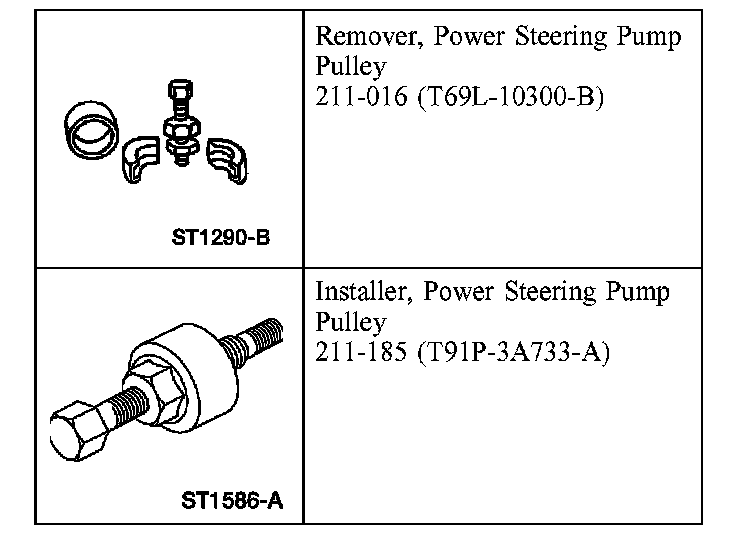

Special Tool(s)

Removal
1. Disconnect the windshield washer motor electrical connector.
2. Remove the 2 bolts and position aside the degas bottle.
^ Disconnect the fill sensor electrical connector.





3. Release the 2 retainers and position aside the engine w1ring harness.
^ Disconnect the 4 electrical connectors.

4. Remove the engine accessory drive belt.

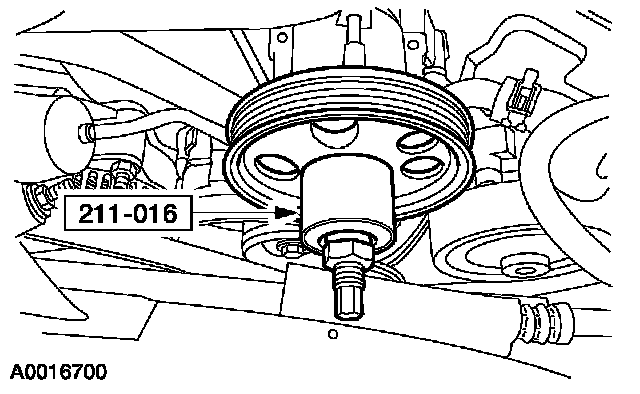

5. Using the special tool, remove the power steering pump pulley.

Installation





1. NOTE: If the pulley hub has no marks or 1 mark mark the pulley hub with paint before installing it. If the pulley hub has 2 marks, install a new pulley.

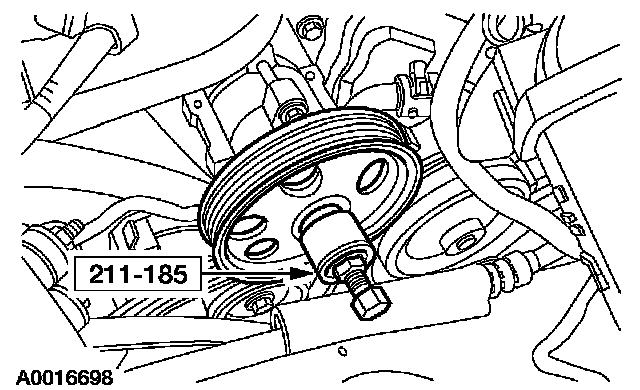

Using the special tool, install the power steering pump pulley.
2. Install the engine accessory drive belt.
3. Position the wiring harness to the 2 retainers.
^ Connect the 4 electrical connectors.

4. Position the degas bottle and install the 2 bolts.
^ Connect the fill sensor electrical connector.
^ Tighten to 7 Nm (62 inch lbs.).

5. Connect the windshield washer motor electrical connector.
