Rear Suspension - Exploded View

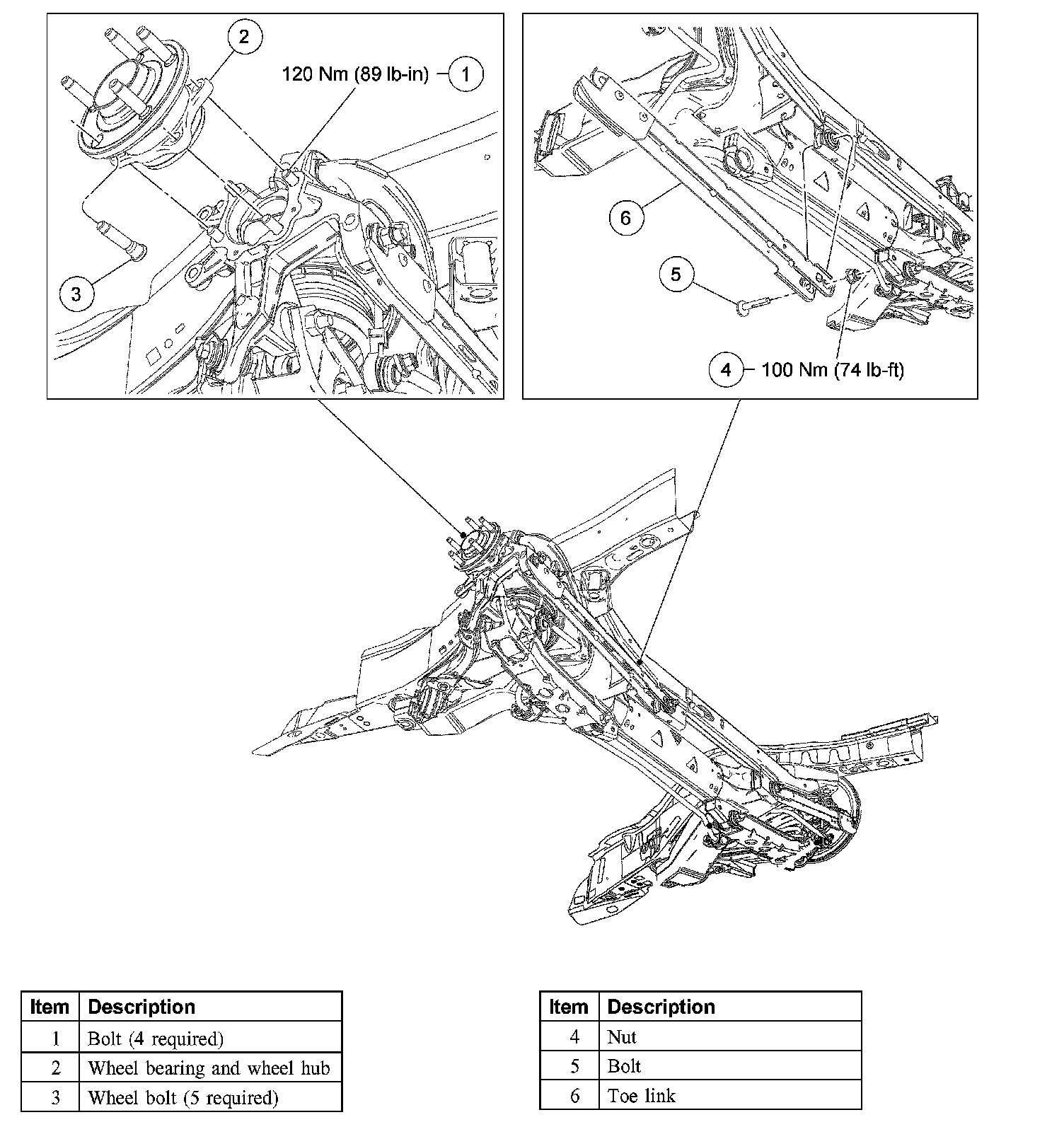

Rear Suspension-Exploded View





Note: 2 Wheel drive (2WD) shown, all-wheel drive (AWD) similar.

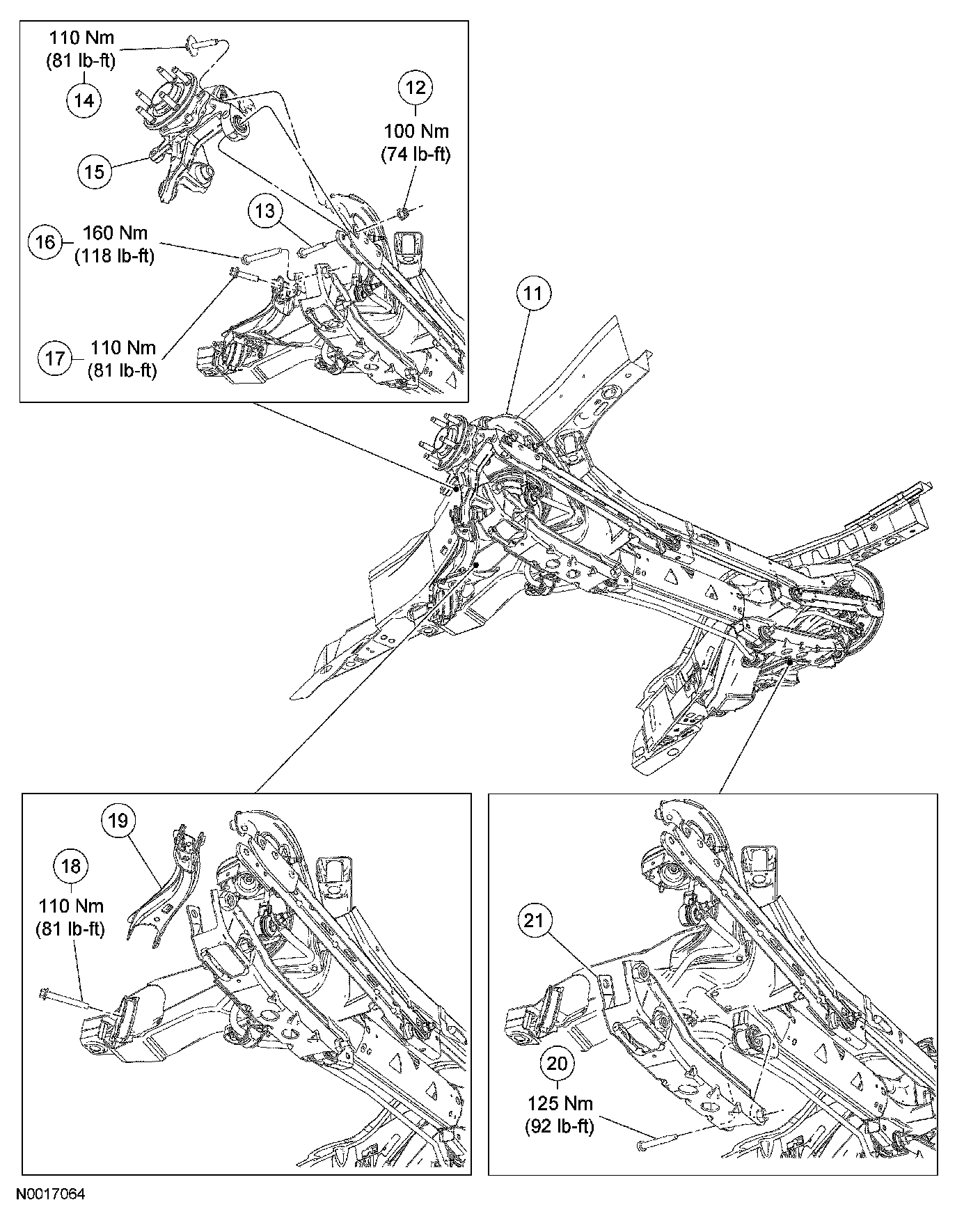

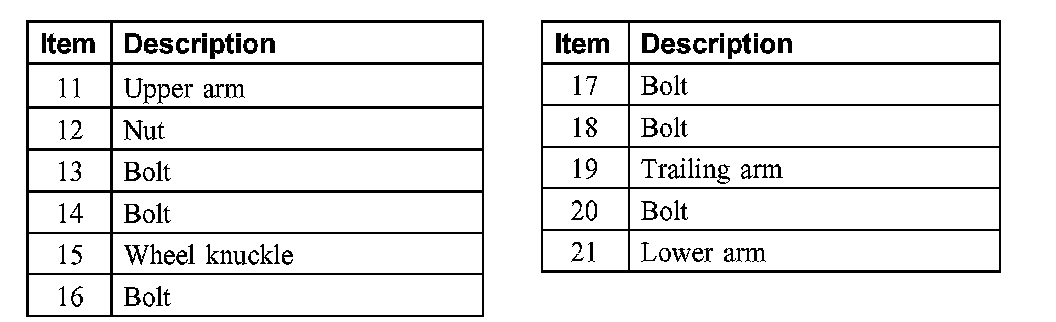

Rear Suspension (1 of 4)





Note: 2 Wheel drive (2WD) shown, all-wheel drive (AWD) similar.

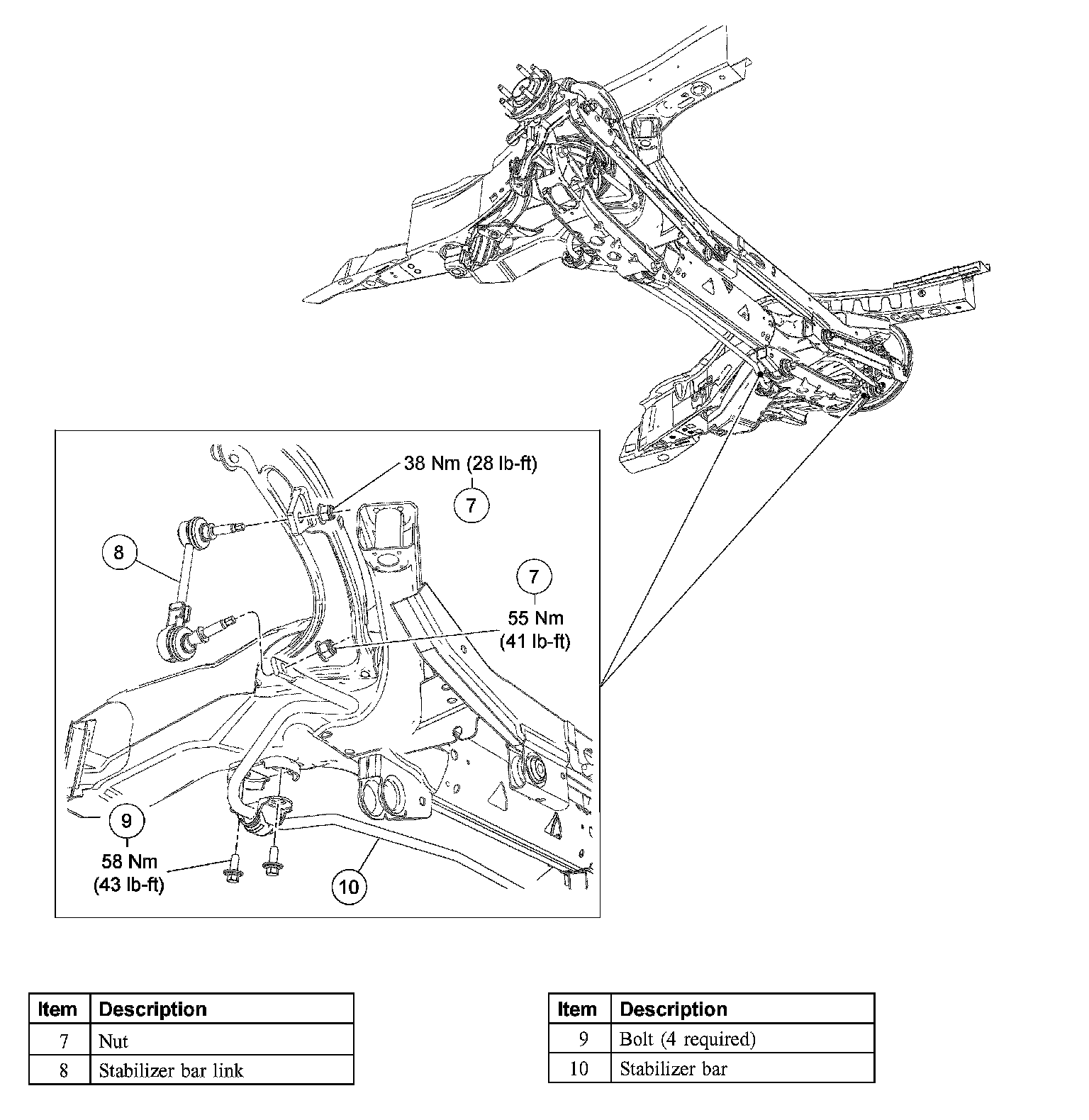

Rear Suspension (2 of 4)








Note: 2 Wheel drive (2WD) shown, all-wheel drive (AWD) similar.

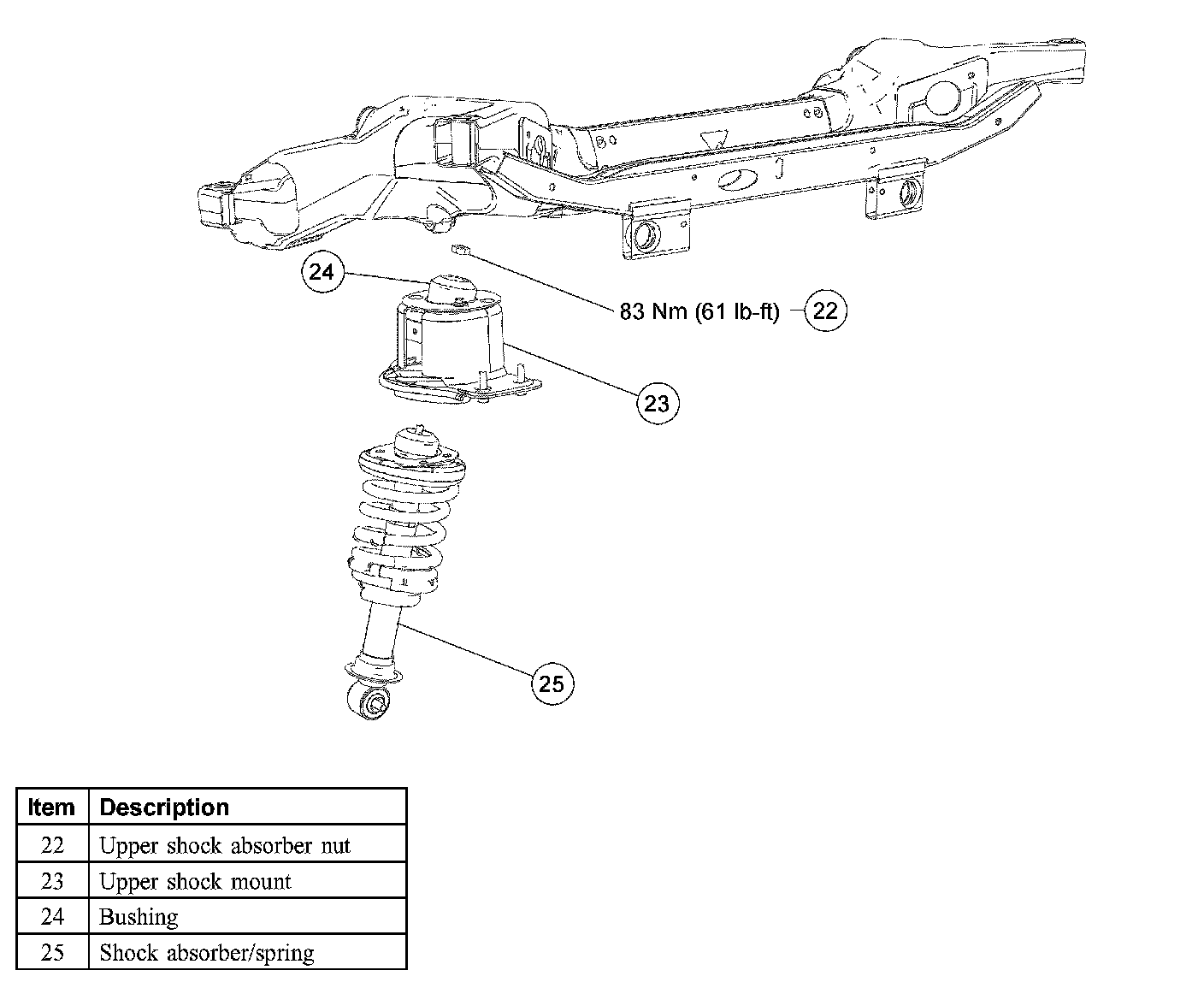

Rear Suspension (3 of 4)





Note: 2 Wheel drive (2WD) shown, all-wheel drive (AWD) similar.

Rear Suspension (4 of 4)
