Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Restraints and Safety Systems >> Impact Sensor >> Locations >> Forward Crash Sensor, Left/Right

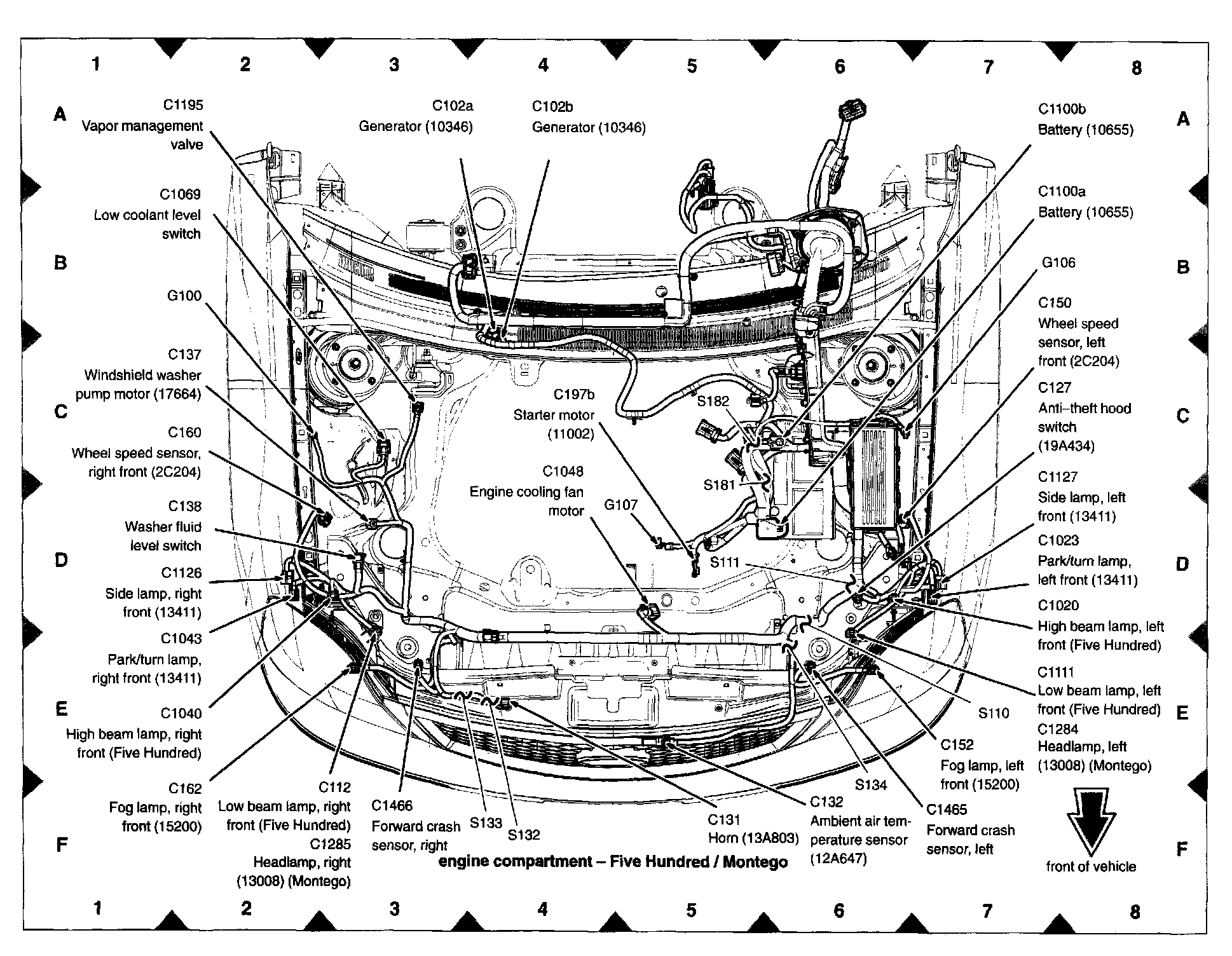

Forward Crash Sensor, Left/Right

View 151-3 (Engine Compartment):
