Test E: DTC B1046 - Driver Side Air Bag Curtain Loop #1 Cross Link to Another Firing Loop Fault

PINPOINT TEST E: DTC B1046 - DRIVER SIDE AIR BAG CURTAIN LOOP #1 CROSS LINK TO ANOTHER FIRING LOOP FAULT

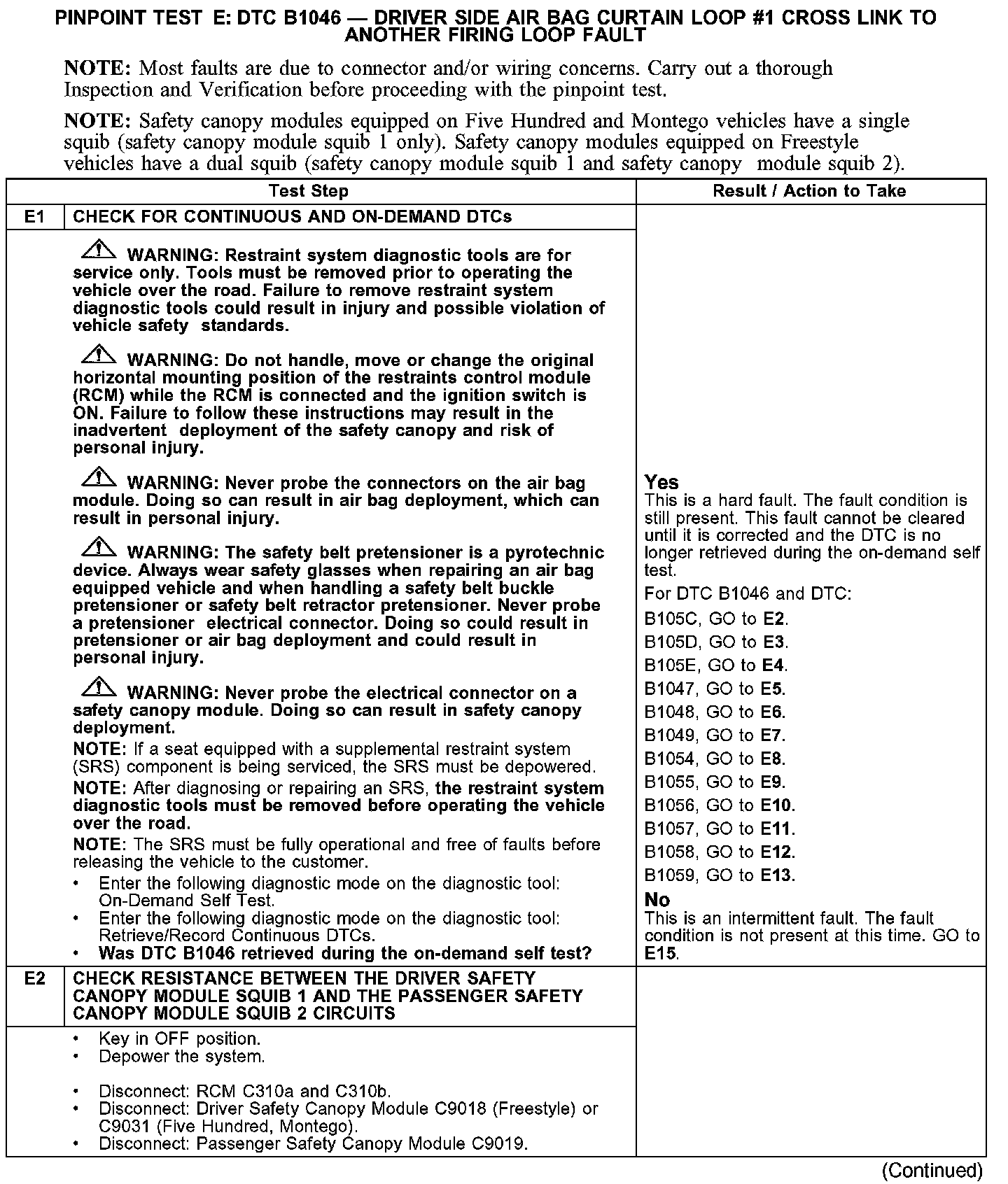

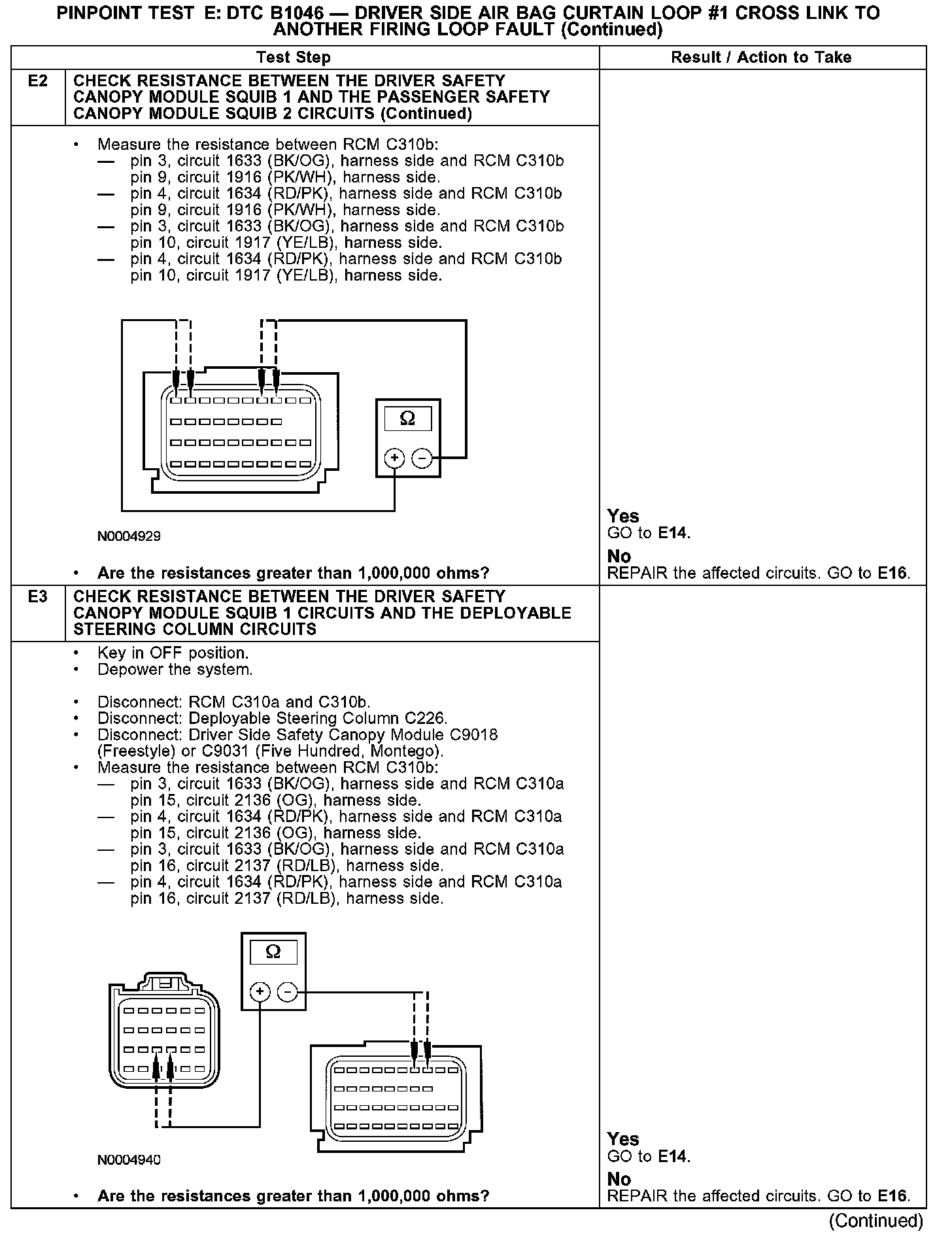

E1-E2:

E2-E3:

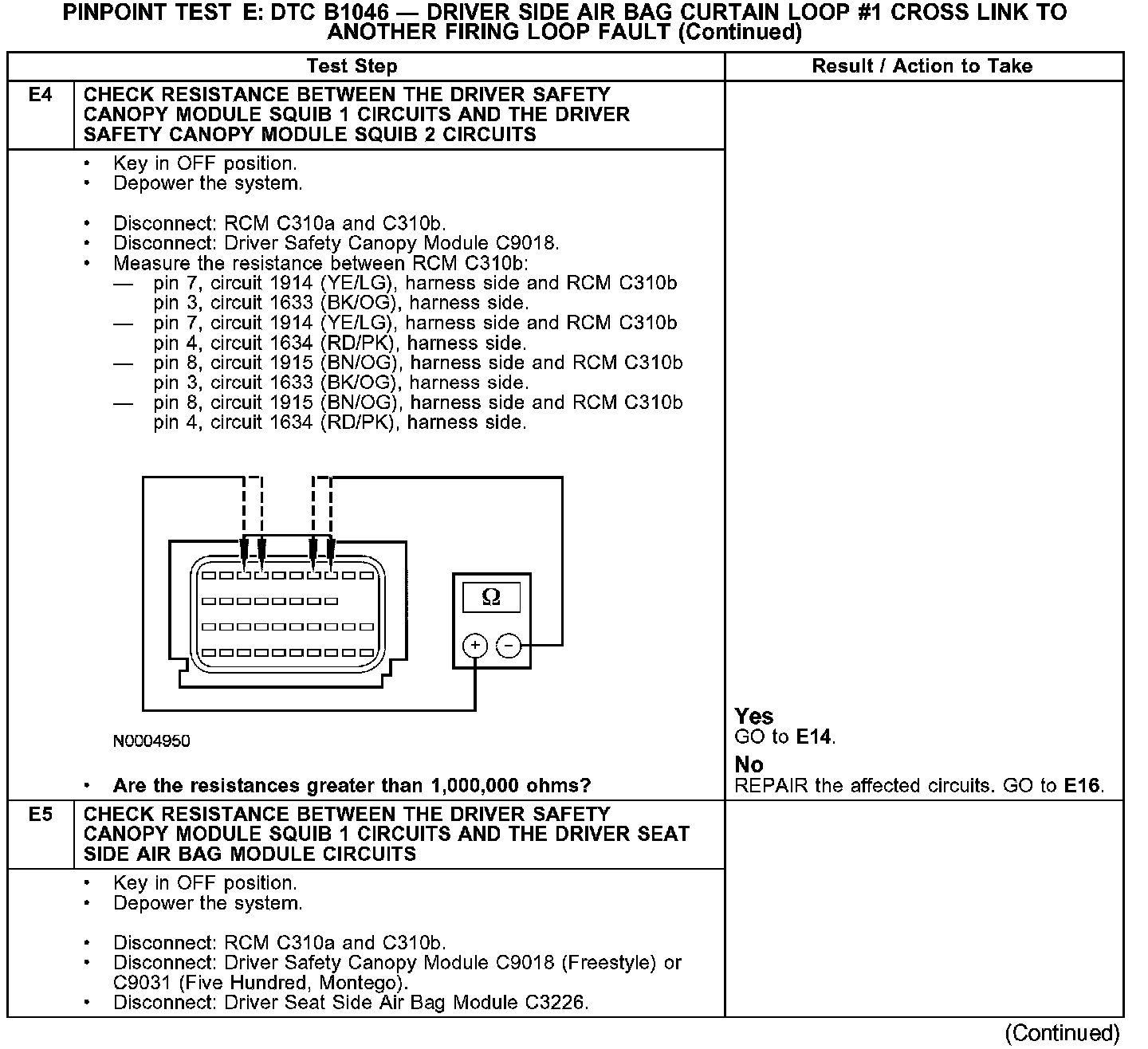

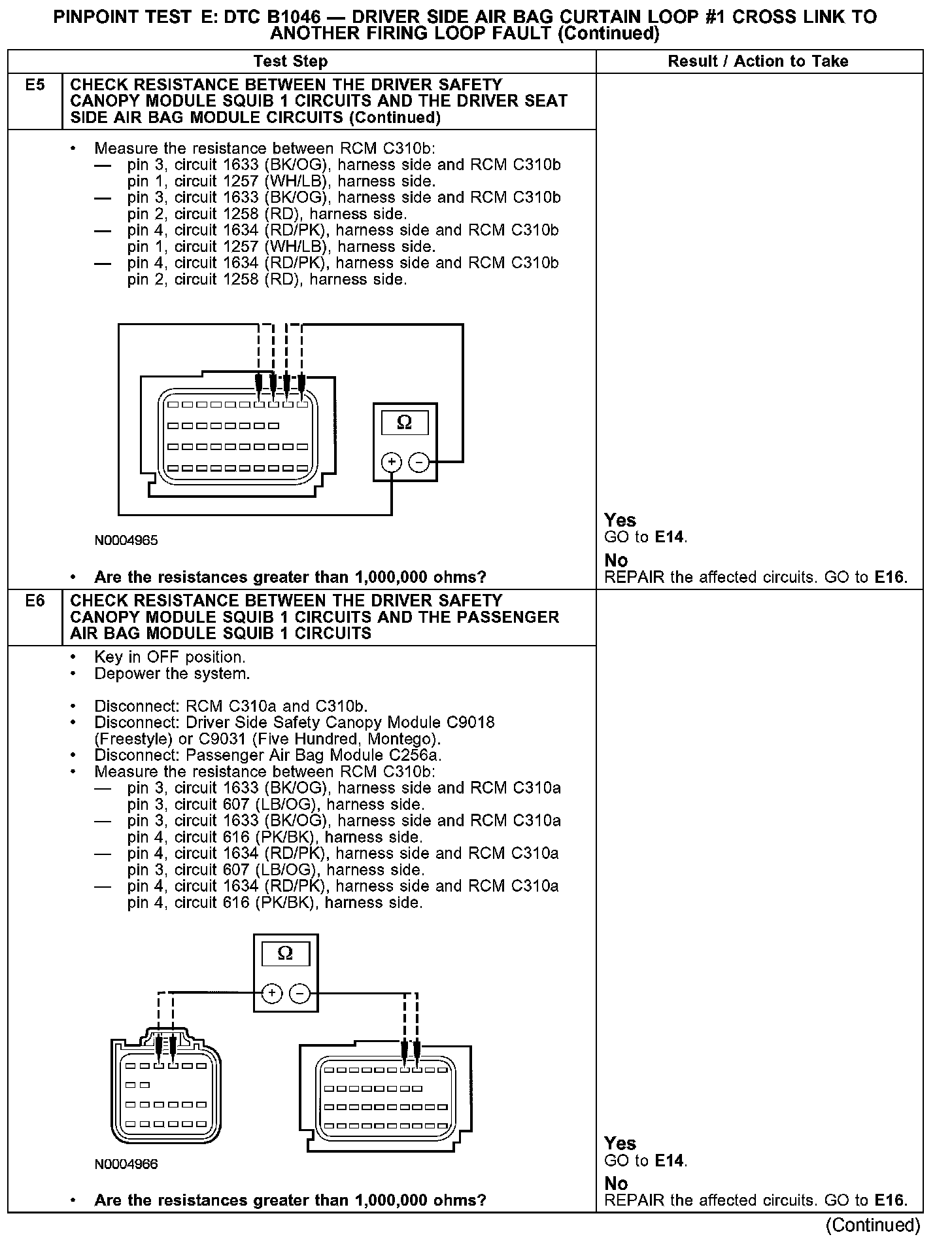

E4-E5:

E5-E6:

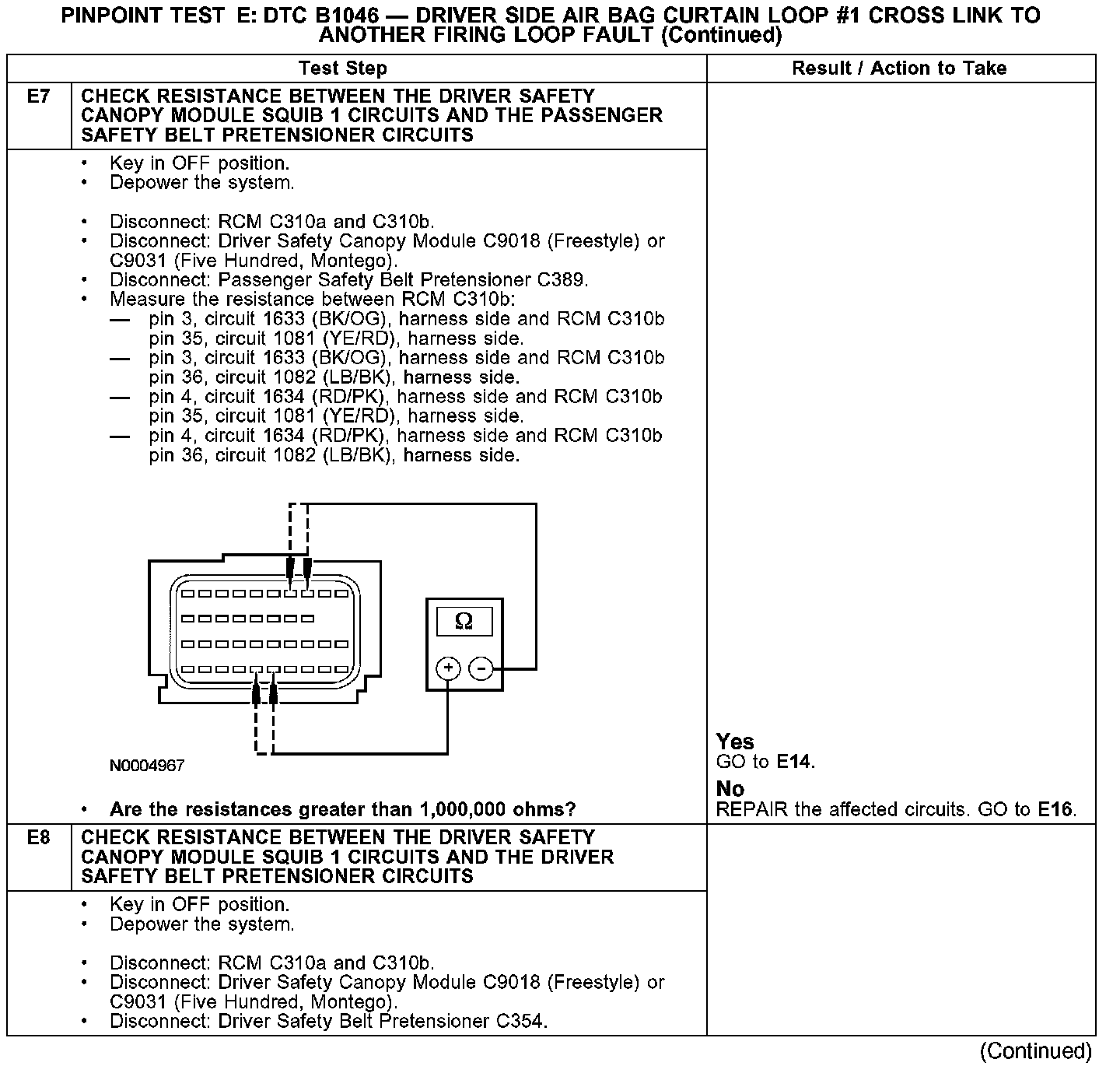

E7-E8:

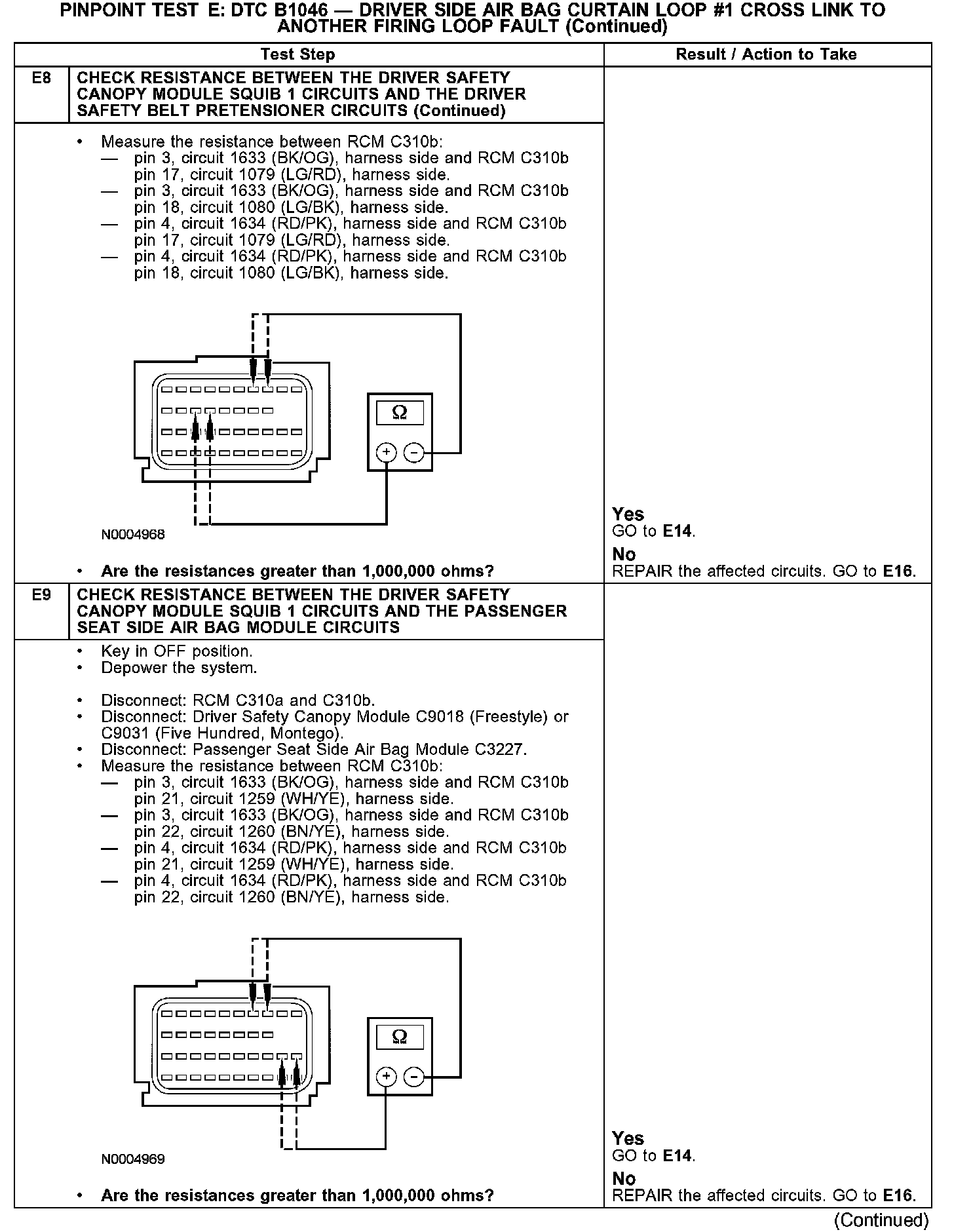

E8-E9:

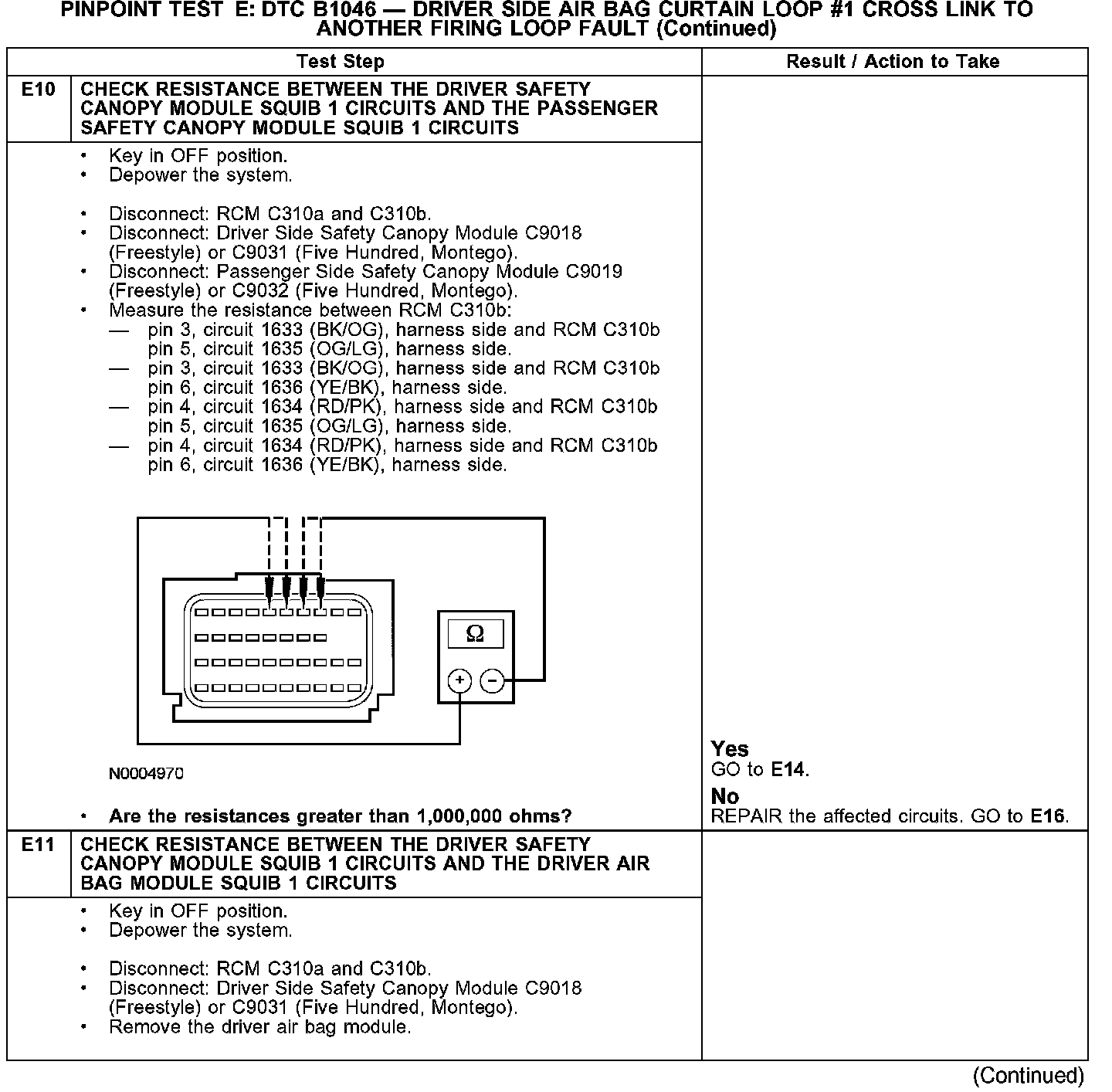

E10-E11:

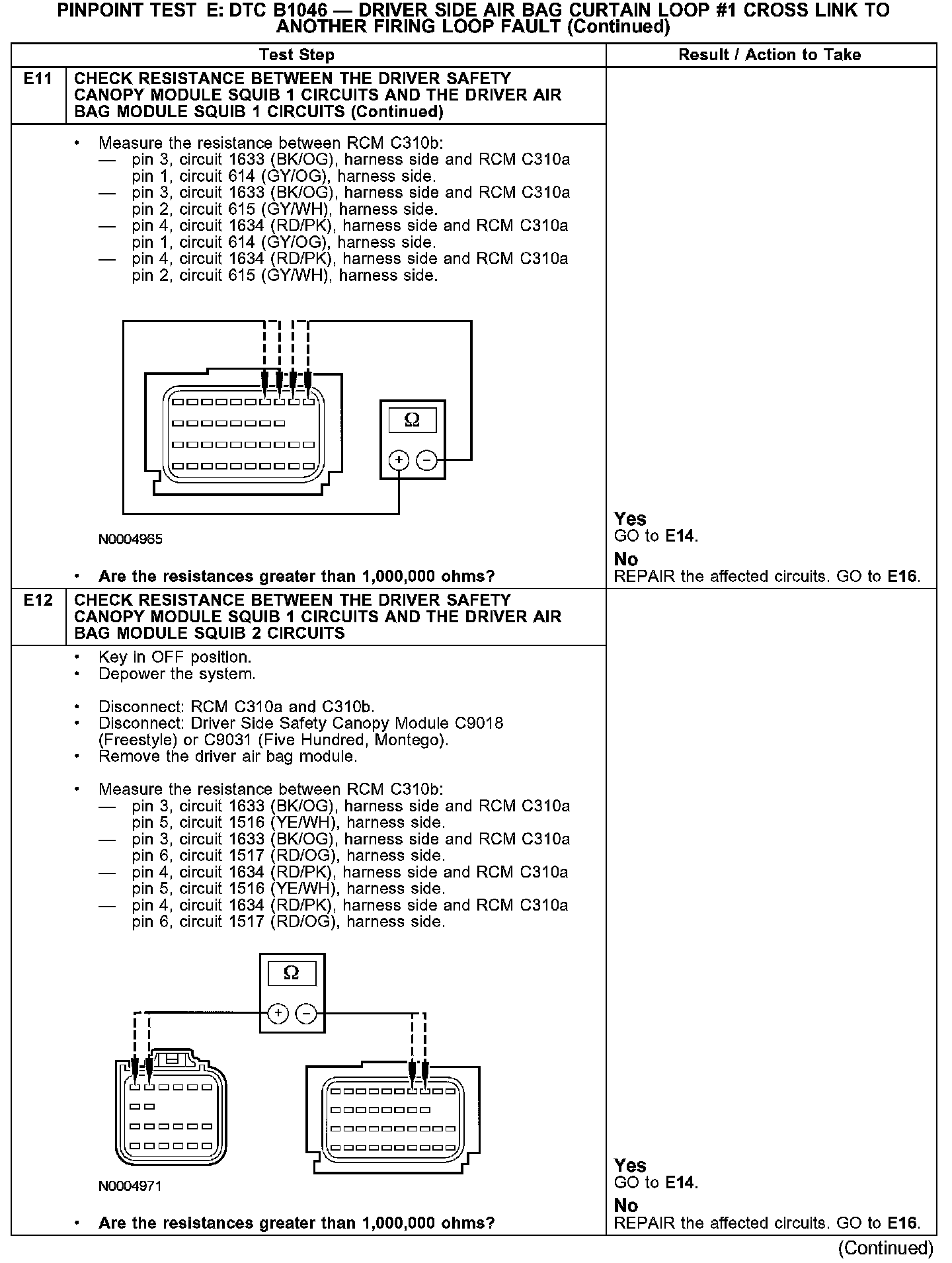

E11-E12:

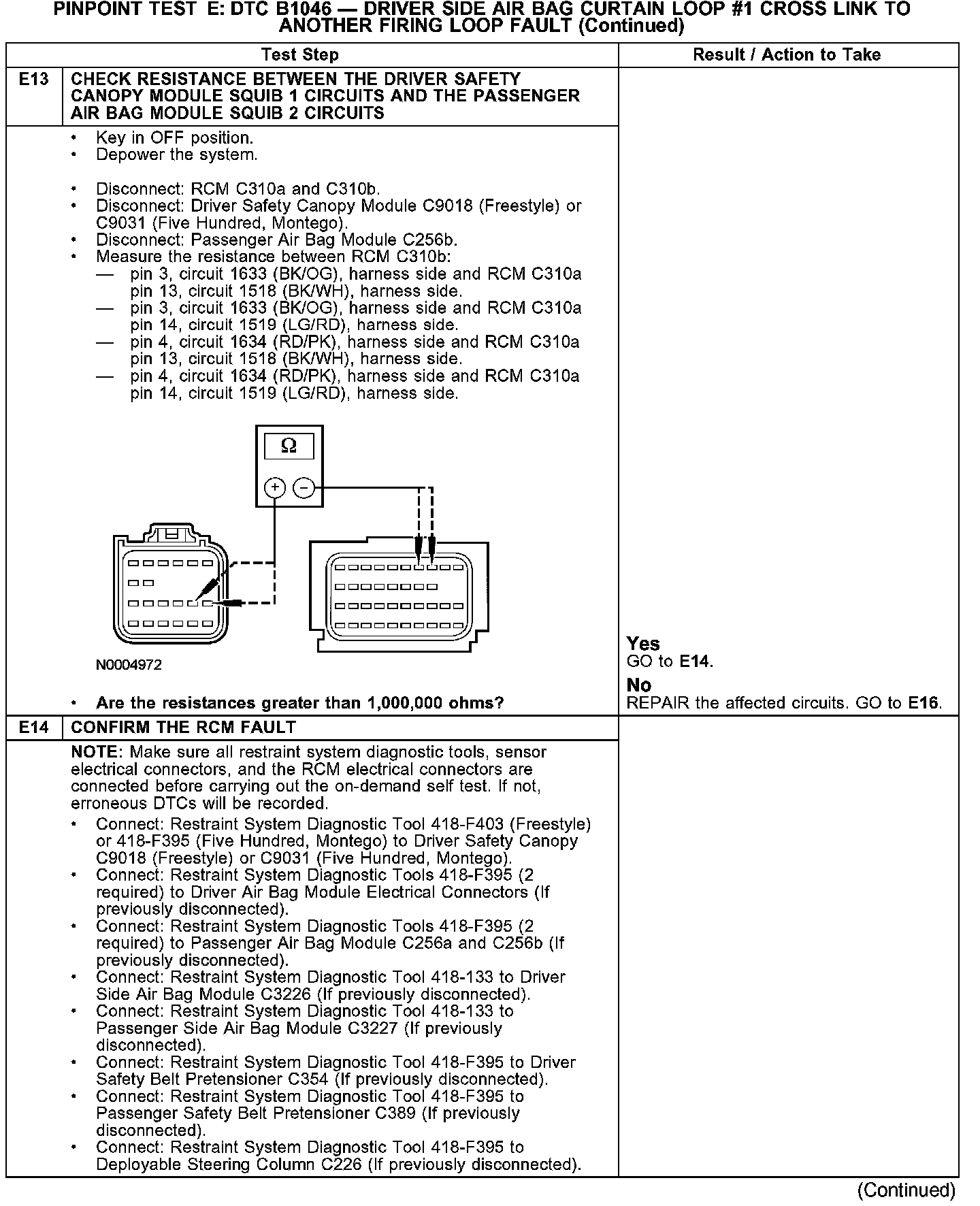

E13-E14:

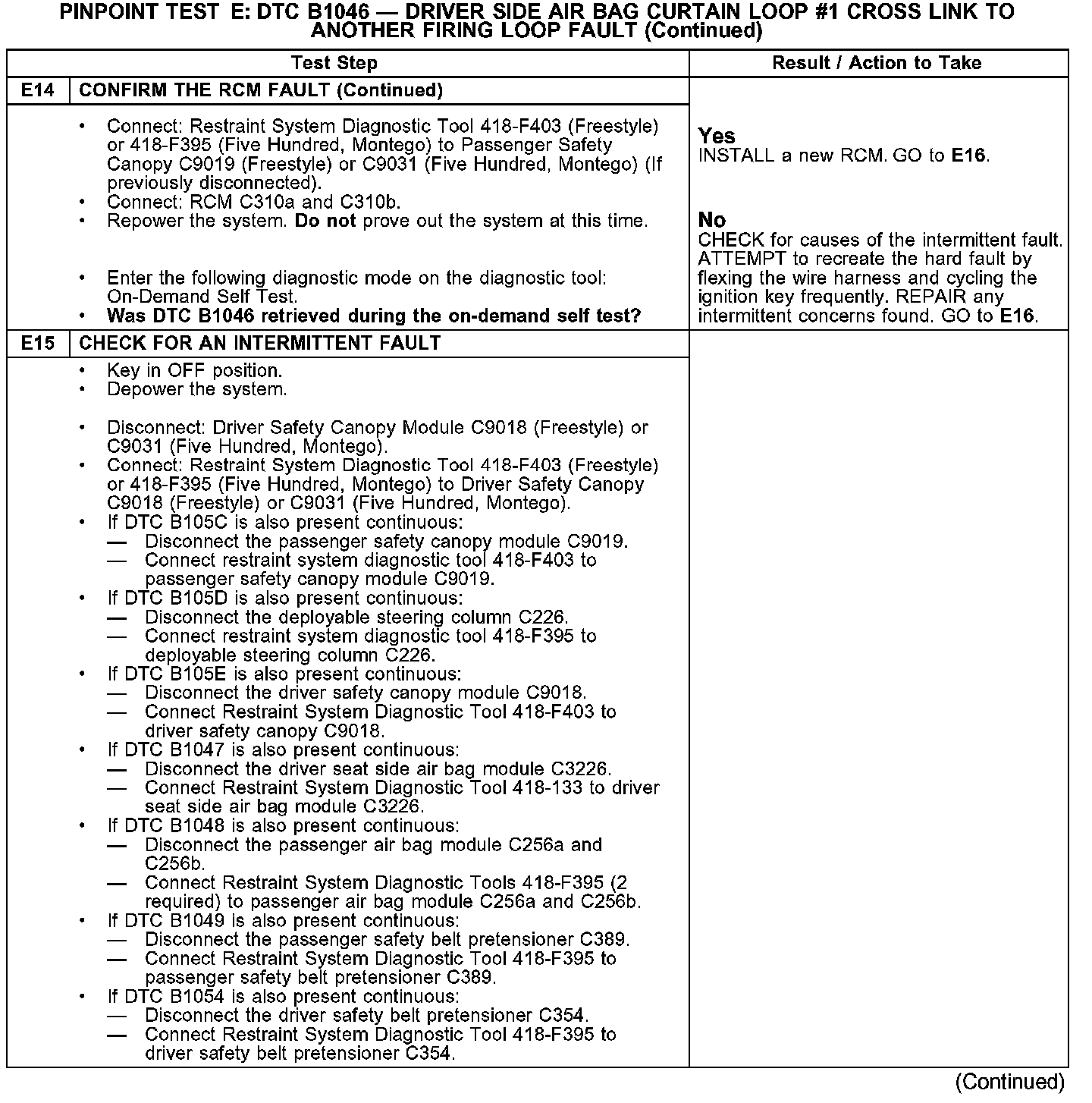

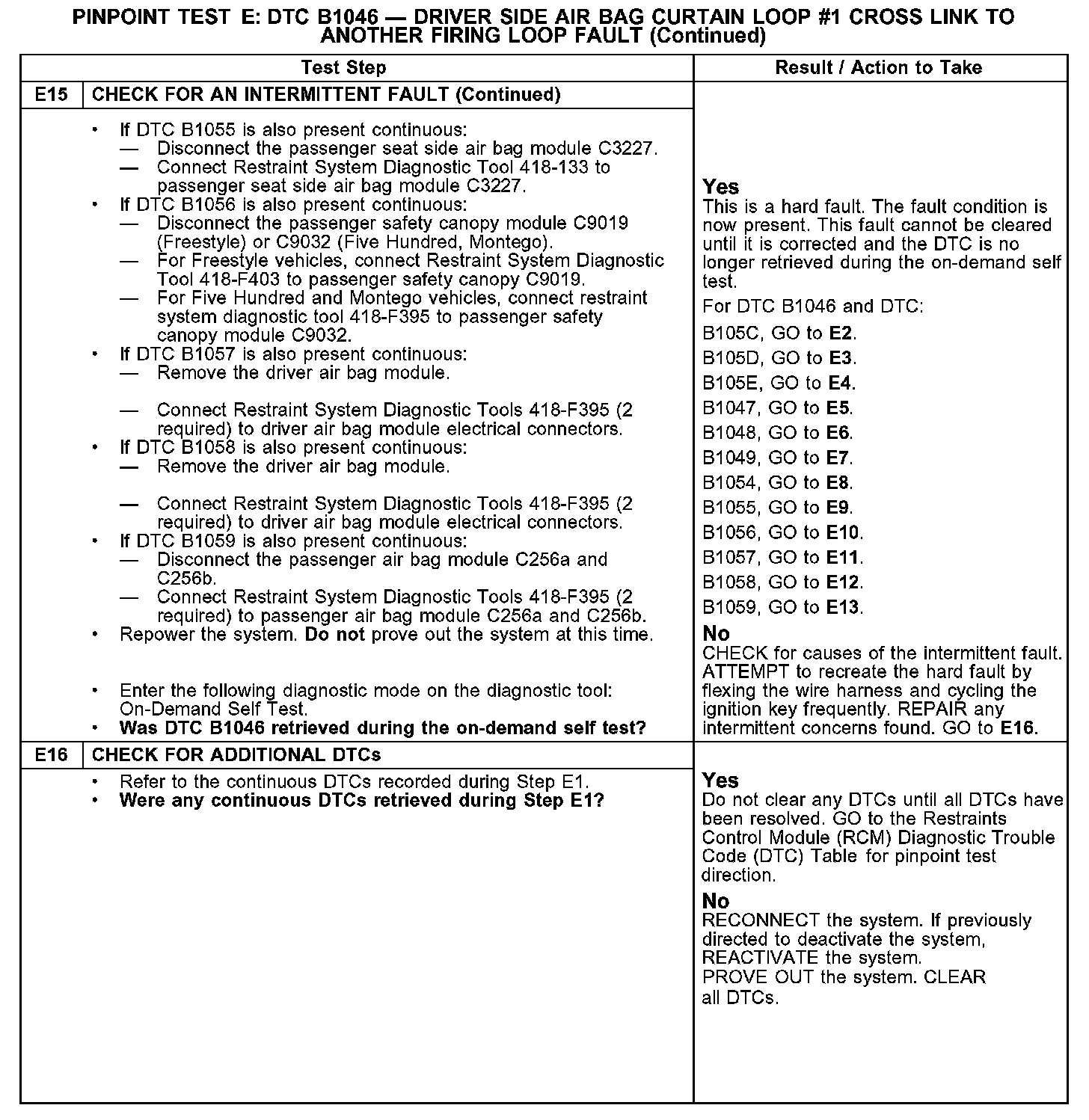

E14-E15:

E15-E16:

Normal Operation
The restraints control module (RCM) monitors all the deployable devices for a cross link between the circuits of another deployable device. If the RCM detects a short between the circuits of the driver safety canopy module squib 1 and another deployable device, it will store diagnostic trouble code (DTC) B1046 along with the DTC of the component it is cross linked to in memory and illuminate the air bag indicator.

Possible Causes
A cross link fault between the driver safety canopy module squib 1 and another deployable device can be caused by:
- damaged wiring, terminals or connectors.
- a faulted RCM.
