Fuel Pump Control Unit: Service and Repair

FUEL PUMP DRIVER MODULE (FPDM)







Removal and Installation

All vehicles
1. Disconnect the battery ground cable.

Five Hundred
2. Remove the rear seat cushion and the rear corner backrest.

Freestyle
3. Remove the C-pillar trim panel.

All vehicles

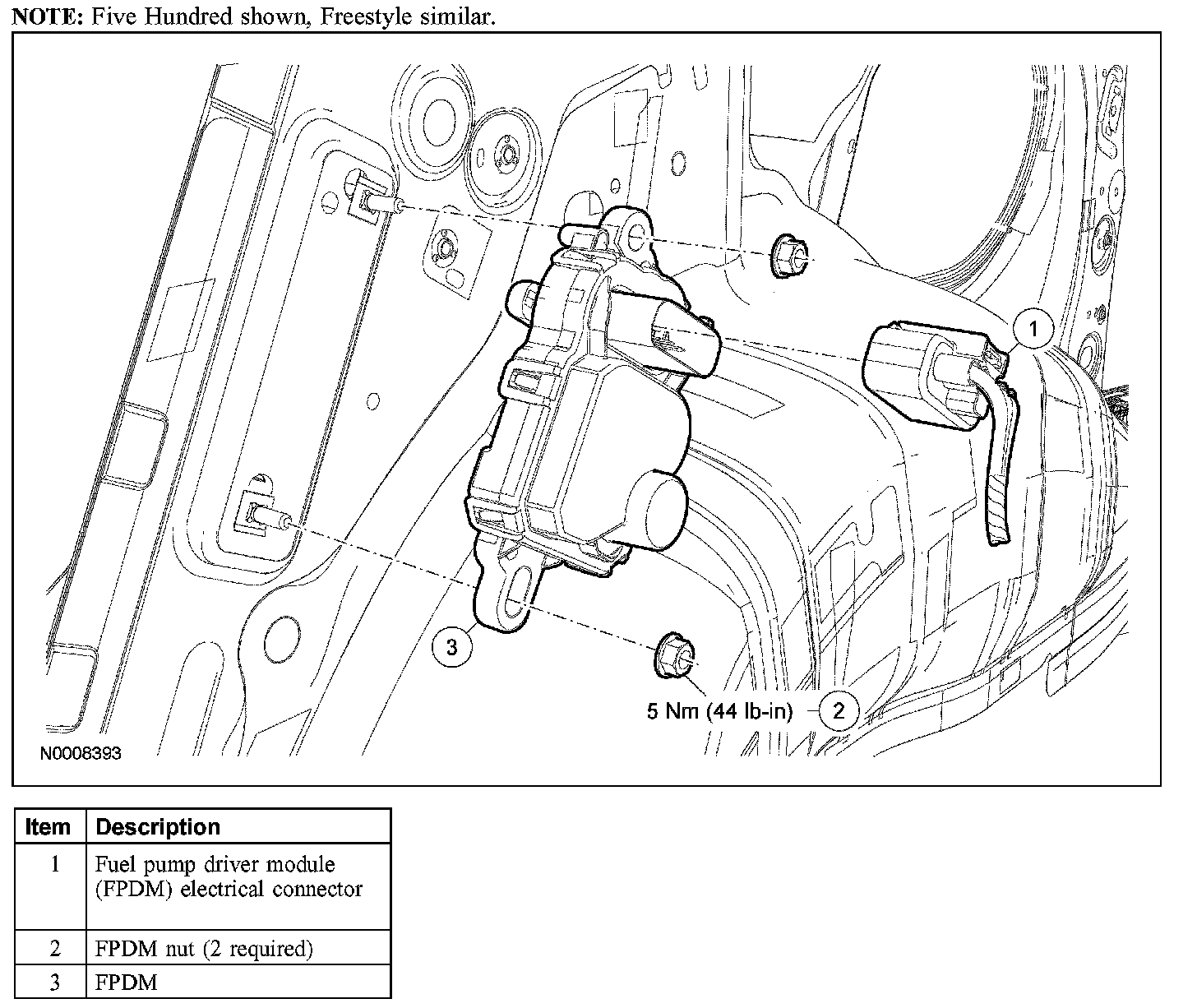

4. Disconnect the fuel pump driver module (FPDM) electrical connector.
5. Remove the 2 nuts and the FPDM.
- To install, tighten to 5 Nm (44 lb-in).

6. To install reverse the removal procedure.
