Parking Assist Control Module: Service and Repair

PARKING AID MODULE












Removal and Installation

Sedan
1. Remove the package tray trim panel.

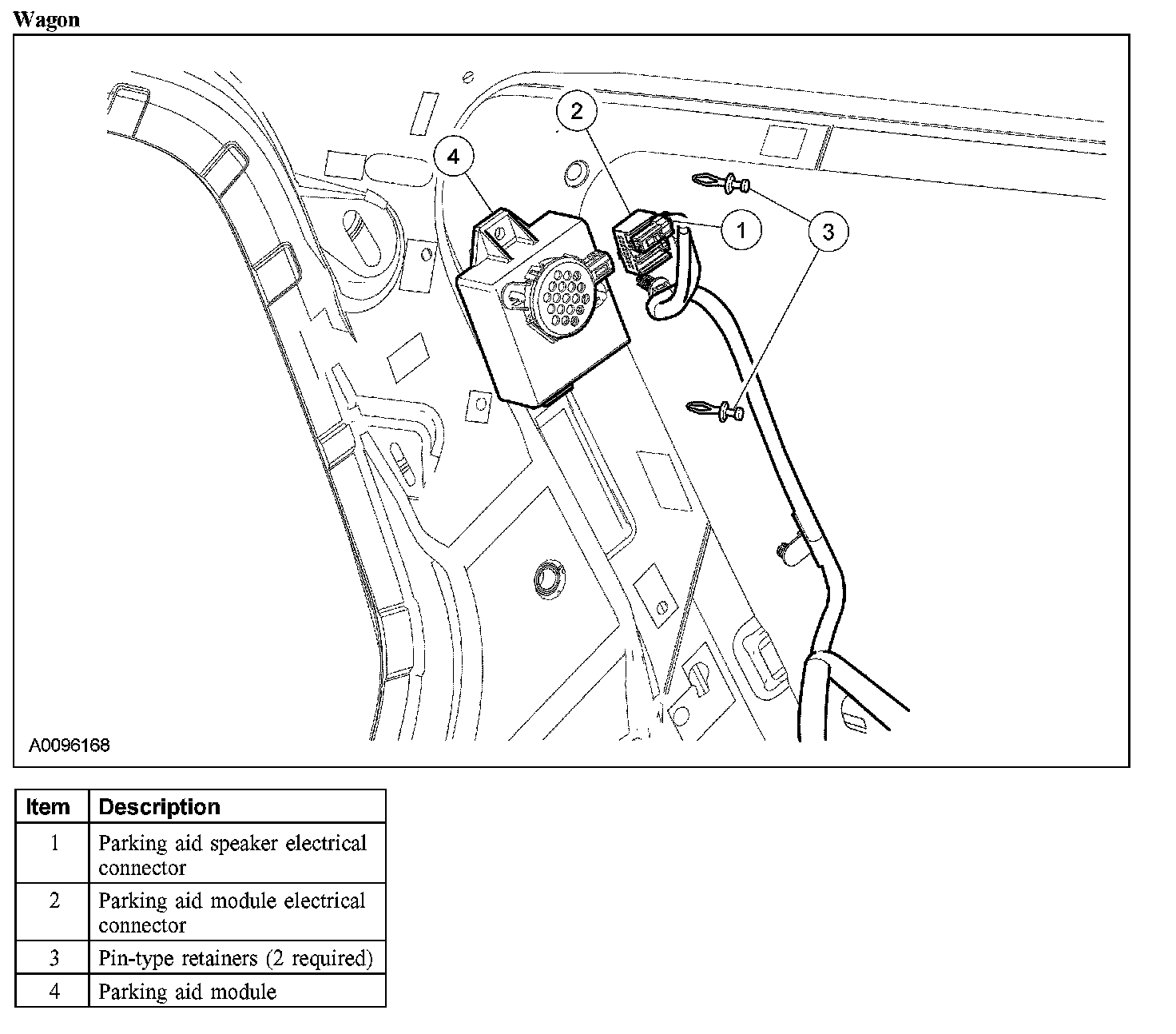

Wagon
2. Remove the LH C-pillar trim panel.

All vehicles
3. Disconnect the parking aid speaker electrical connector.
4. Disconnect the parking aid module electrical connector.
5. Remove the 2 pin-type retainers and the parking aid module.
6. To install, reverse the removal procedure.
