Shift Indicator - A/T: Service and Repair

SELECTOR LEVER INDICATOR BULB

Removal and Installation

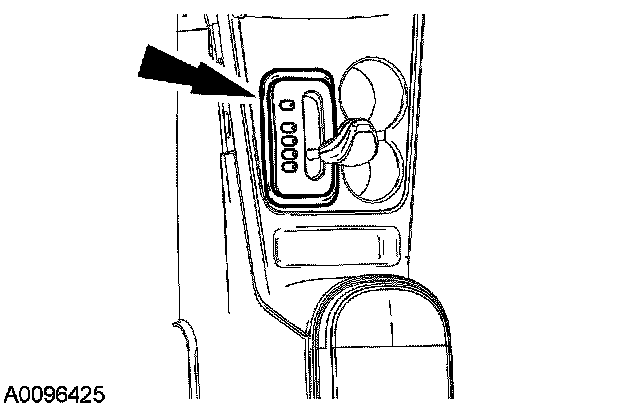

1. Remove the floor console trim bezel.
2. Remove the transmission selector lever knob.







3. Remove the transmission selector lever bezel and position aside.

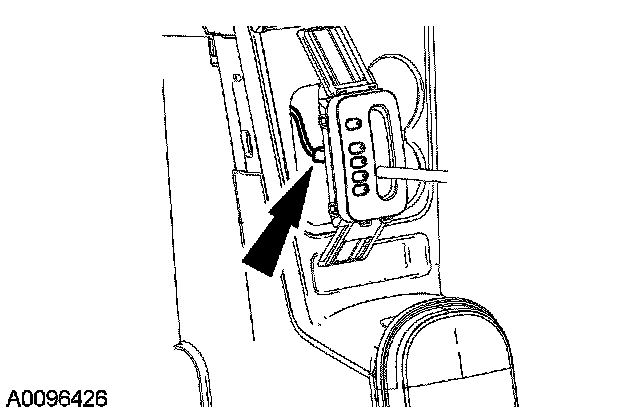

- Remove the selector lever indicator bulb socket and the bulb.

4. To install, reverse the removal procedure.
