Leak Detection Valve: Service and Repair

EVAPORATIVE EMISSION CANISTER VENT SOLENOID

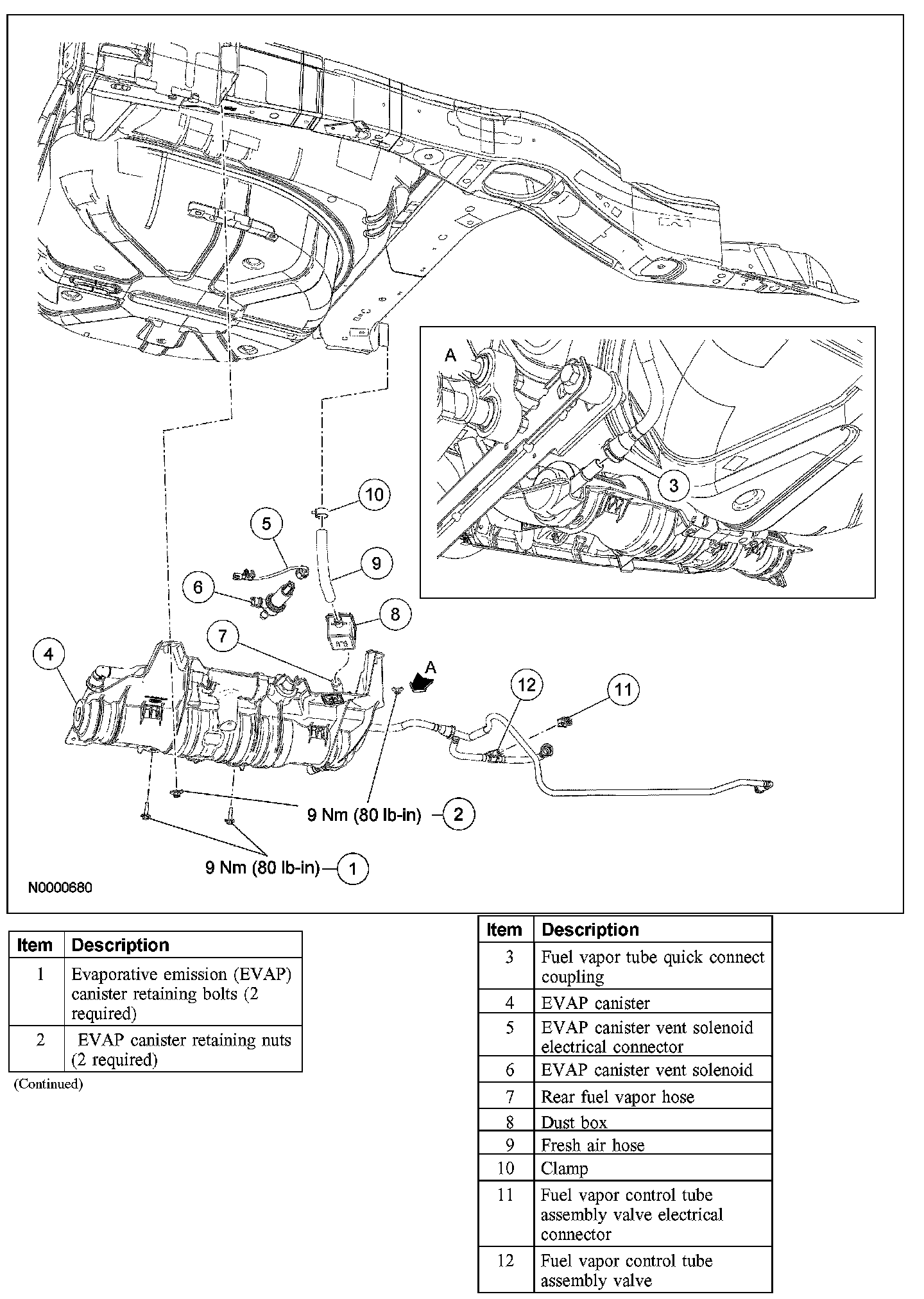

Exploded View


Removal and Installation
1. Remove the evaporative emission (EVAP) canister.

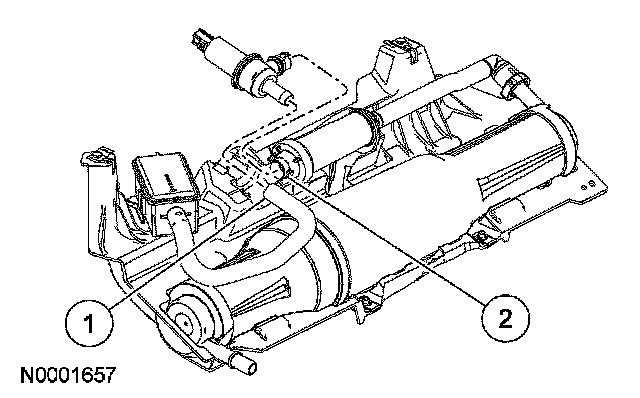

2. Remove the EVAP canister vent solenoid.
1 Remove the rear fuel vapor hose.
2 Remove the EVAP canister vent solenoid from the carbon canister.

3. To install, reverse the removal procedure.
