Home
>>
Mercury
>>
2005
>>
Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Tests KJ: Supercharger Bypass Control
Tests KJ: Supercharger Bypass Control
PINPOINT TEST KJ: SUPERCHARGER BYPASS CONTROL

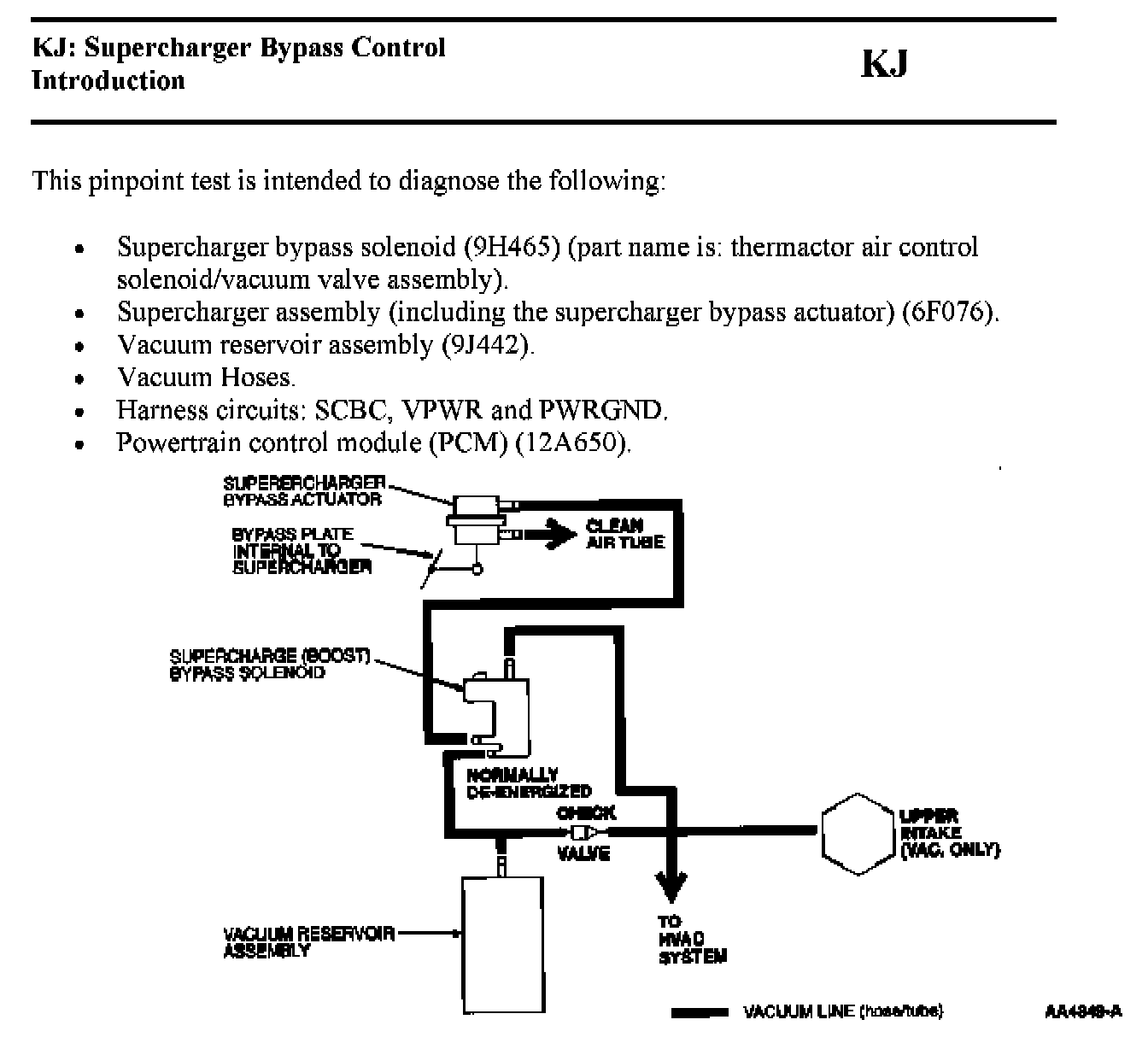

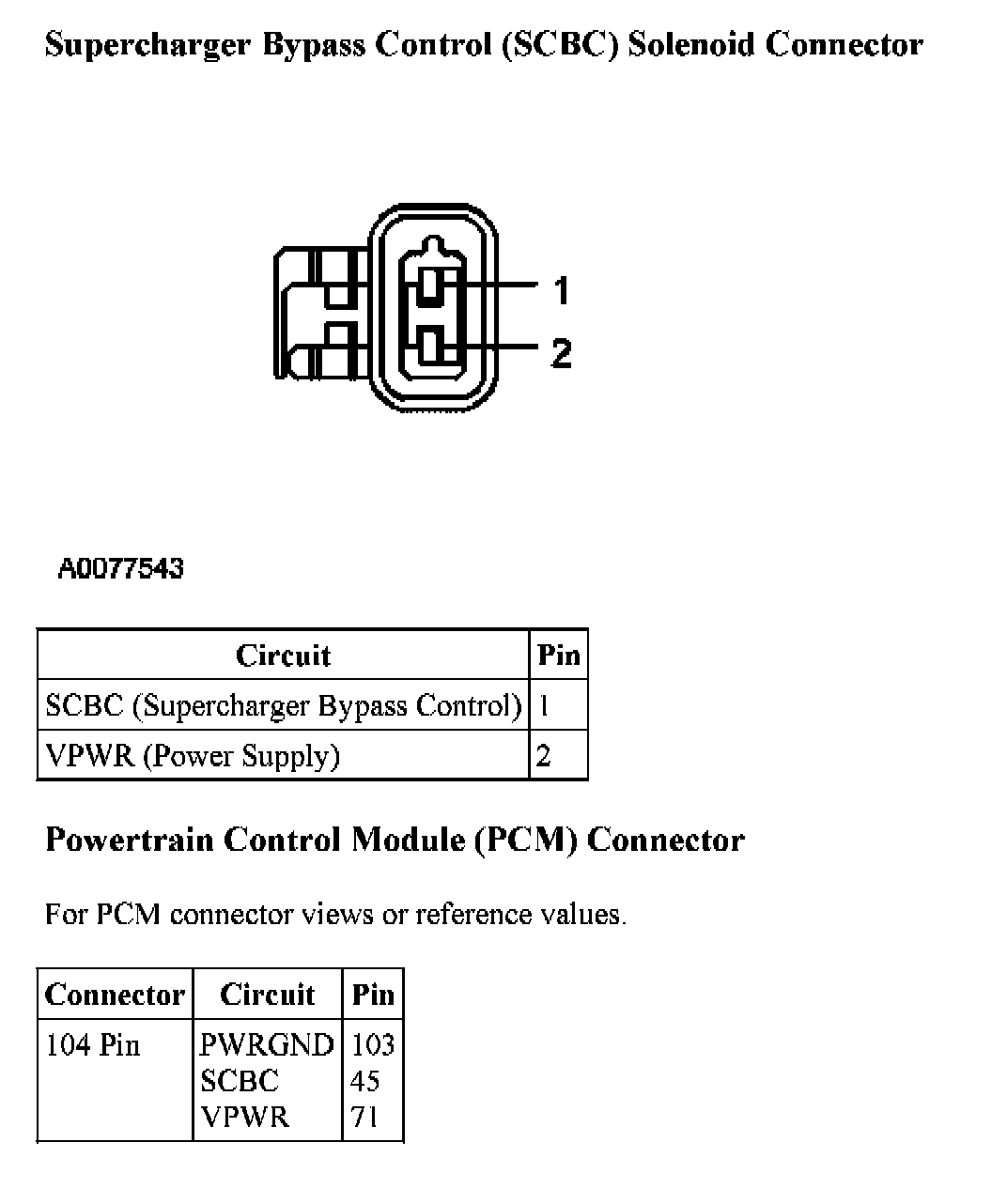

KJ Introduction:
KJ Introduction:

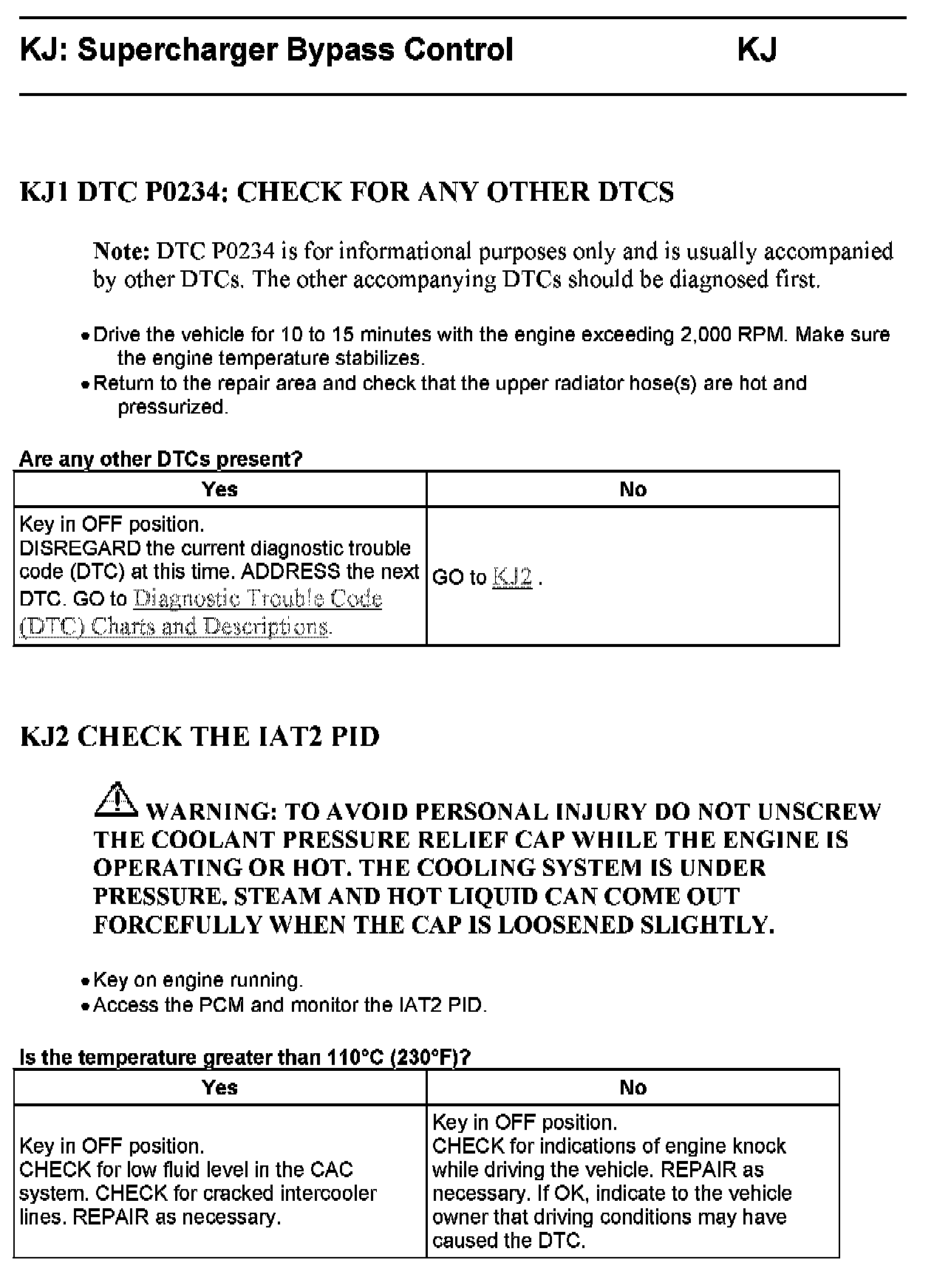

KJ1 - KJ2:

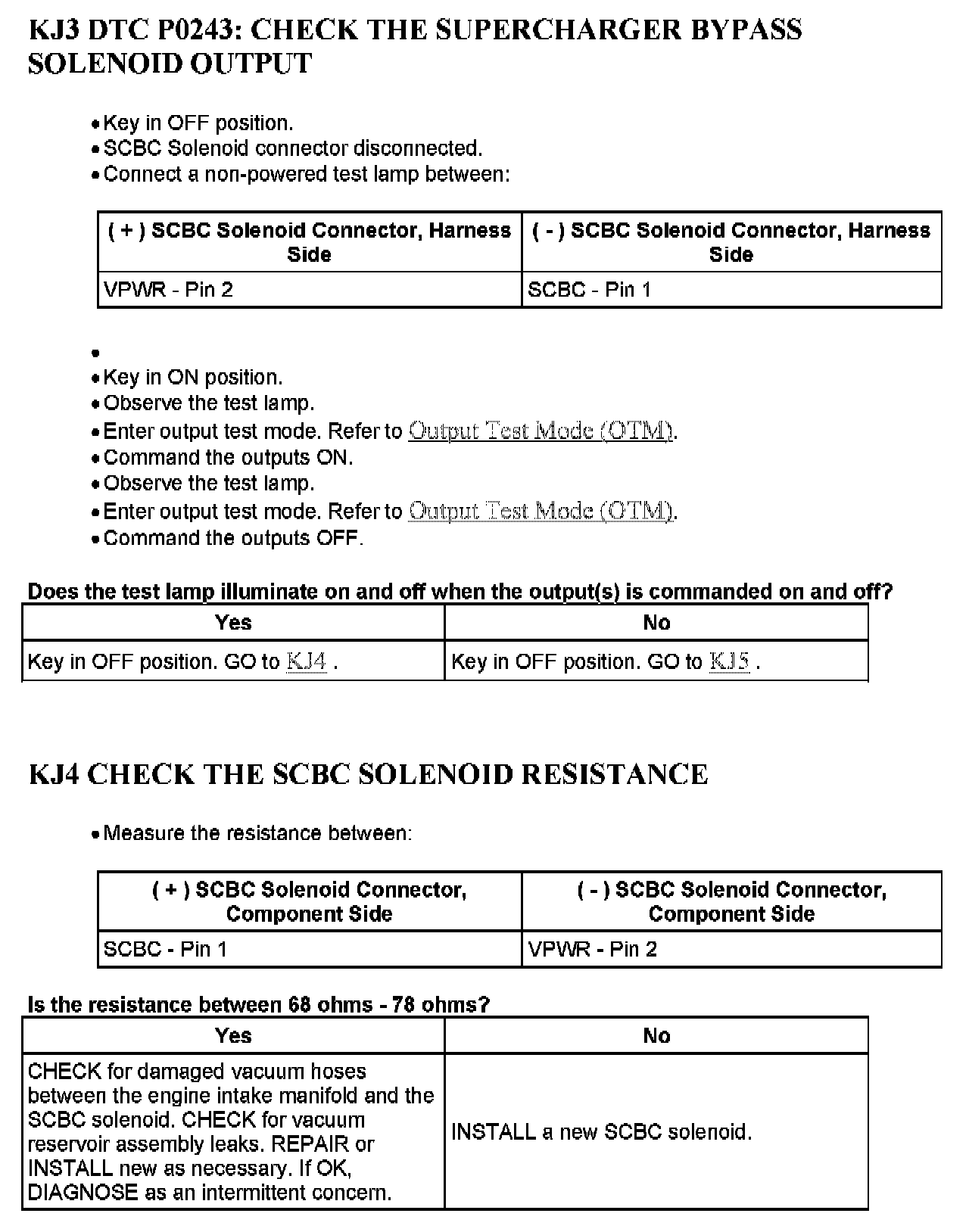

KJ3 - KJ4:

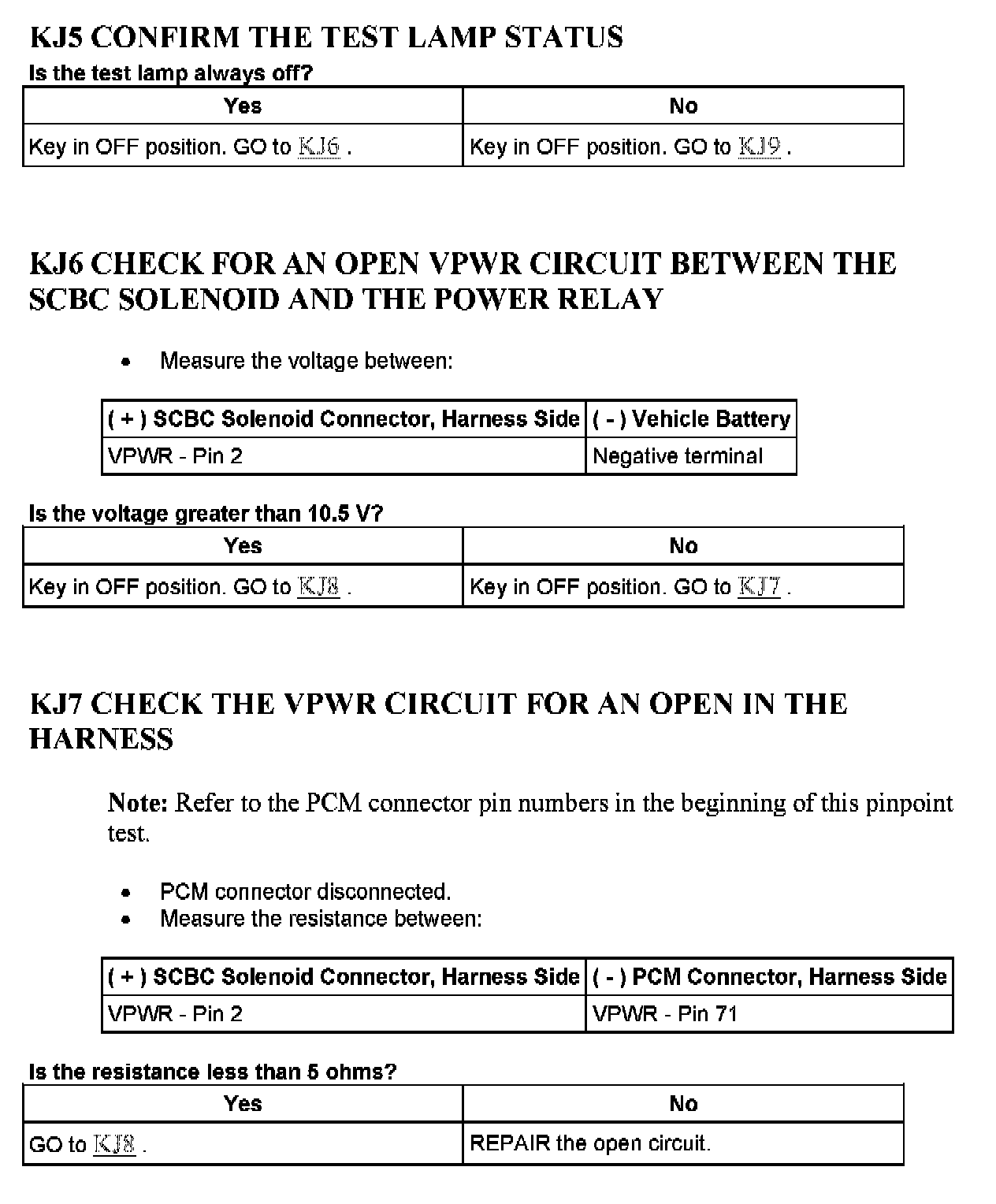

KJ5 - KJ7:

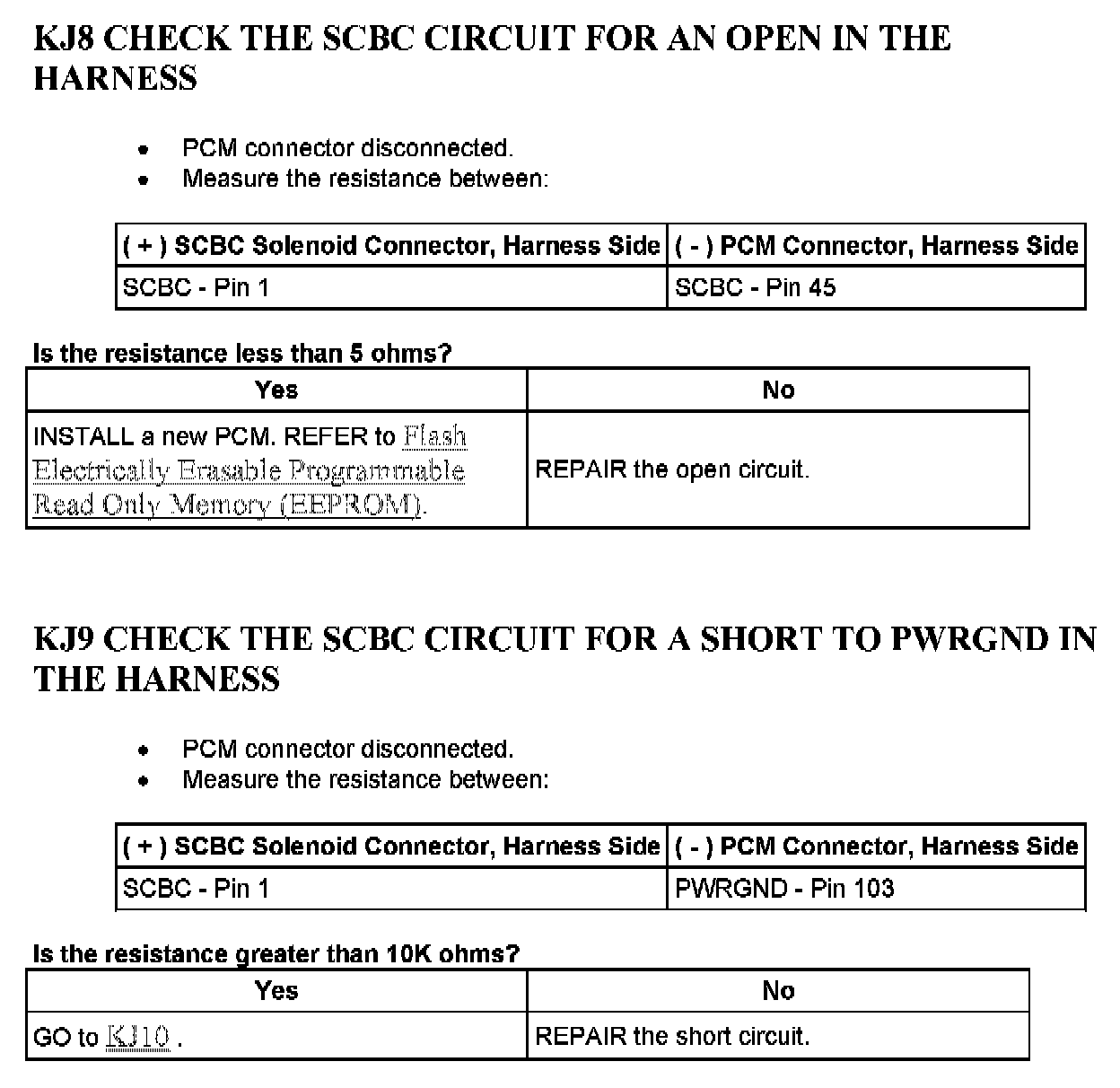

KJ8 - KJ9:

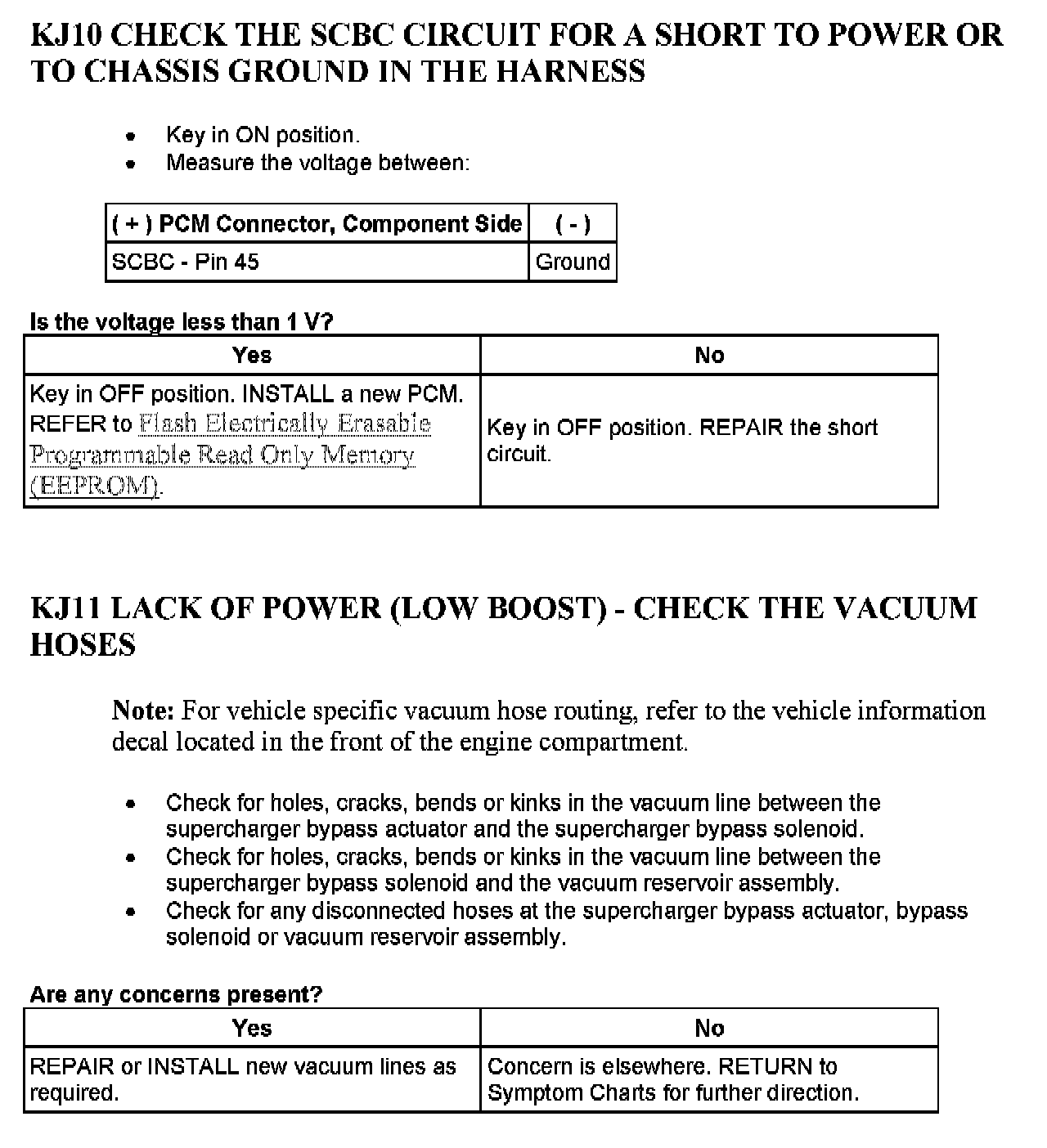

KJ10 - KJ11:
