Inspection and Verification

INSPECTION AND VERIFICATION

1. Visually inspect for obvious signs of electrical damage.

VISUAL INSPECTION CHART

Electrical
- Wiring harness
- Connectors

Configurable Modules
The vehicle contains the following modules that are configurable:
- anti-lock brake system (ABS) module
- audio unit
- driver seat module (DSM)
- instrument cluster
- PCM
- restraint control module (RCM)
- smart junction box (SJB)

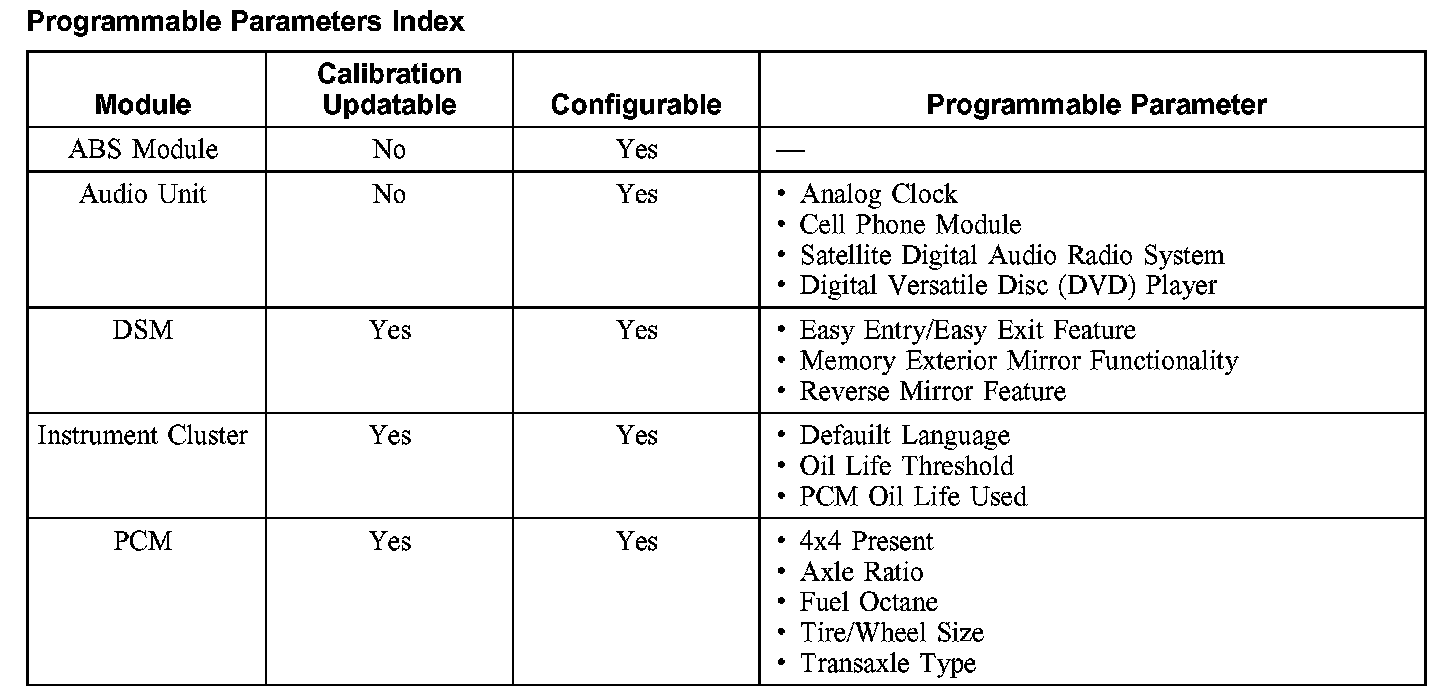

Programmable Parameters Index (Part 1):

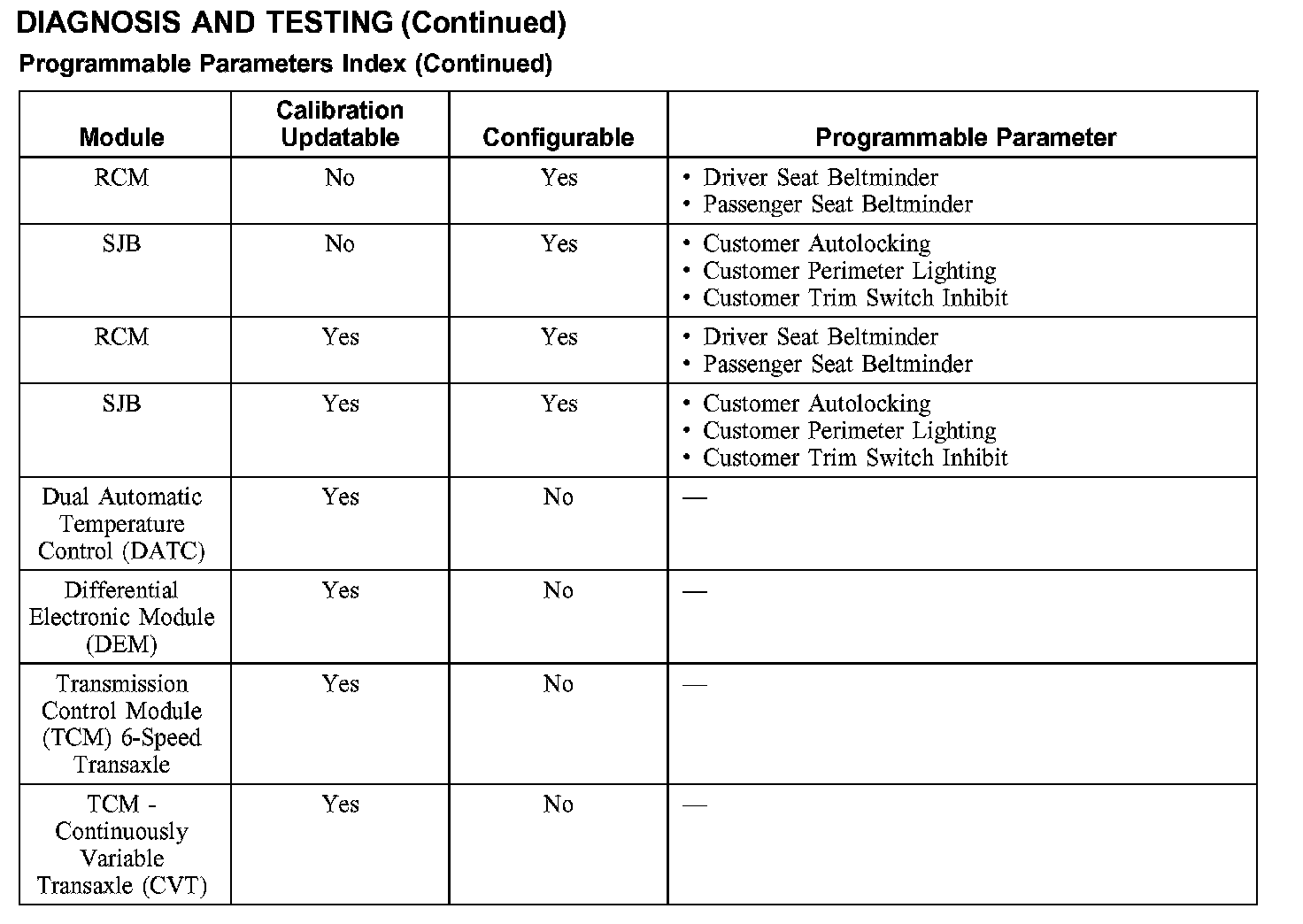

Programmable Parameters Index (Part 2):

Programmable Parameters Index
