Drive Belt: Service and Repair

Accessory Drive Belt

Removal and Installation
1. Using a suitable belt tensioner release tool, rotate the accessory drive belt tensioner counterclockwise and remove the accessory drive belt.

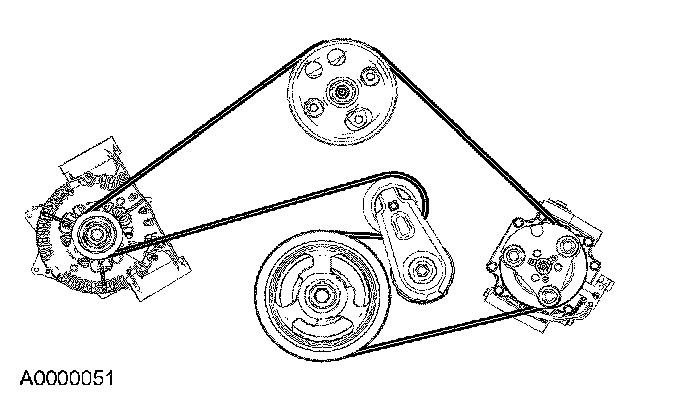

2. NOTE: Refer to the illustration for correct drive belt routing.





To install, reverse the removal procedure.
