Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Turn Signals >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> Park / Turn / Stop Lamps >> RH Front Parking/Turn Lamp C1043

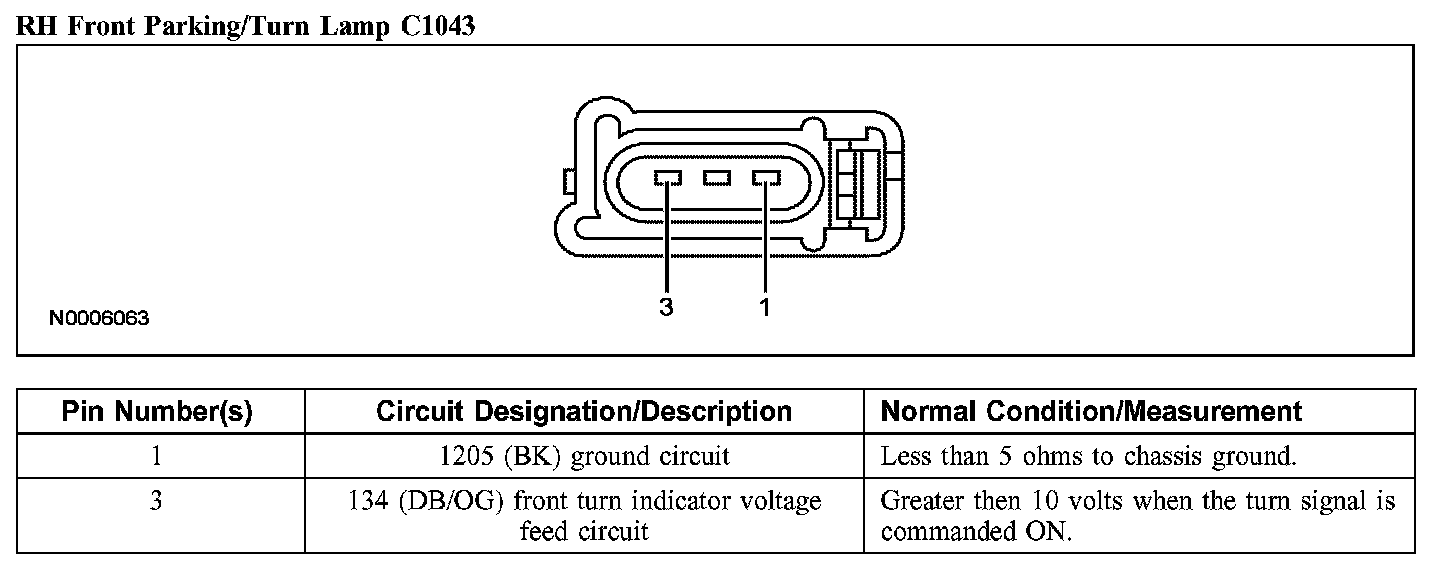

RH Front Parking/Turn Lamp C1043

RH Front Parking/Turn Lamp C1023:
