Tail Lamp: Service and Repair

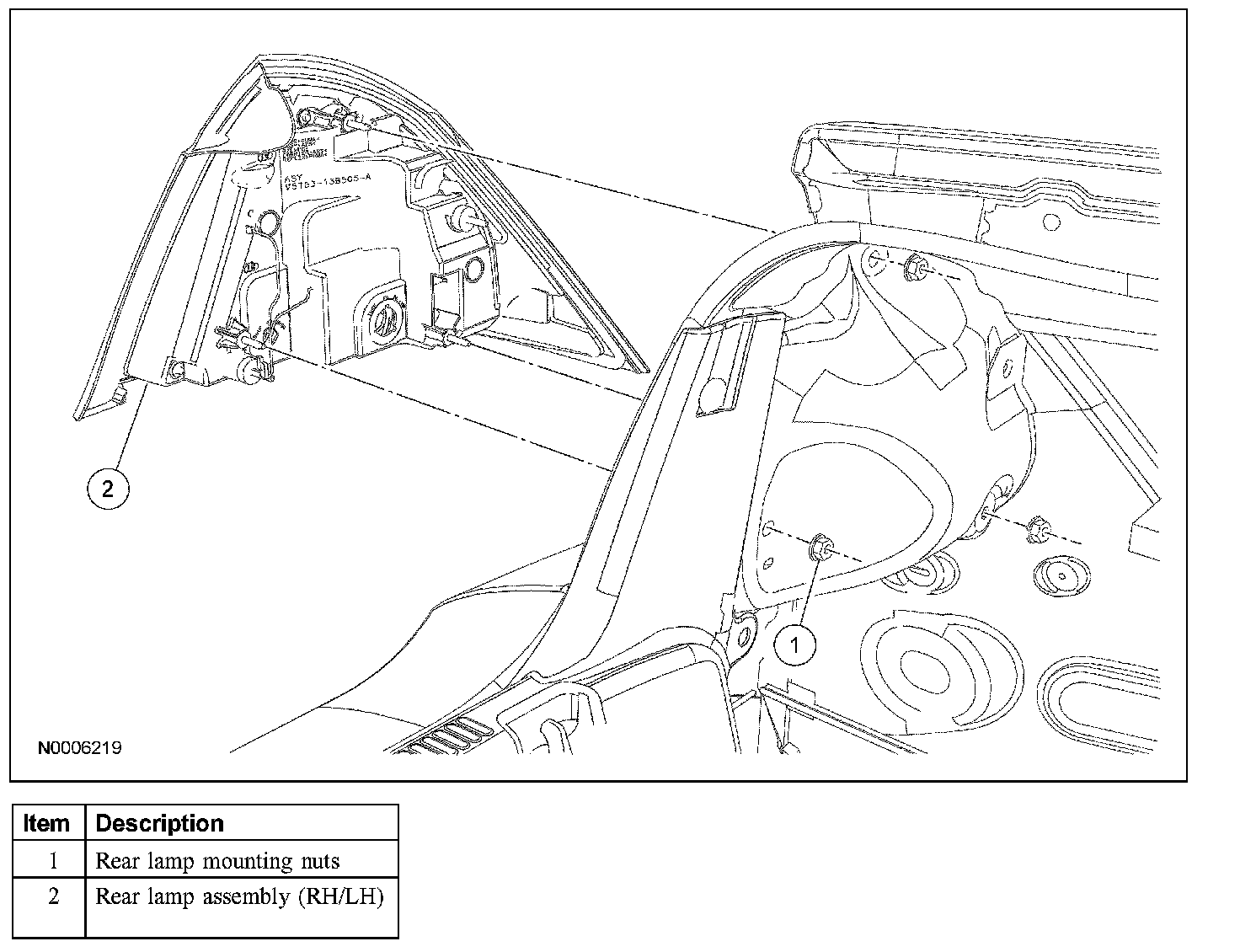

REAR LAMP ASSEMBLY







Removal and Installation
1. Remove the 3 rear lamp mounting nuts.
2. Remove the rear lamp assembly.
3. Disconnect the electrical connector.
4. To install, reverse the removal procedure.
