Horn: Service and Repair

HORN







Removal and Installation

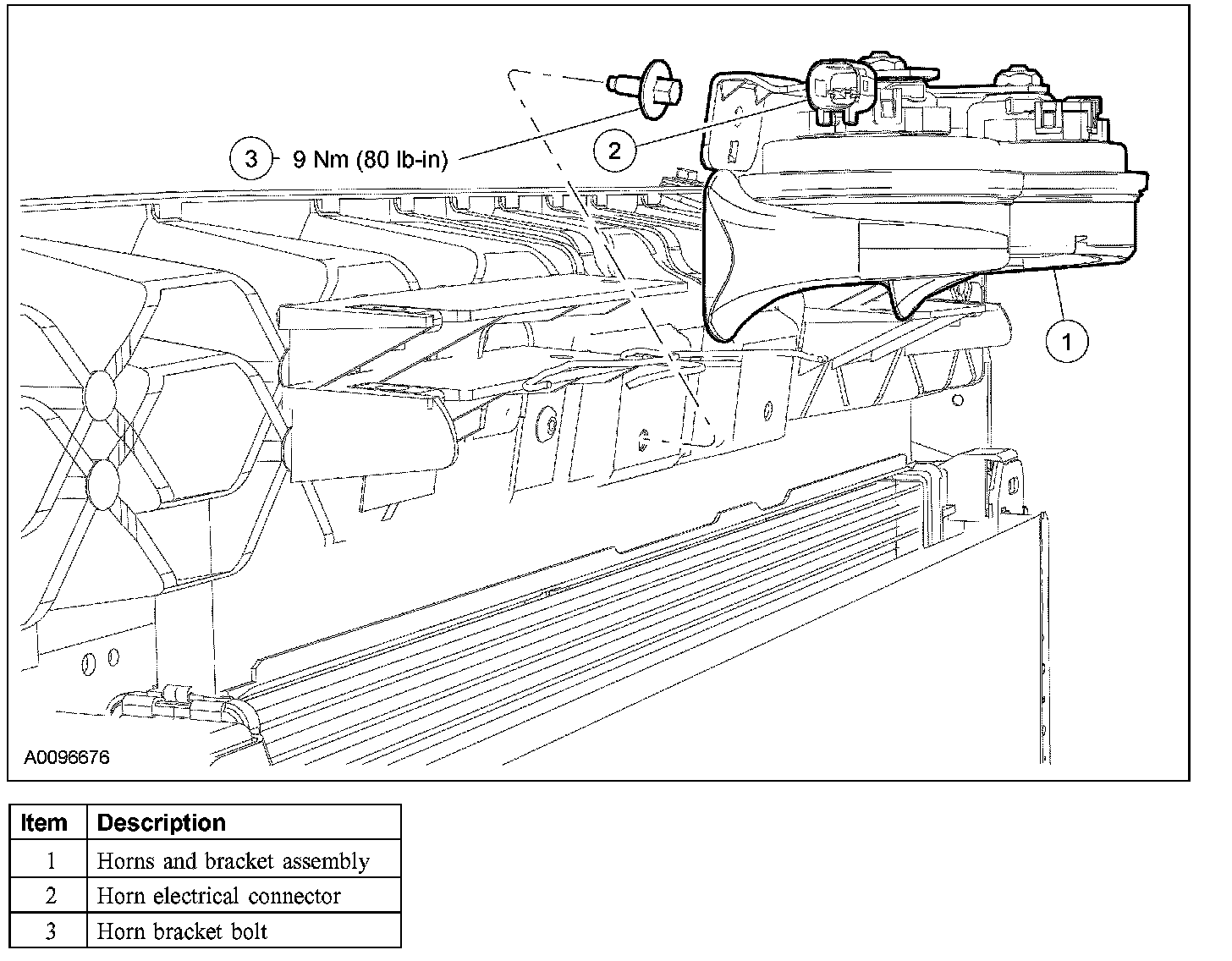

1. NOTE: The horns and bracket are installed as an assembly.

Remove the horn bracket bolt and the horn assembly.
- Disconnect the electrical connector.
- To install, tighten to 9 Nm (80 lb-in).

2. To install, reverse the removal procedure.
