Montego AWD V6-3.0L VIN 1
>>
Repair and Diagnosis
>>
Lighting and Horns
>>
Headlamp
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Headlamps
>>
Connector Circuit Reference
>>

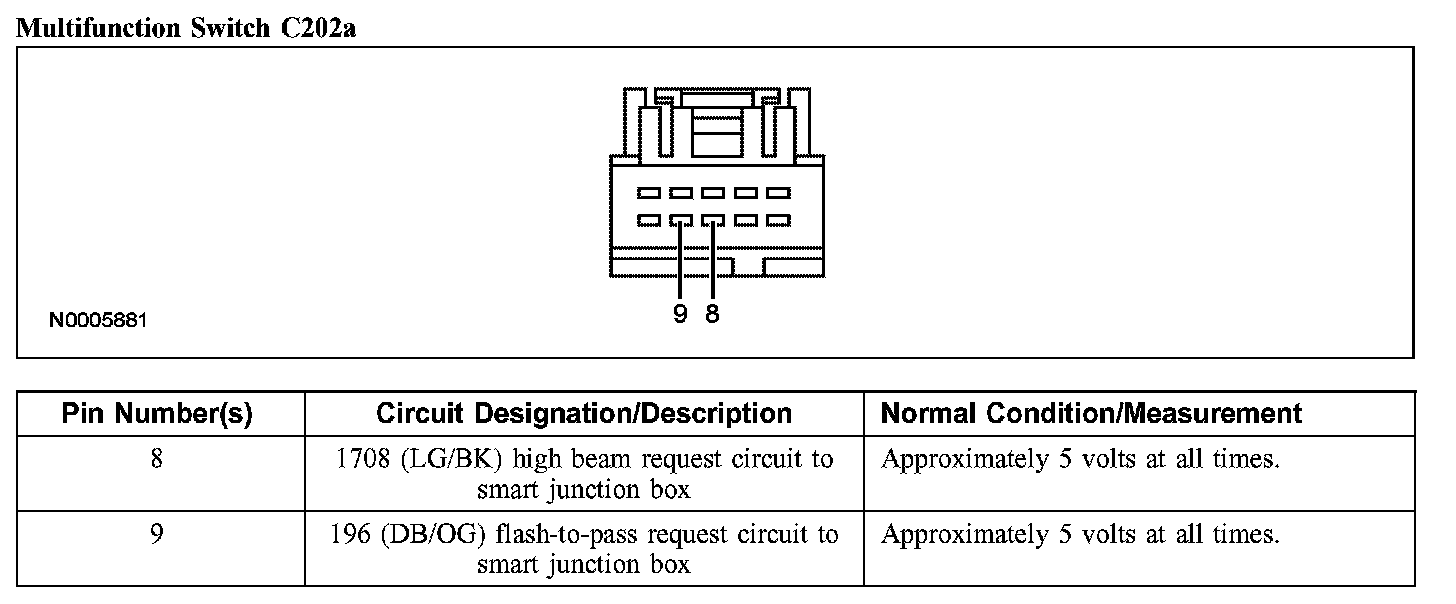

Multifunction Switch C202a
Multifunction Switch C202a
Multifunction Switch C202a:
