Headlamp: Service and Repair

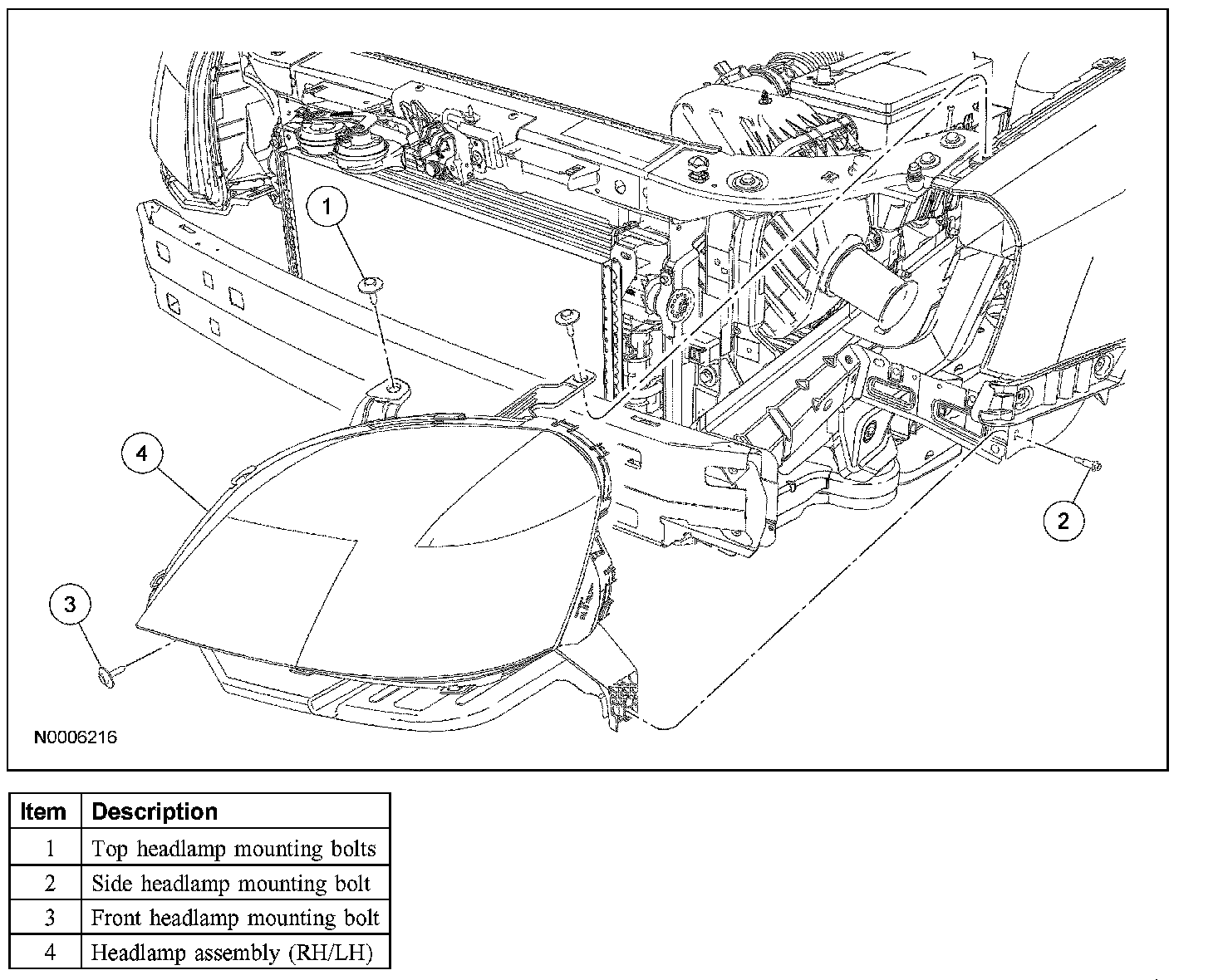

HEADLAMP ASSEMBLY







Removal and Installation
1. Remove the front bumper cover.
2. Remove the 2 top headlamp mounting bolts.
3. Remove the side headlamp mounting bolt.
4. Remove the front headlamp mounting bolt.
5. Remove the bulbs from the headlamp assembly.
6. Remove the headlamp assembly.
7. To install, reverse the removal procedure.
