Home >> Mercury >> 2005 >> Montego AWD V6-3.0L VIN 1 >> Repair and Diagnosis >> Lighting and Horns >> Fog/Driving Lamp >> Testing and Inspection >> Pinpoint Tests >> Connector Circuit Reference >> LH Fog Lamp C152

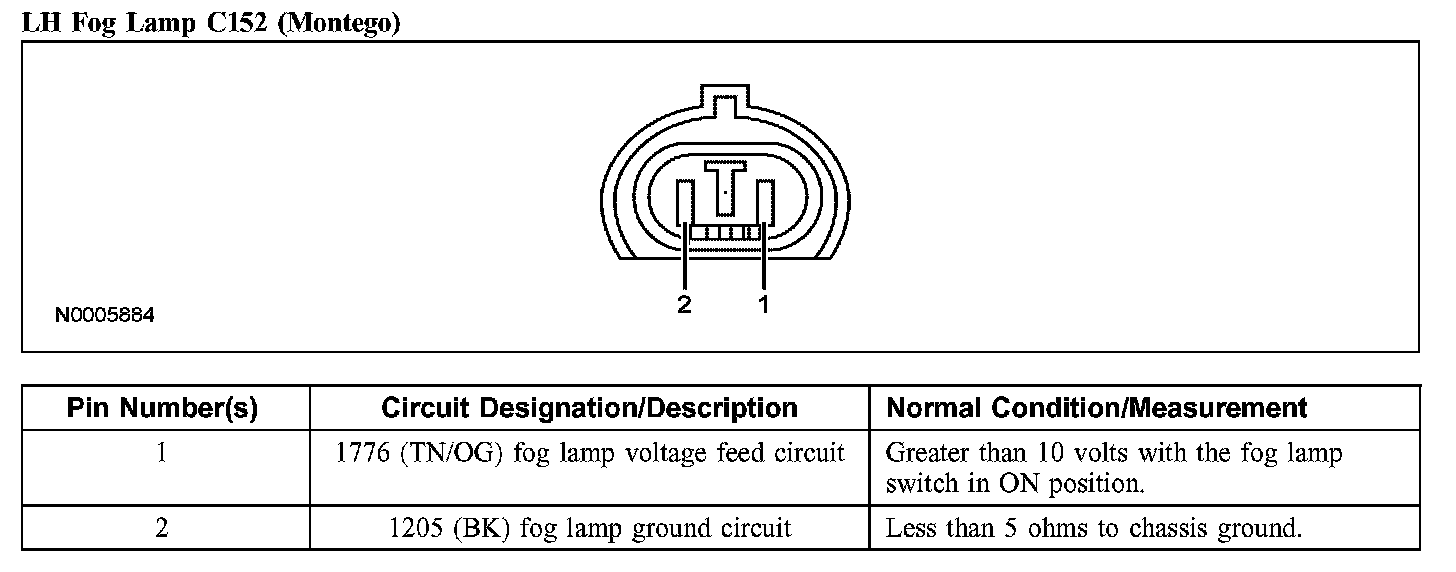

LH Fog Lamp C152

LH Fog Lamp C152:
