Test I: The Illuminated Entry is Inoperative

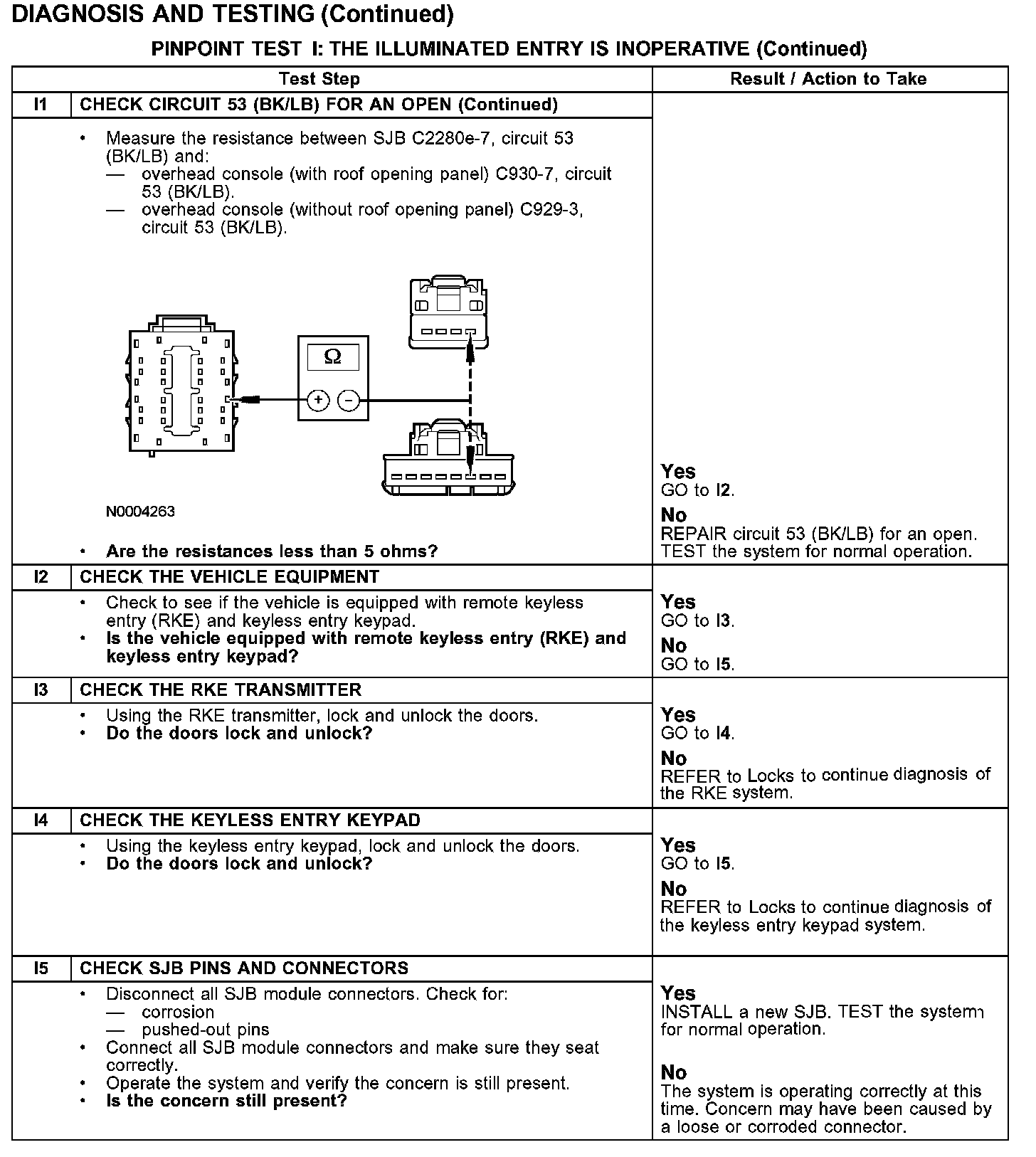

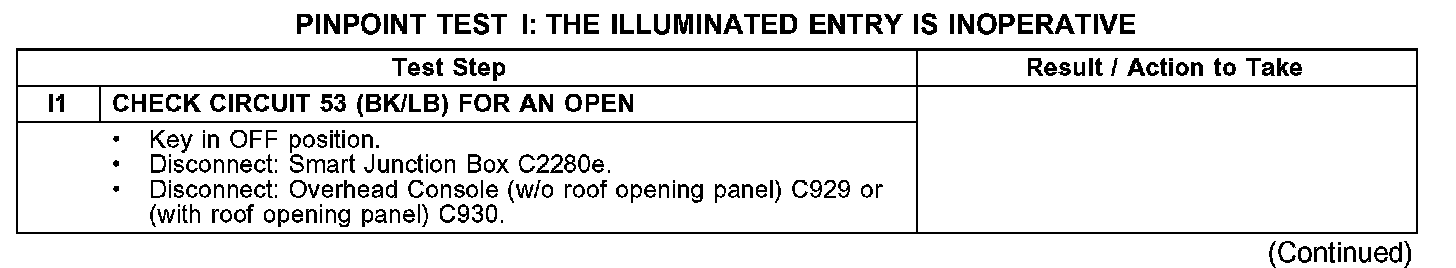

PINPOINT TEST I: THE ILLUMINATED ENTRY IS INOPERATIVE

I1:

I1-I5:

Normal Operation
Under normal operation, when the smart junction box (SJB) turns ON the interior lamps, it provides voltage to the individual lamps through circuit 53 (BK/LB). Ground for the lamps is provided through circuit 1205 (BK).

Possible Causes
- An open in circuit 53 (BK/LB)
- SJB
