Test D: The Puddle Lamps are Inoperative

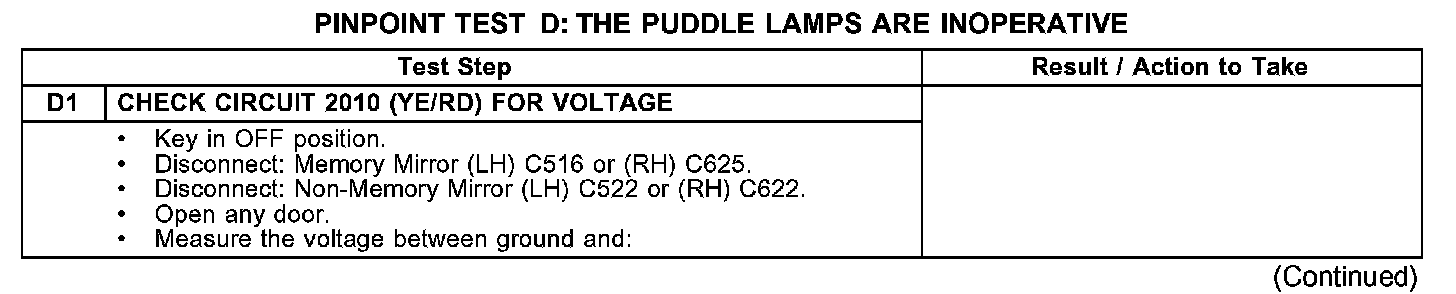

PINPOINT TEST D: THE PUDDLE LAMPS ARE INOPERATIVE

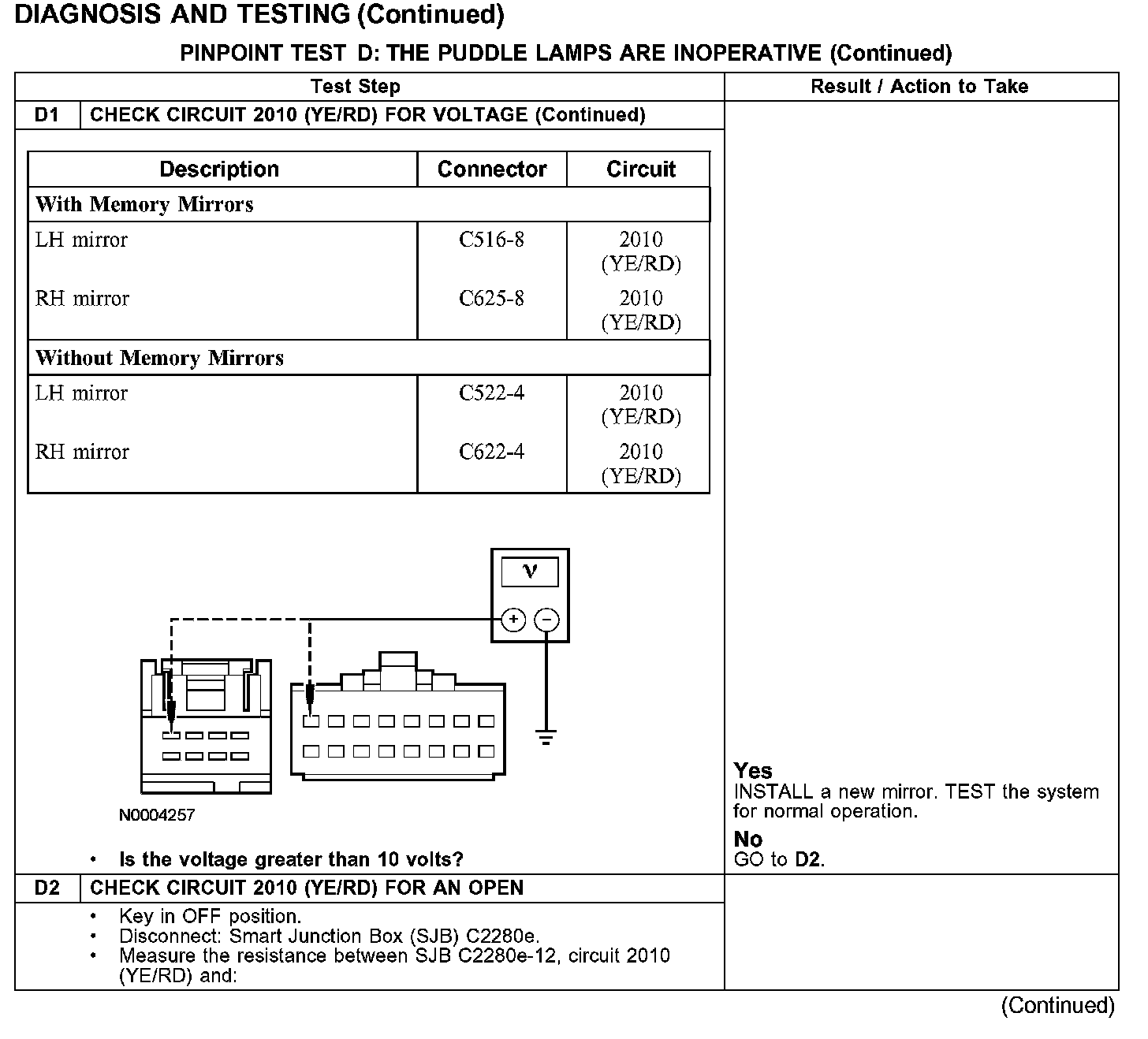

D1:

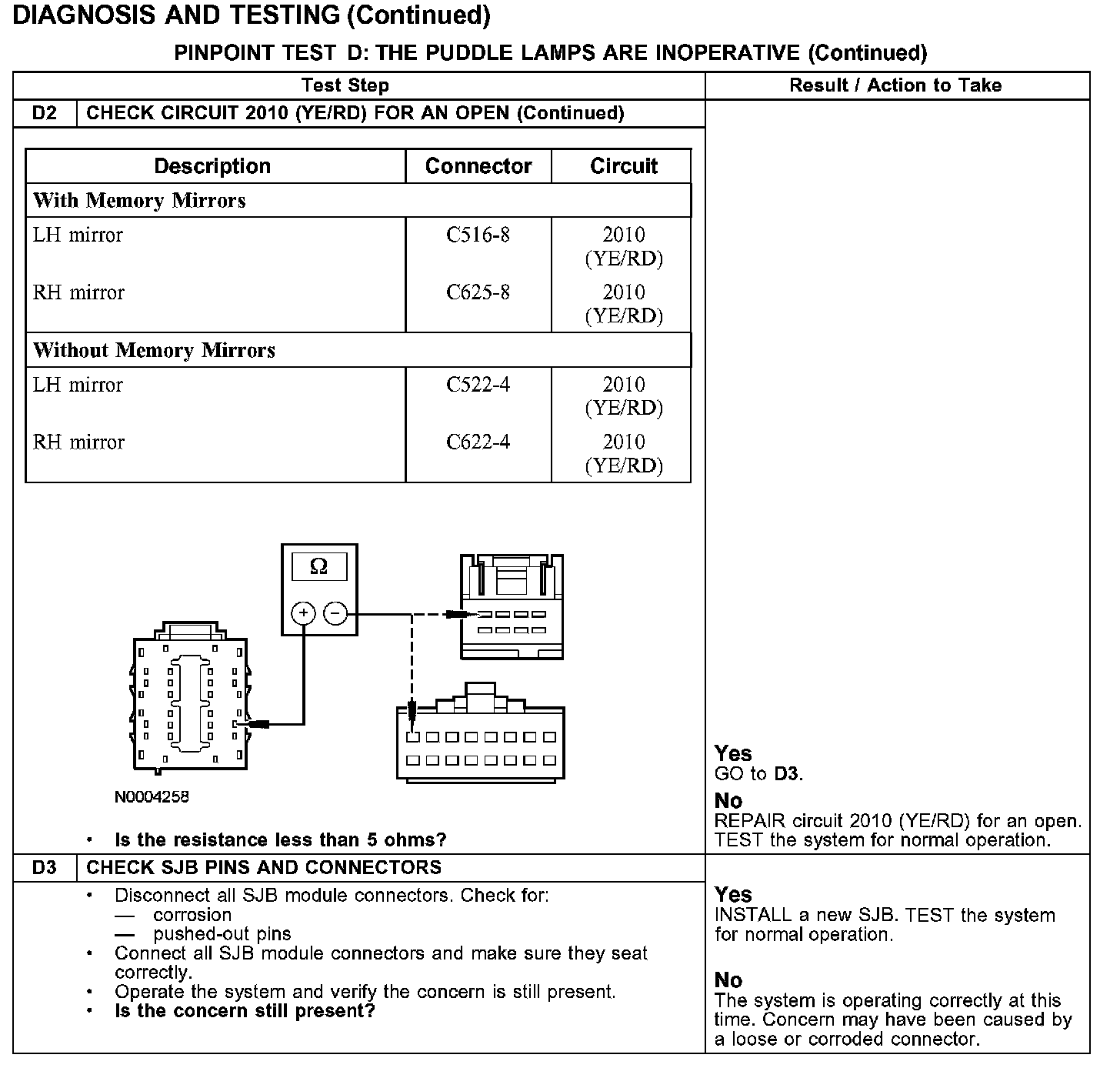

D1-D2:

D2-D3:

Normal Operation
Under normal operation, when any door, liftgate or decklid is ajar or the smart junction box (SJB) turns ON the puddle lamps, providing voltage to the individual lamps through circuit 2010 (YE/RD). Ground for the lamps is provided through circuit 1205 (BK).

Possible Causes
- An open in circuits 2010 (YE/RD) or 1205 (BK)
- Lamp
- Smart junction box (SJB)
